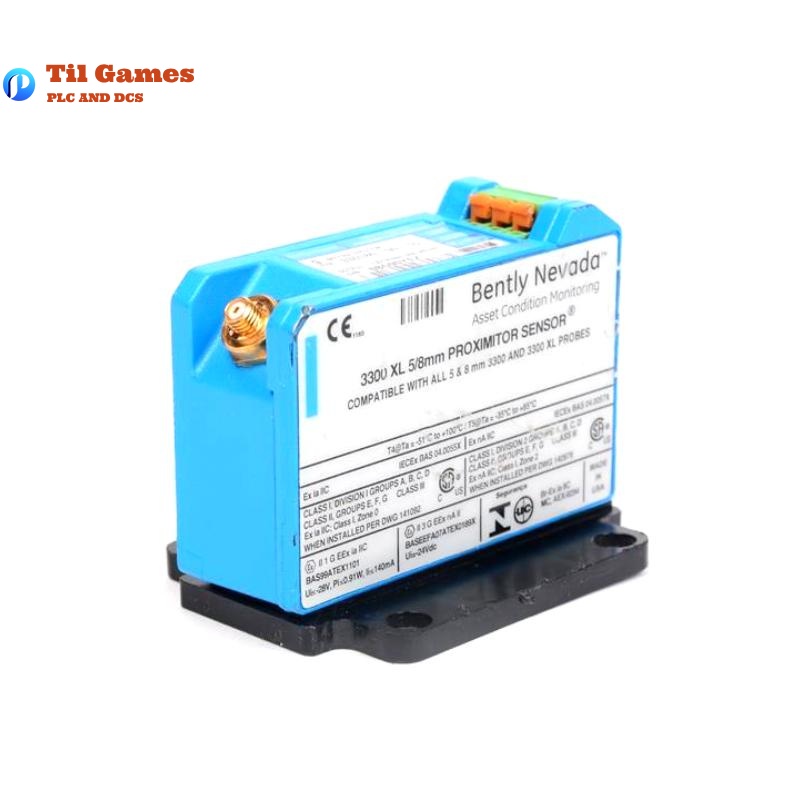

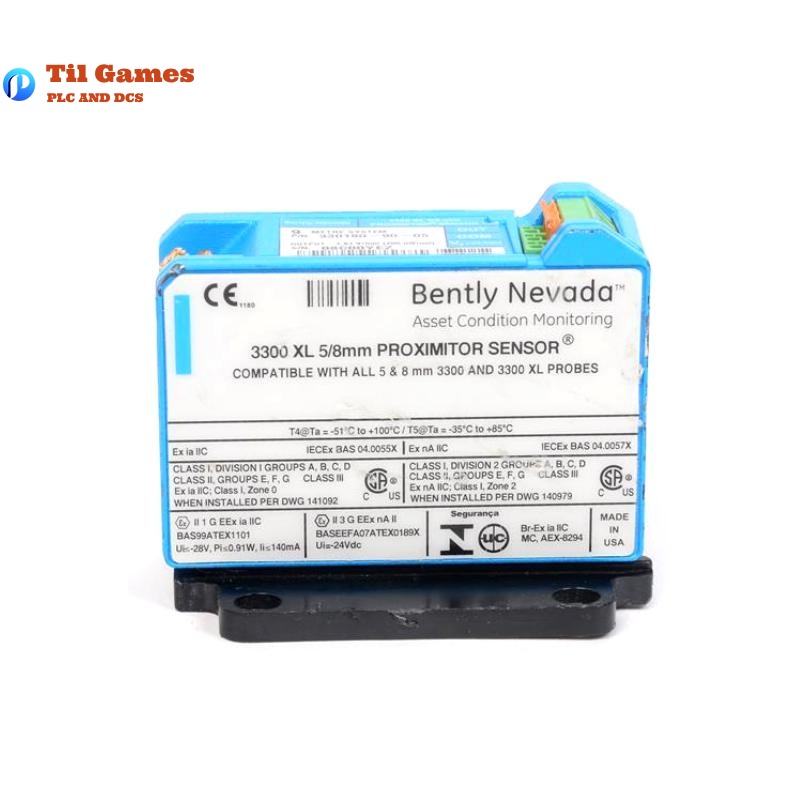

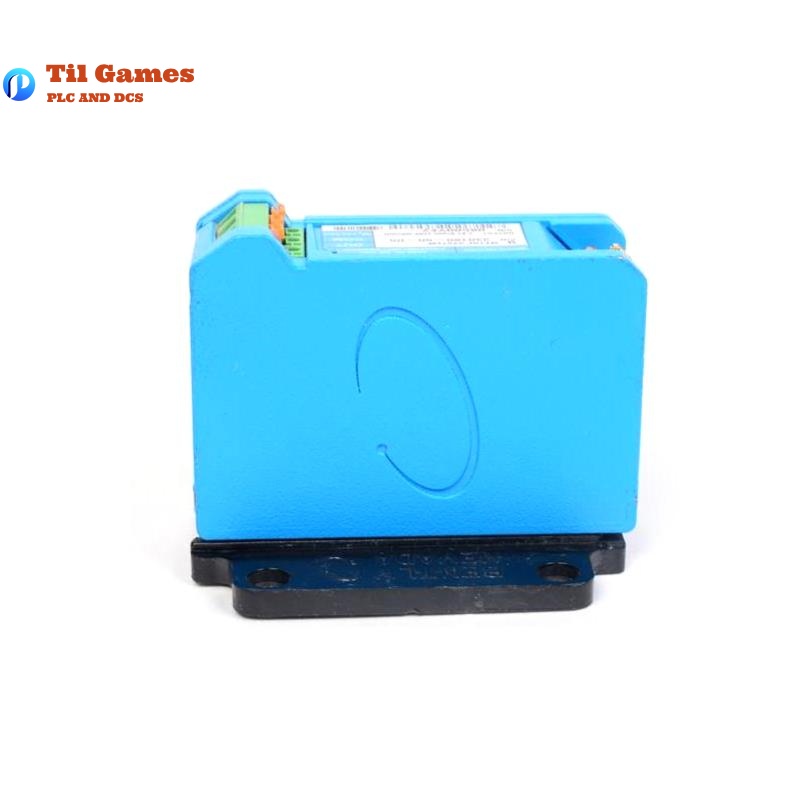

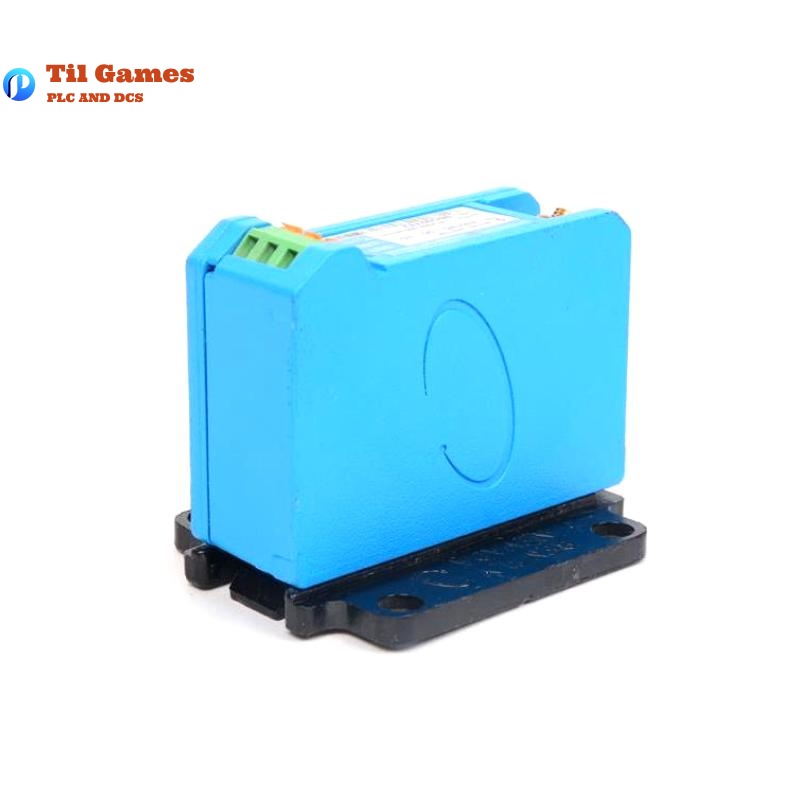

Bently Nevada 330180-90-01 3300 XL Proximitor Sensor

Frequently Asked Questions (FAQ)

Q1: What measurements does the 330180-90-01 support?
A1: It supports non-contact measurements of shaft vibration, axial position, and speed, ideal for fluid-film bearing machines.

Q2: What is the standard linear measurement range?
A2: The linear range is 0.25 mm to 2.3 mm (10 to 90 mils), output voltage from approx. -1 Vdc to -17 Vdc.

Q3: Is it compliant with API 670 standard?
A3: Yes, this model fully meets API 670 requirements for mechanical design, linear range, and accuracy.

Q4: Can it be used with older 3300 series components?
A4: Yes, it is physically and electrically compatible with non-XL 3300 5 mm and 8 mm systems, though performance is limited to the non-XL spec.

Q5: Does the 9-meter system lose accuracy in temperature fluctuations?
A5: Yes, it shows up to ±18% ISF variation and ±0.152 mm DSL error across extended temperature ranges.

Q6: Is the sensor immune to electromagnetic interference?
A6: Yes, the design provides excellent RFI/EMI resistance, suitable for fiberglass housings without additional shielding.

Q7: How are the connectors installed?
A7: The ClickLoc connectors require only finger-tight torque—once you hear a “click”, the connection is secure.

Q8: What is the weight of the system?
A8: Typical total weight is 0.7 kg, with the Proximitor sensor alone weighing approximately 246 g.

3300 XL Proximitor Sensor 330180-90-01 Bently Nevada

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
