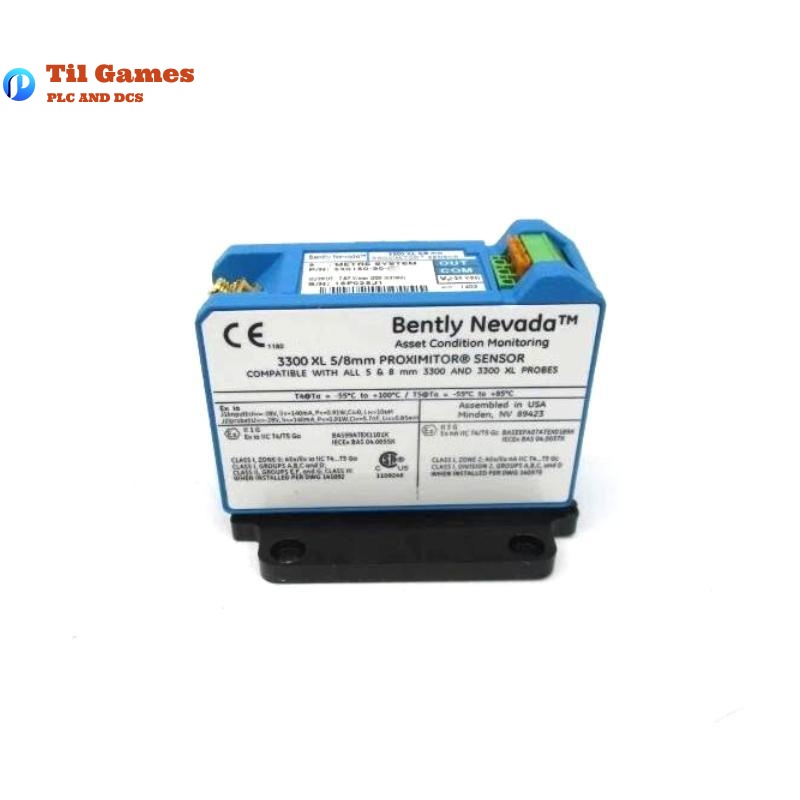

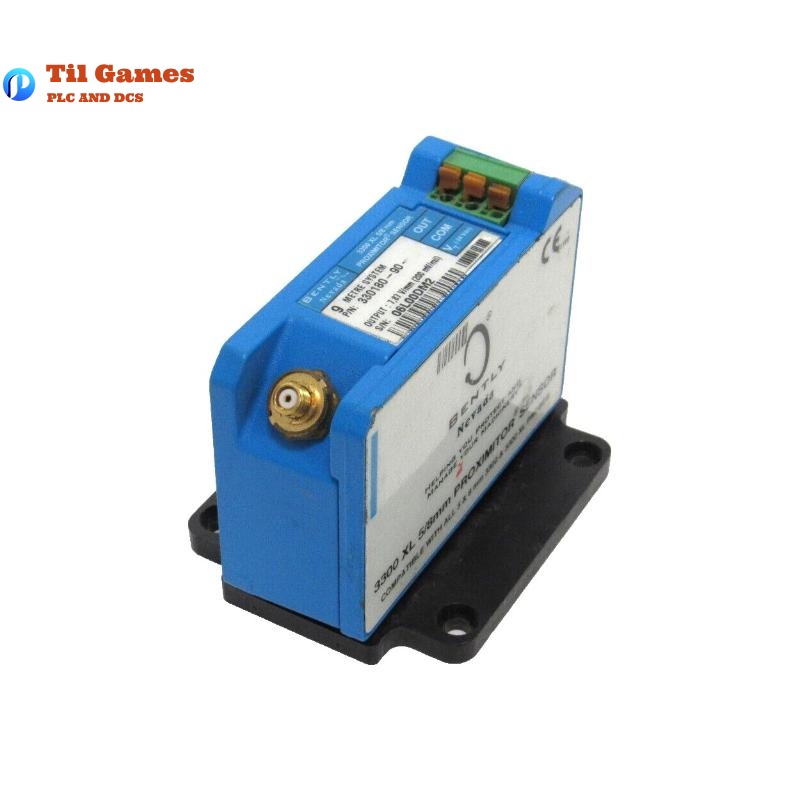

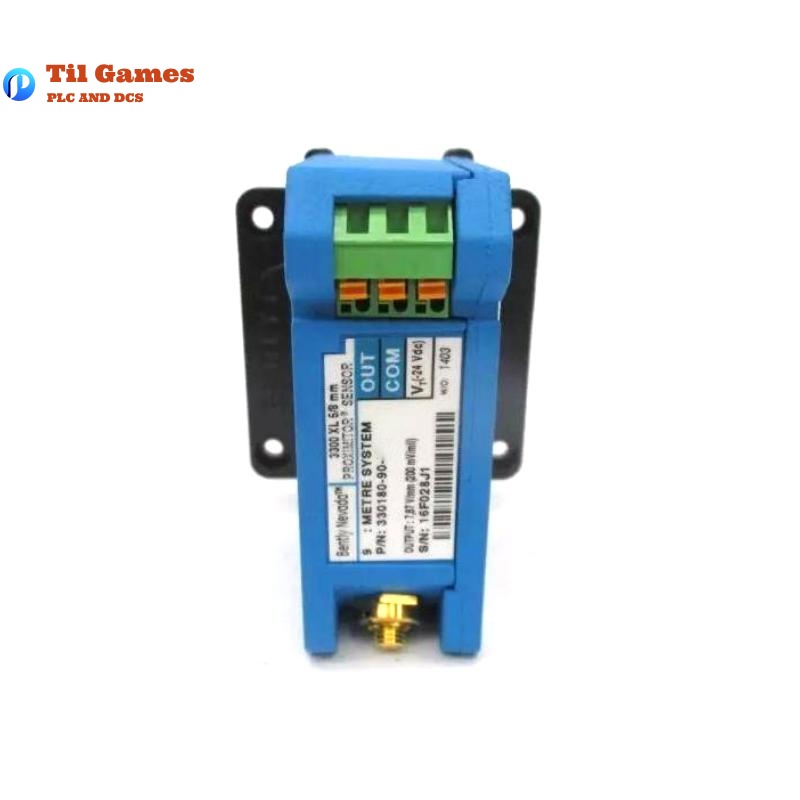

Bently Nevada 330180-90-CN 3300 XL Proximitor Sensor

FAQ

Q1: What is the total supported system length for model 330180-90-CN?
A1: This model supports a total system length of 9.0 meters.

Q2: Can the probe, extension cable, and sensor be replaced independently?
A2: Yes. All components are fully interchangeable without recalibration.

Q3: What shaft diameter is recommended for proper operation?
A3: The recommended minimum shaft diameter is 76.2 mm, but it supports as low as 50.8 mm.

Q4: What is the acceptable power supply range?
A4: The unit operates between -17.5 Vdc and -26 Vdc, typically at -24 Vdc.

Q5: What mounting options are supported?
A5: The sensor supports both DIN-rail and panel mounting for high-density applications.

Q6: Does the sensor have RFI/EMI protection?
A6: Yes, it is designed for high immunity against radio-frequency and electromagnetic interference and meets CE requirements.

Q7: Is it suitable for high-temperature applications?
A7: Yes, the ETR version of the probe and cable supports temperatures up to 218°C and 260°C respectively.

Q8: Is this sensor compliant with API 670 standards?
A8: Yes, the 3300 XL 8 mm system meets the API 670 standard for mechanical configuration, linearity, and thermal stability.

3300 XL Proximitor Sensor 330180-90-CN Bently Nevada
