Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-X0-00 145004-99 |

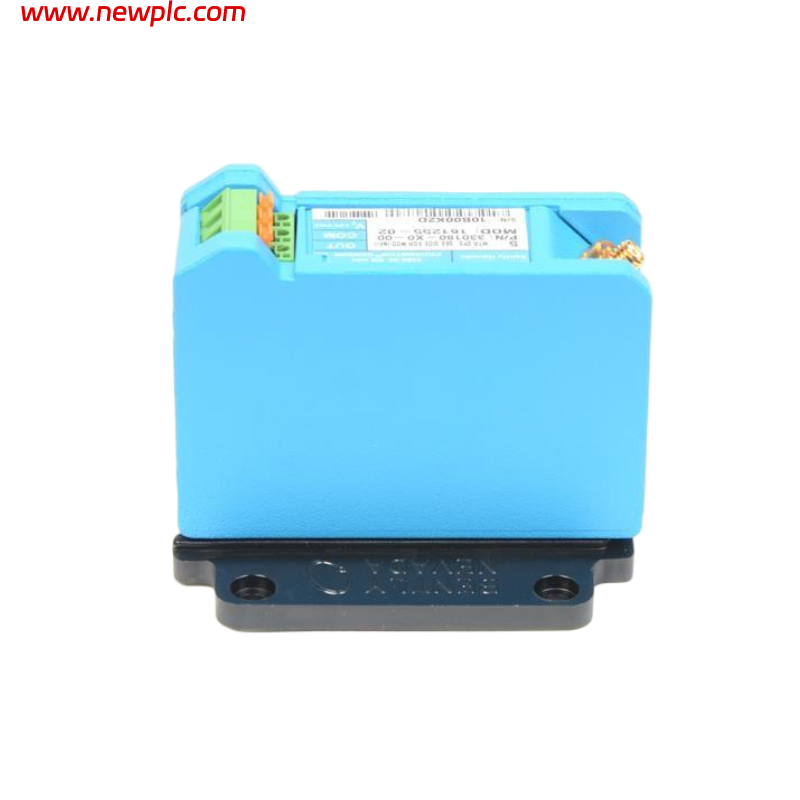

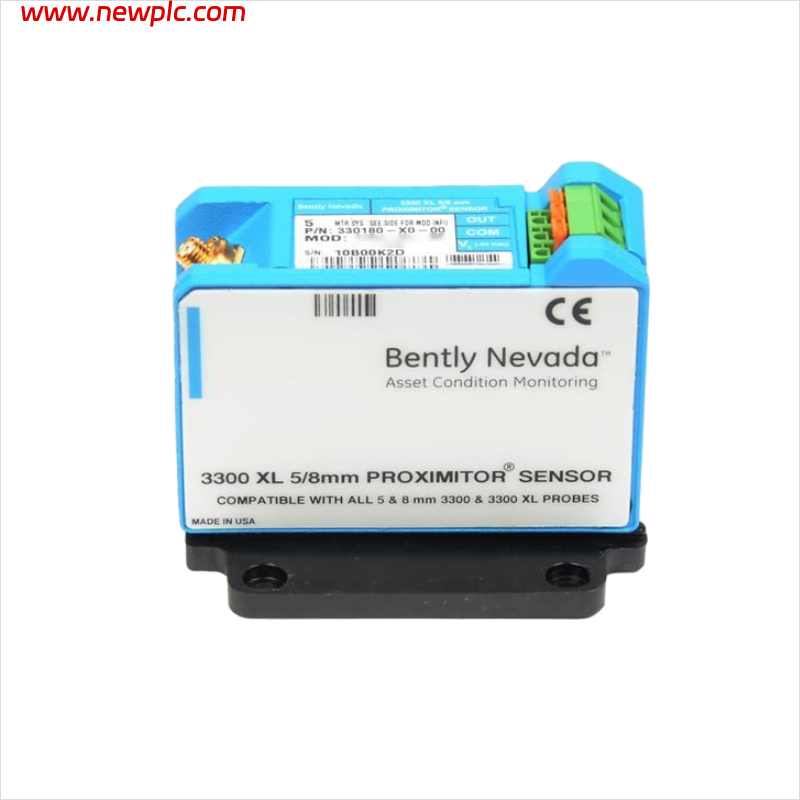

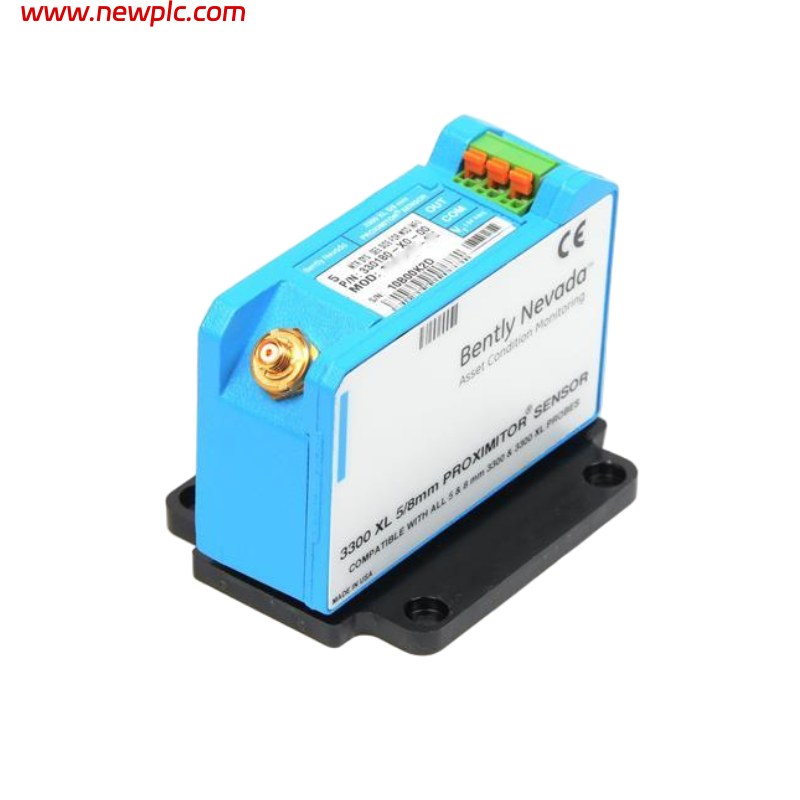

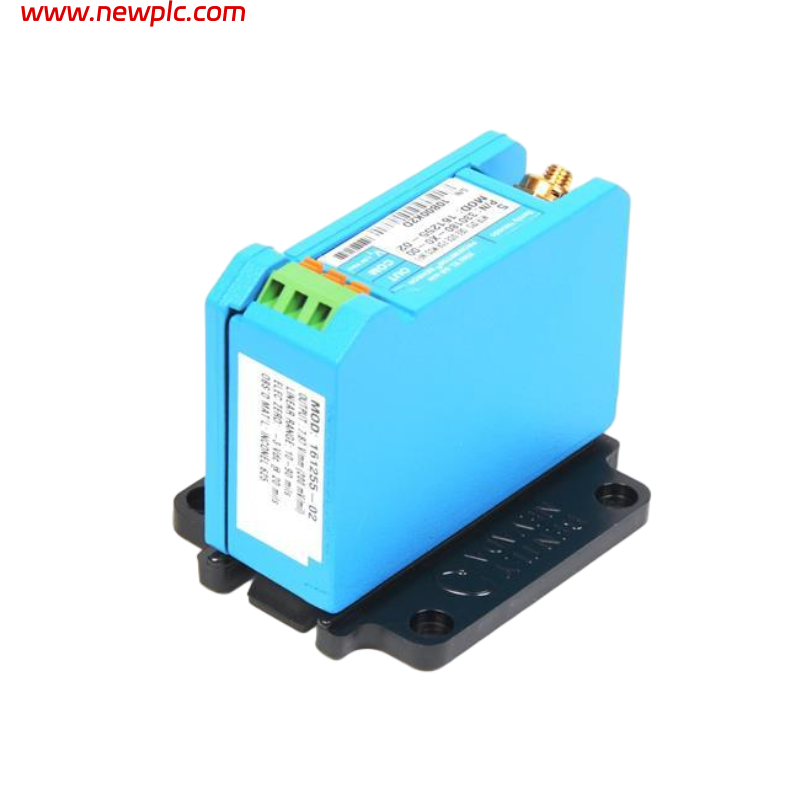

| Type | 8 mm Proximitor Sensor |
| Sensor Diameter | 8 mm |
| Measurement Range | 0 – 0.25 mm |
| Frequency Response | 0 – 10 kHz |
| Supply Voltage | 18 – 30 V DC |
| Sensitivity | 2.0 mV/μm |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -40°C to +125°C |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
| Connector Type | Standard Coaxial Connector |
| Protection Rating | IP67 |
FAQ
FAQ
Q1: What is the measurement range of the 330180-X0-00 sensor?
A: The measurement range is 0 to 0.25 mm.
Q2: What is the frequency response range?
A: The frequency response is 0 to 10 kHz.
Q3: What is the operating temperature range?
A: -40°C to +120°C.
Q4: What is the supply voltage?
A: 18 to 30 V DC.
Q5: What is the sensitivity of the sensor?
A: 2.0 mV/μm.
Q6: What are the dimensions and weight?
A: 81.3 x 35.1 x 63.5 mm, weight approximately 0.246 kg.
Q7: What type of connector does it use?
A: Standard coaxial connector.
Q8: What is the protection rating?
A: IP67, suitable for harsh environments.
