Technical Specifications
| Parameter Category | Specification |
|---|---|
| Model Number | 330180-X0-05 |

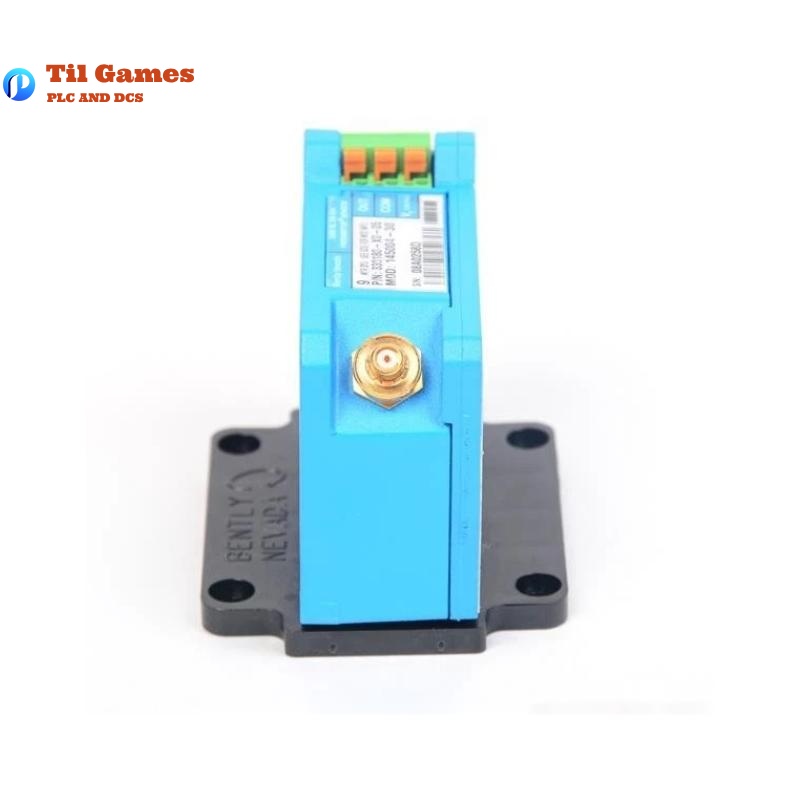

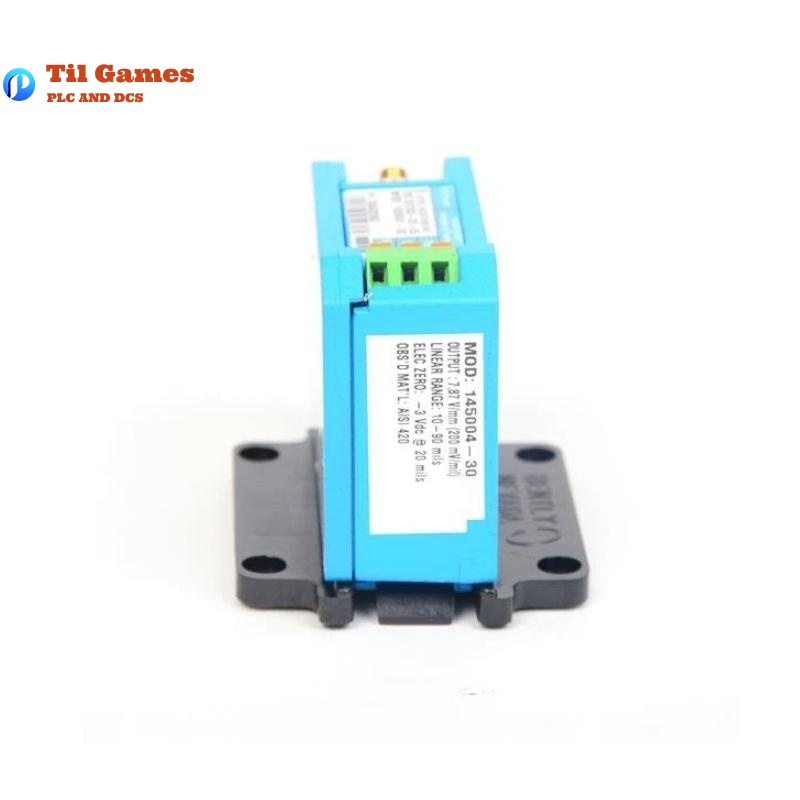

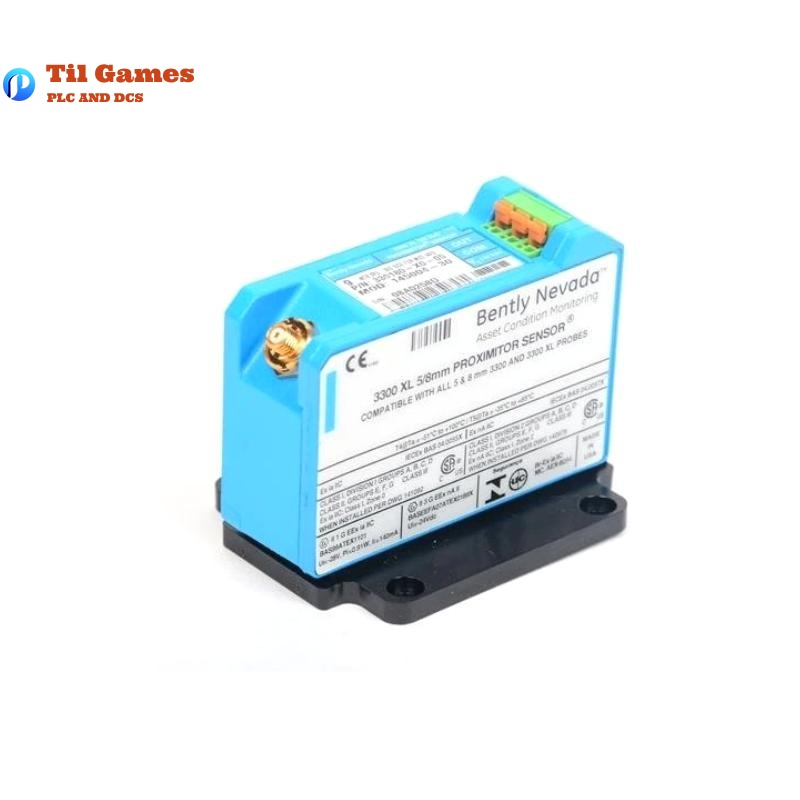

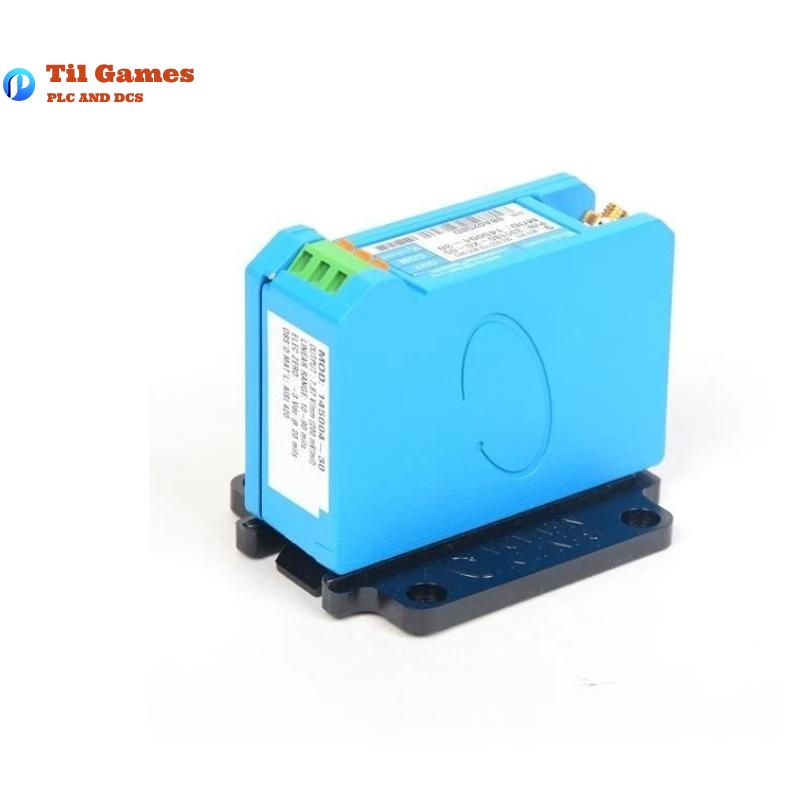

| Product Name | 3300 XL Proximitor Sensor |
| Power Supply | -17.5 Vdc to -26 Vdc (max 12 mA) |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (approximately 1.27 mm or 50 mils) |
| Incremental Scale Factor | 7.87 V/mm ±5% (5/1m), ±6.5% (9m system) |
| Dimensions (L x W x H) | 81.3 mm x 35.1 mm x 63.5 mm |
| Weight | 0.246 kg |
| Operating Temp (Probe) | -52°C to +177°C (standard); up to +218°C (ETR) |
| Operating Temp (Cable) | -52°C to +260°C |
| Operating Temp (Proximitor) | -52°C to +100°C |
| Storage Temp | -52°C to +105°C |
| Humidity Performance | <3% ASF change at 93% RH per IEC 68-2-3 |
| Minimum Target Size | 15.2 mm diameter (flat) |
| Recommended Shaft Diameter | ≥76.2 mm |
| Minimum Cable Bend Radius | 25.4 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the Proximitor Sensor be mixed with non-XL 3300 components?
A1: Yes, but system performance will be limited to the non-XL specification.
Q2: What is the default calibration material for this sensor?
A2: It is factory calibrated for AISI 4140 steel. Calibration to other materials is available upon request.
Q3: What is the acceptable power supply range?
A3: It operates from -17.5 Vdc to -26 Vdc.
Q4: What mounting options are available for the sensor?
A4: It supports both DIN rail and panel mounting with a 4-hole footprint.
Q5: Are connector protectors necessary?
A5: They are recommended for enhanced environmental protection.
Q6: What is the starting point of the linear range?
A6: Approximately 0.25 mm (10 mils), extending to 2.3 mm (90 mils).
Q7: Is the sensor resistant to RFI/EMI interference?
A7: Yes, it has high immunity and can be installed in fiberglass enclosures.
Q8: Is the product SIL certified?
A8: Yes, it meets SIL 2 (HFT=0) and SIL 3 (HFT=1) safety integrity levels.
