Technical Specifications
| Parameter | Specification |
|---|---|

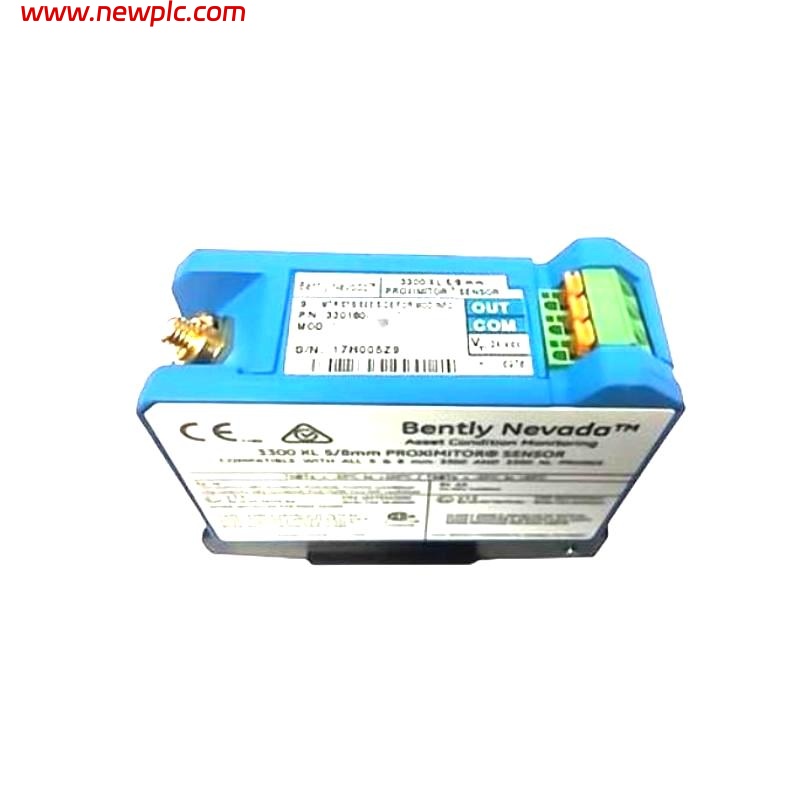

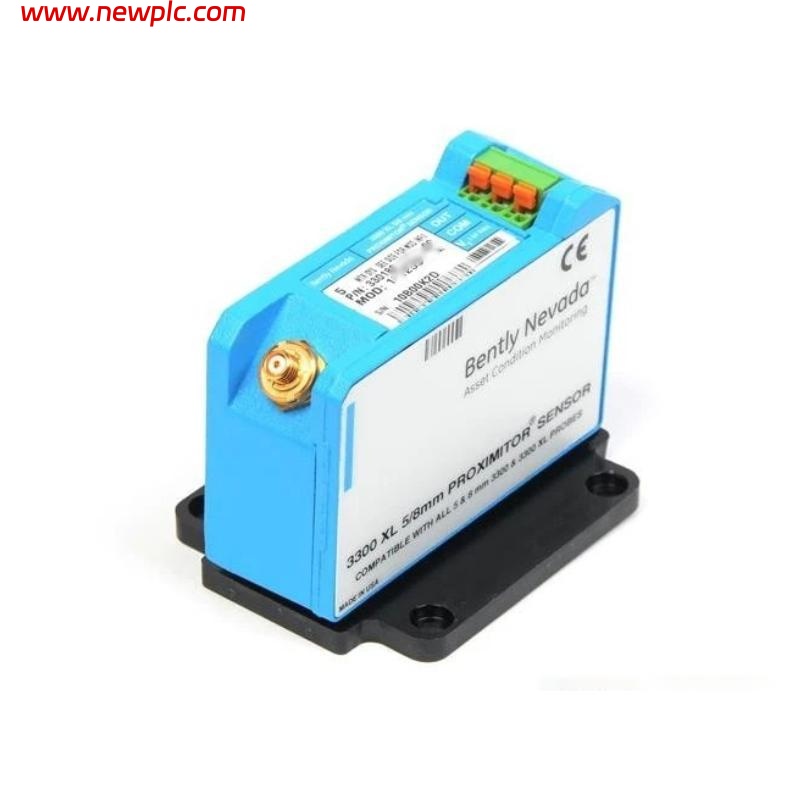

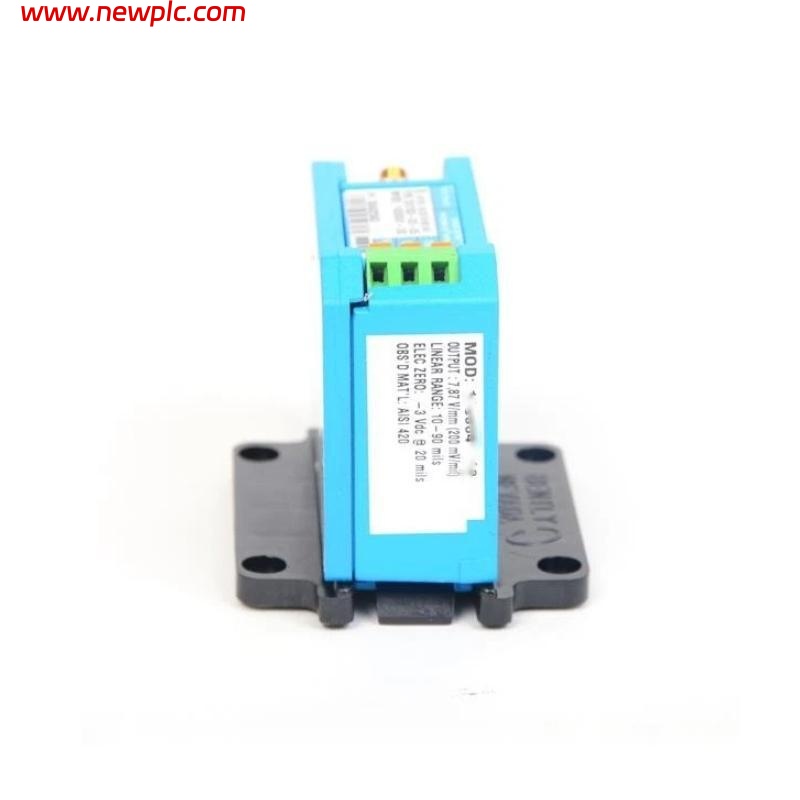

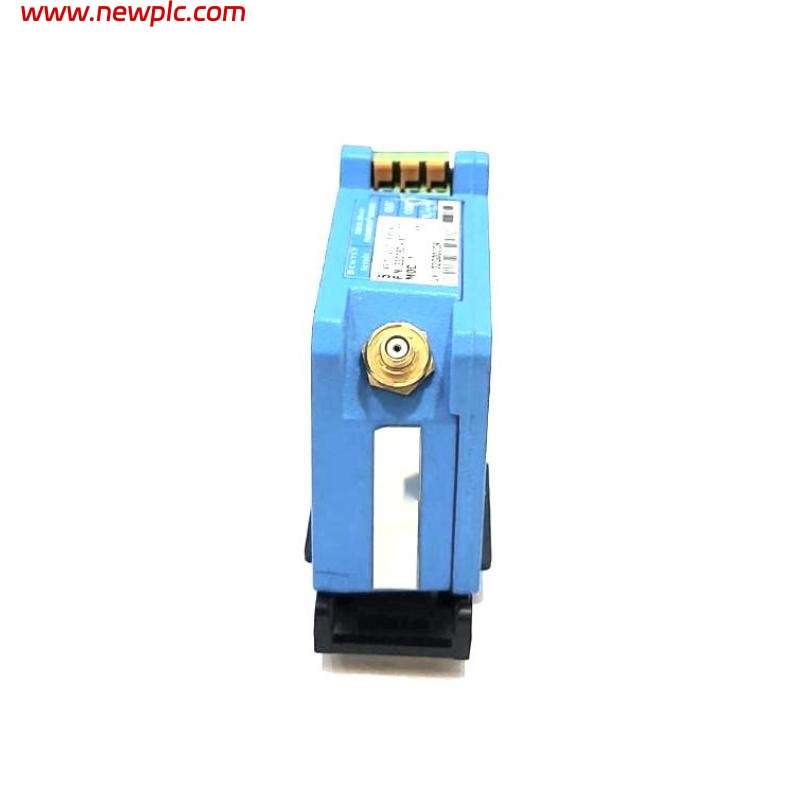

| Product Model | Bently Nevada 330180-X1-05 (143416-42) 3300 XL Proximitor Sensor |
| Input Compatibility | 3300 XL 8 mm probe and extension cable |
| Power Requirements | -17.5 Vdc to -26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm / 50 mils) |
| ISF Accuracy (5m System) | 7.87 V/mm (200 mV/mil) ±5% |
| DSL Accuracy (5m System) | ±0.025 mm (±1 mil) |
| Frequency Response | 0–10 kHz (+0/-3 dB), up to 305 m field wiring |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Insulation | FEP (Standard), PFA (Extended Temp) |
| Cable Pull Strength | 330 N (75 lbf) |
| Connector Type | ClickLoc, gold-plated |
| Operating Temp (Sensor) | -52°C to +100°C |
| Storage Temp (Sensor) | -52°C to +105°C |
| Operating Temp (Probe) | Standard: -52°C to +177°C / ETR: -52°C to +218°C |
| Operating Temp (Cable) | Standard: -52°C to +177°C / ETR: -52°C to +260°C |
| Cable Bend Radius | 25.4 mm |
| Sensor Housing Material | A308 Aluminum |
| Dimensions | 81.3 mm × 35.1 mm × 63.5 mm |
| Weight | 0.246 kg (Sensor only) |
| Certifications | FCC, CE, RoHS, ATEX, IECEx, SIL2/SIL3 |
| Hazardous Area Approval | Class I, Div 2, Zone 0/2; AEx/Ex ia, ec, nA IIC |
FAQ
FAQ
Q1: What is the main function of the Bently Nevada 330180 Proximitor Sensor?
A1: It measures static position and dynamic vibration by detecting the distance between the probe tip and a conductive target surface.
Q2: Is the 330180 Proximitor Sensor compatible with older 3300 series systems?
A2: Yes, it is both electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the recommended shaft diameter for proper performance?
A3: The minimum recommended shaft diameter is 76.2 mm to ensure accurate readings and minimal crosstalk.
Q4: What temperature conditions can the sensor withstand?
A4: The sensor operates from -52°C to +100°C, with the ETR probe extending the range up to +218°C.
Q5: Does this sensor require special installation tools?
A5: No, it uses SpringLoc terminal strips and ClickLoc connectors that do not require tools for installation.
Q6: What is the linear measurement range of the system?
A6: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
Q7: How is electrical interference minimized in this sensor?
A7: The sensor has enhanced EMI/RFI immunity and does not require metallic housings or shielded conduit.
Q8: What materials are used in the sensor construction?
A8: The sensor housing is made of A308 aluminum, and connectors are gold-plated brass or beryllium copper.
