Technical Specifications
| Parameter | Specification |
|---|---|

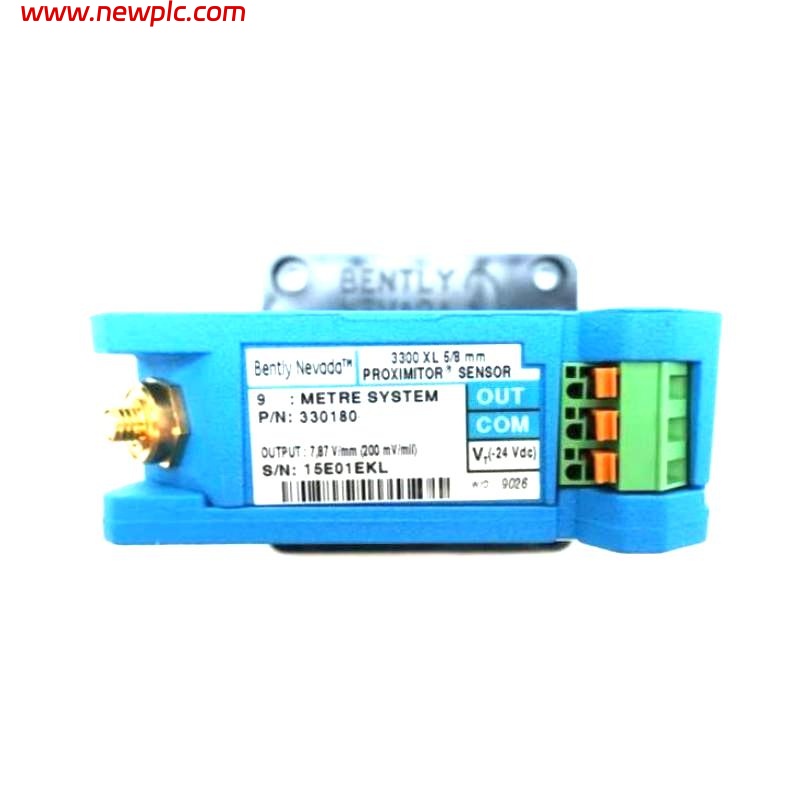

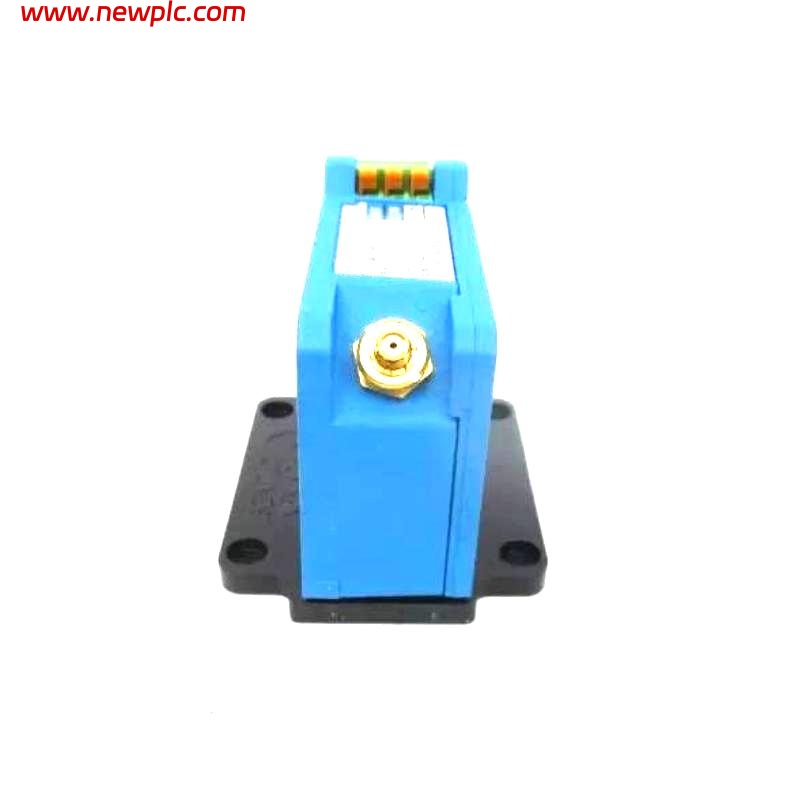

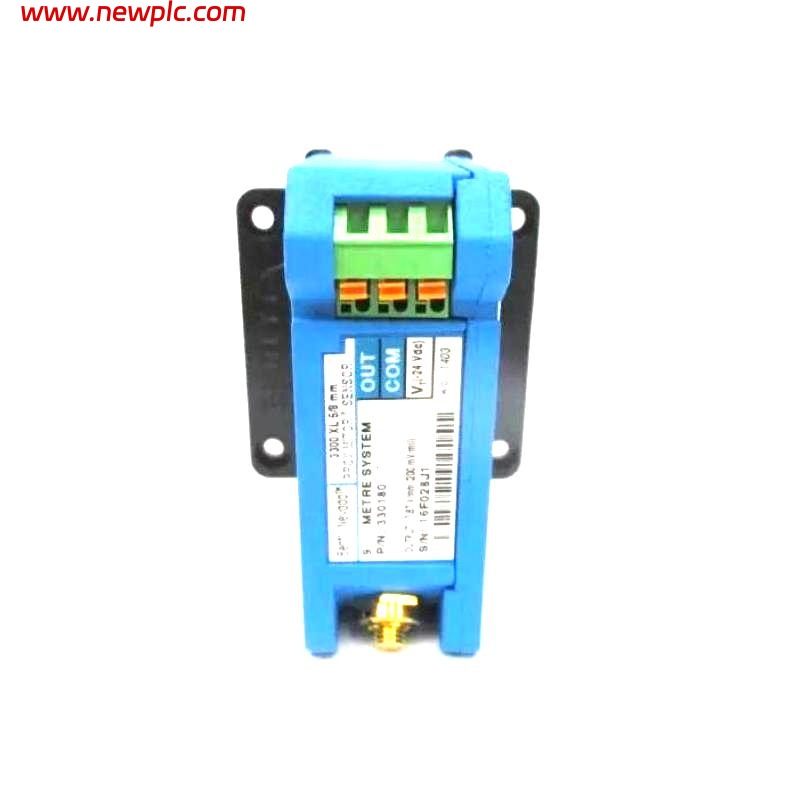

| Product Model | Bently Nevada 330180-X1-05 (3300 XL Proximitor Sensor) |
| System Type | Eddy current proximity transducer system |
| Measurement Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5 m system), ±6.5% (9 m system) |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max |
| Output Resistance | 50 Ω |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) with max 305 m field wiring |
| Operating Temperature Range | -52°C to +100°C (Sensor), up to +177°C (Standard Probe), +218°C (ETR Probe) |
| Storage Temperature Range | -52°C to +105°C |
| Humidity Resistance | ≤3% change in scale factor at 93% RH (IEC 68-2-3 for 56 days) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Connector Type | ClickLoc gold-plated brass or beryllium copper |
| Field Wiring | 0.2 to 1.5 mm² (16–24 AWG), shielded triad cable recommended |
| Recommended Radial Vibration Gap | -9 VDC ≈ 1.27 mm (50 mils) |
| Minimum Shaft Diameter | 50.8 mm (recommended: 76.2 mm) |
| Environmental Approvals | CSA, ATEX, IECEx, cNRTLus, CE, FCC, RoHS |
| Functional Safety | SIL 2 (HFT = 0), SIL 3 (HFT = 1) |
| Dimensions (Proximitor Sensor) | 81.3 mm × 35.1 mm × 63.5 mm |
| Weight (Proximitor Sensor) | 0.246 kg |
FAQ
FAQ
Q1: What is the primary function of the 330180-X1-05 Proximitor Sensor?
A1: It measures the distance (static position) and vibration (dynamic motion) between a probe and a conductive target surface.
Q2: Can this Proximitor Sensor be used with older 3300 series components?
A2: Yes, it is fully backward-compatible and interchangeable with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the recommended gap setting for radial vibration monitoring?
A3: The recommended gap setting is -9 VDC, which corresponds to approximately 1.27 mm (50 mils).
Q4: What kind of environmental certifications does the 330180-X1-05 have?
A4: It complies with CSA, ATEX, IECEx, CE, RoHS, and FCC regulations.
Q5: Is this sensor suitable for high-temperature environments?
A5: Yes, the ETR version supports up to +218°C for the probe and +260°C for the cable.
Q6: What is the typical output scale factor of the system?
A6: The system outputs 7.87 V/mm (200 mV/mil) ±5% to ±6.5%, depending on the cable length.
Q7: Can the connectors be tightened without tools?
A7: Yes, the ClickLoc connectors are designed to click when finger-tight and do not require tools.

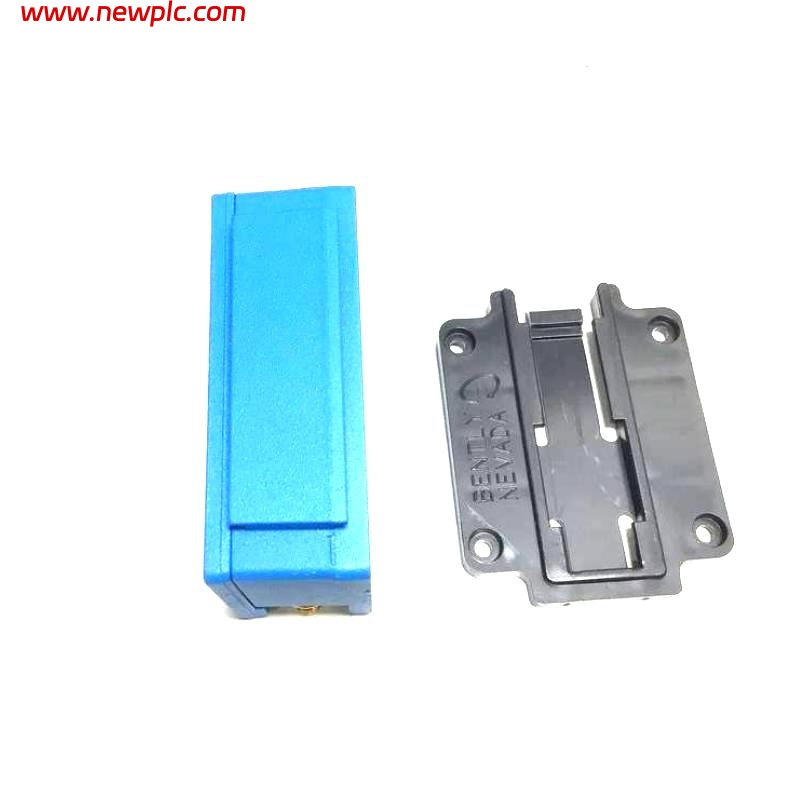

Q8: What are the installation mounting options?
A8: The sensor supports both DIN-rail and panel mount configurations with standard 4-hole footprints.
