Technical Specifications
| Parameter | Specification |
|---|---|

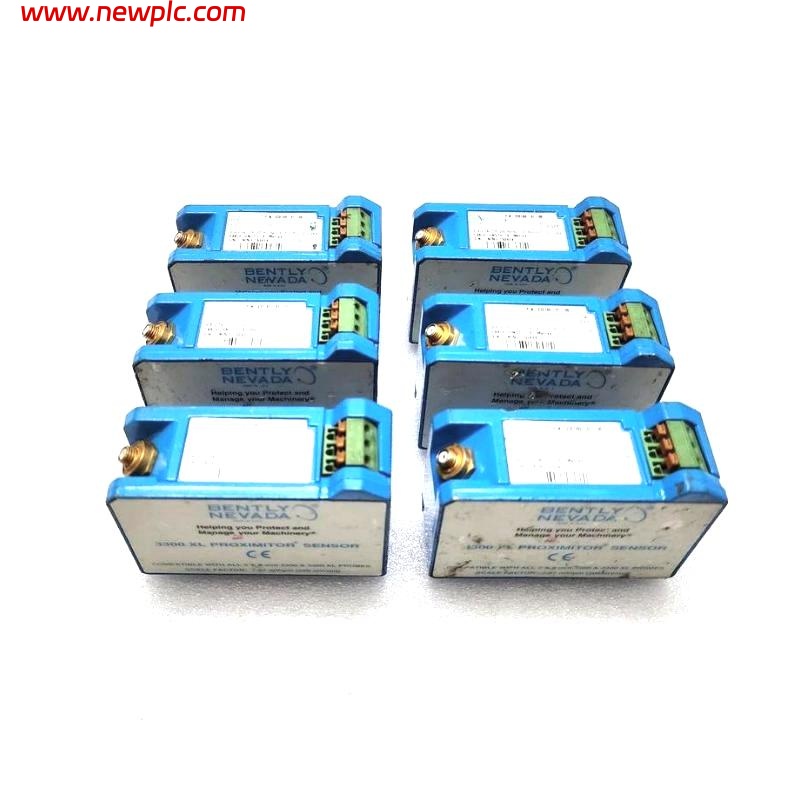

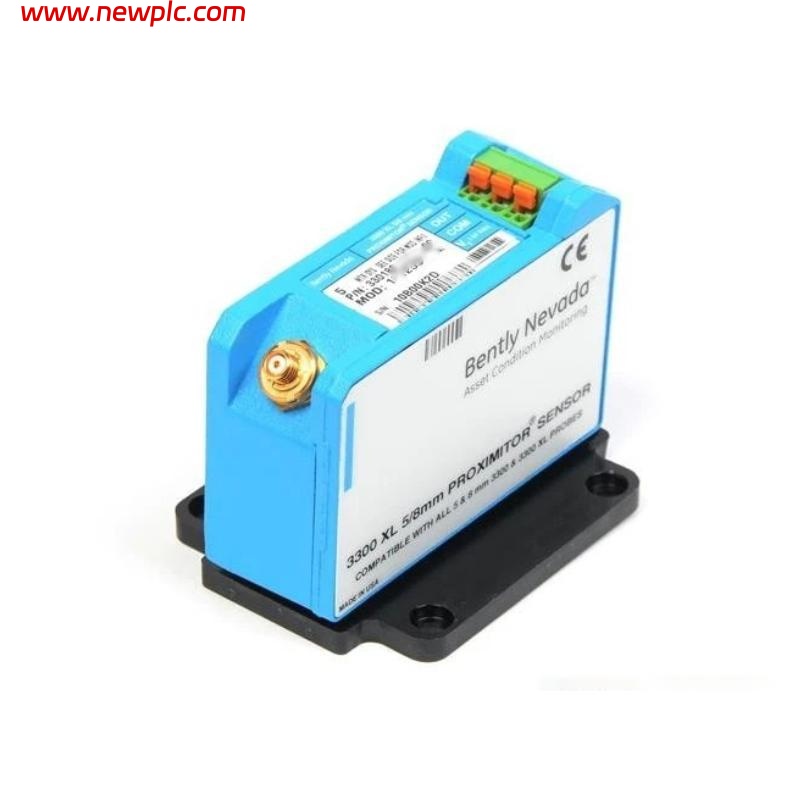

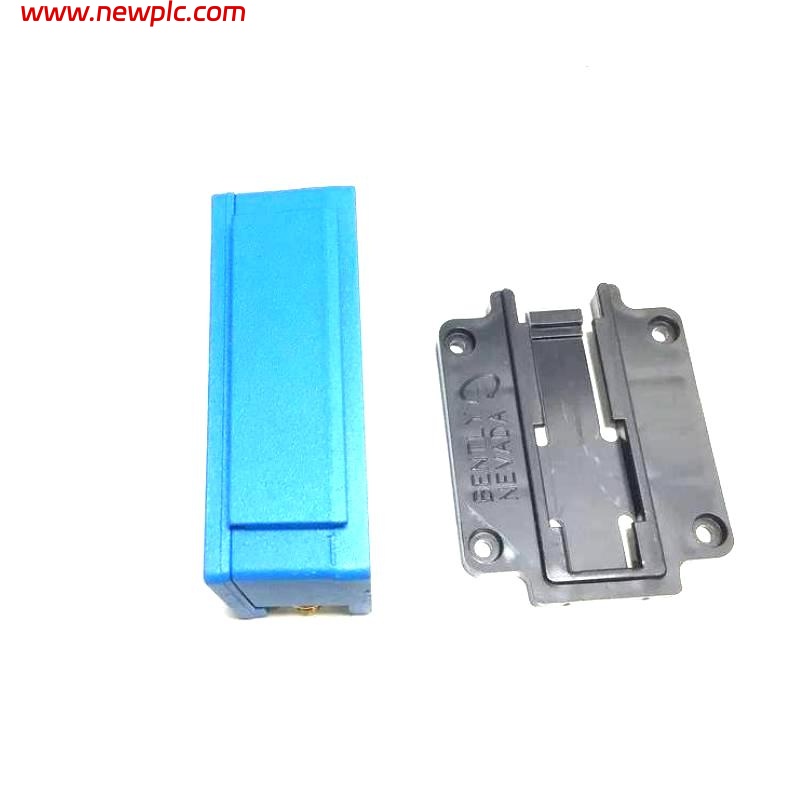

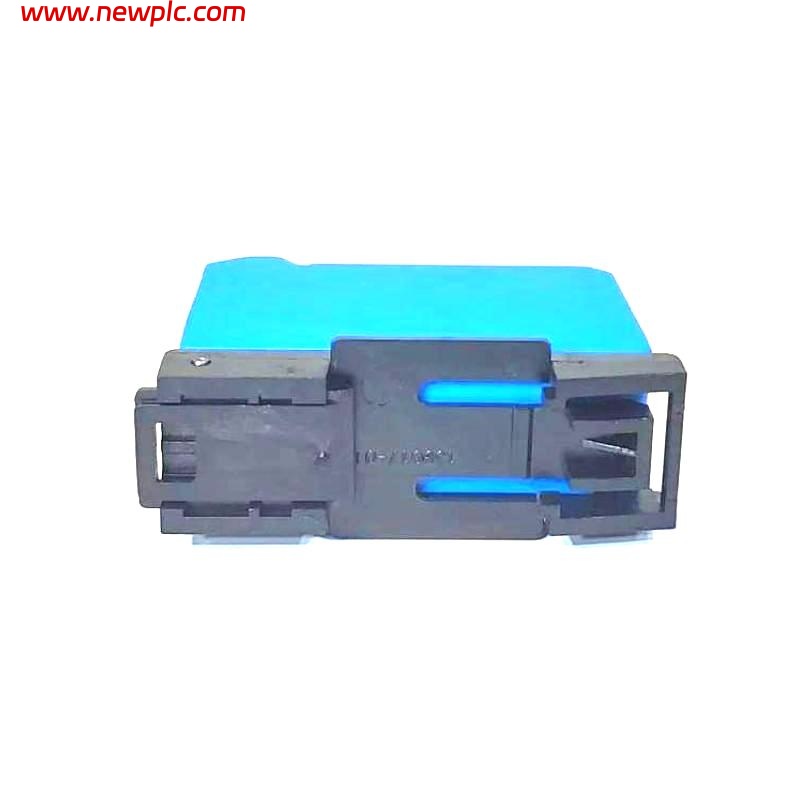

| Model | Bently Nevada 330180-X1-CN 143416-42 3300 XL Proximitor Sensor |
| Compatible Probes | 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max consumption (-23 Vdc to -26 Vdc with barriers) |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (5 m/1 m system), ±6.5% (9 m system) |
| Deviation from Best Fit Straight Line | ±0.025 mm (±1 mil) for 5 m/1 m system, ±0.038 mm (±1.5 mil) for 9 m system |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB (up to 305 m field wiring) |
| Minimum Target Size | 15.2 mm diameter (flat target) |
| Shaft Diameter | Min 50.8 mm, Recommended Min 76.2 mm |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated (standard) or PFA insulated (ETR) |
| Tensile Strength | 330 N (probe case to lead), 270 N (lead to connector) |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Proximitor Sensor Material | A308 Aluminum |
| Operating Temperature (Probe) | -52°C to +177°C (Standard), -52°C to +218°C tip / +260°C cable (ETR) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Humidity | ≤3% ASF change at 93% RH (56 days) |
| Dimensions (Sensor) | 81.3 x 35.1 x 63.5 mm |
| Weight (Sensor) | 0.246 kg |
FAQ
FAQ
Q1: Which probes are compatible with the 330180-X1-CN 143416-42 sensor?
A1: It supports 3300-series 5 mm and 3300 XL 8 mm non-contact eddy current probes with extension cables.
Q2: What is the recommended installation gap?
A2: The recommended gap is approximately 1.27 mm (50 mils) with an output voltage of around -9 Vdc.
Q3: What is the linear range of this model?
A3: The linear range is 2 mm (80 mils).
Q4: What is the operating temperature range?
A4: Standard probe: -52°C to +177°C; ETR probe: up to +218°C (tip) and +260°C (cable). Proximitor sensor: -52°C to +100°C.
Q5: How does the product perform in high humidity?
A5: In 93% relative humidity for 56 days, the Average Scale Factor change is within 3%.
Q6: What is the frequency response range?
A6: The frequency response is 0 to 10 kHz with +0 / -3 dB variation.
Q7: What are the dimensions and weight of the sensor?
A7: Dimensions are 81.3 x 35.1 x 63.5 mm, and weight is 0.246 kg.
Q8: Is it certified for hazardous area use?
A8: Yes, it has ATEX, IECEx, CSA and other hazardous area certifications for Zone 0, Zone 2, and equivalent classifications.
