Technical Specifications
| Parameter | Specification |
|---|---|

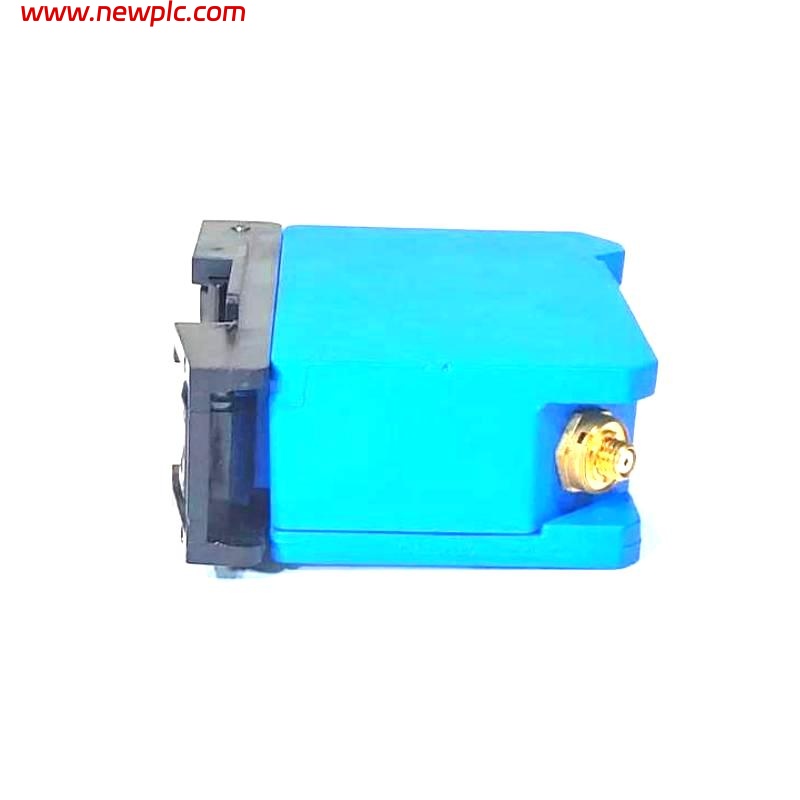

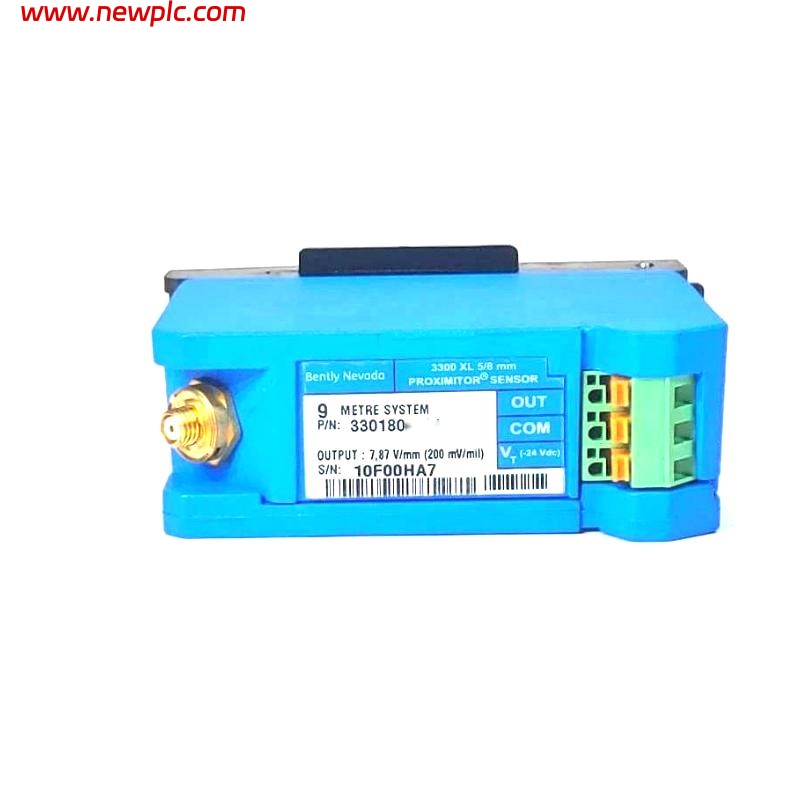

| Model | Bently Nevada 330180-X1-CN 143416-49 3300 XL Proximitor Sensor |
| System Compatibility | Accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max consumption (-23 Vdc to -26 Vdc with barriers) |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | -9 Vdc (~1.27 mm / 50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5 m / 1 m system), ±6.5% (9 m system) |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB (up to 305 m field wiring) |
| Minimum Target Size | 15.2 mm diameter flat target |
| Shaft Diameter | Minimum 50.8 mm (recommended ≥76.2 mm) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75 Ω triaxial, FEP insulated (PFA for ETR) |
| Tensile Strength | 330 N (probe case to probe lead), 270 N (probe lead to extension cable connector) |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Dimensions (Proximitor Sensor) | 81.3 x 35.1 x 63.5 mm |
| Weight (Proximitor Sensor) | 0.246 kg |
| Operating Temperature | Probe: -52°C to +177°C (Standard), up to +218°C (ETR); Proximitor Sensor: -52°C to +100°C |
| Storage Temperature | Probe: -52°C to +177°C (Standard), up to +260°C (ETR); Proximitor Sensor: -52°C to +105°C |
| Relative Humidity | ≤93% |
| Compliance | API 670, CE Mark, RoHS 2011/65/EU, SIL 2/3 capable |
FAQ
FAQ
Q1: What is the primary function of the 330180-X1-CN Proximitor Sensor?
A1: It converts the signal from the proximity probe into a voltage output proportional to the distance between the probe tip and a conductive target surface, enabling vibration and position measurements.
Q2: Is this sensor compatible with both 5 mm and 8 mm probes?
A2: Yes, it accepts both 3300-series 5 mm probes and 3300 XL 8 mm probes with their respective extension cables.
Q3: What is the recommended installation gap for radial vibration measurements?
A3: The recommended gap is approximately 1.27 mm (50 mils), corresponding to a -9 Vdc bias.
Q4: Can this Proximitor Sensor be used in hazardous areas?
A4: Yes, it has CSA, ATEX, and IECEx approvals for use in various hazardous environments when installed per the specified drawings.
Q5: What is the typical operating temperature range for the standard probe and Proximitor Sensor?
A5: Standard probe: -52°C to +177°C; Proximitor Sensor: -52°C to +100°C.
Q6: What is the frequency response capability of this sensor?
A6: It supports a frequency response of 0 to 10 kHz with +0 / -3 dB tolerance.
Q7: Does the Proximitor Sensor meet API standards?
A7: Yes, it meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
Q8: What is the weight and size of the Proximitor Sensor?
A8: The dimensions are 81.3 x 35.1 x 63.5 mm, and the weight is 0.246 kg.
