Technical Specifications
| Parameter | Description |
|---|---|

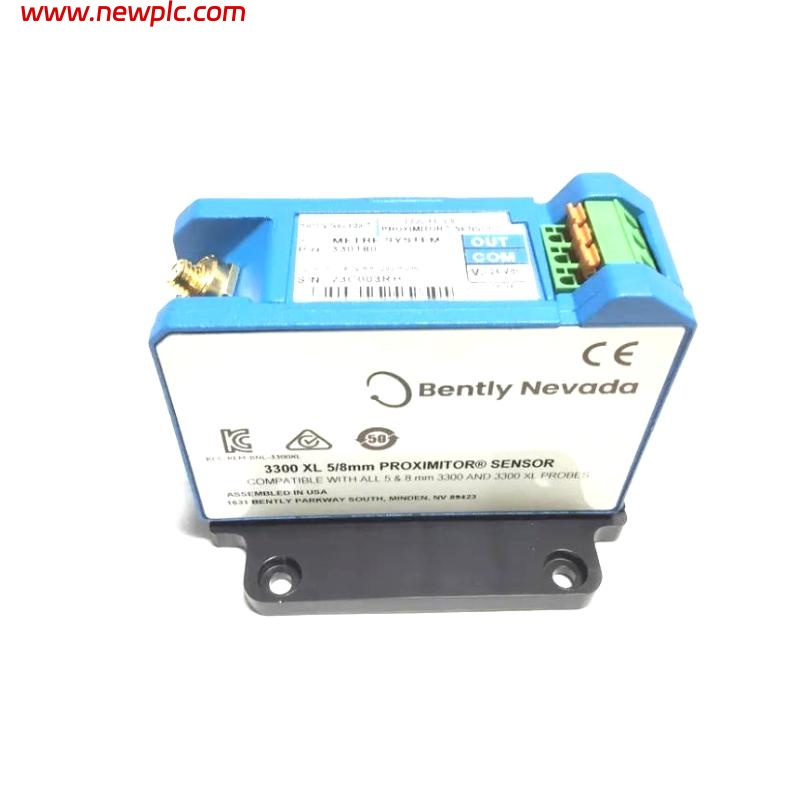

| Manufacturer | Bently Nevada 330180‑X2‑00 Proximitor Sensor |
| Product Model | 330180‑X2‑00 |
| Internal Reference | 181634‑02 |
| Product Type | 3300 XL Series Proximitor Sensor |
| Measurement Principle | Non‑contact eddy‑current signal conditioning for displacement and vibration measurement |
| Compatible Probes | Works with 3300 and 3300 XL proximity probes (5 mm and 8 mm types) |
| Output Signal | Analog proportional output (signal conditioning) |
| Power Supply Requirement | −17.5 V DC to −26 V DC (typical industrial supply) |
| Supply Current | Up to ~12 mA maximum under normal operation |
| Output Impedance | ~50 Ω |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature Range | Typically −51 °C to +100 °C |
| Housing Material | A308 aluminum proximitor enclosure |
| Connector Type | Standard proximitor electrical interface |
| Mounting Method | Panel mount or DIN rail (system dependent) |
| Dimensions | Approx. 102.2 mm × 124 mm × 126 mm (as listed for this variant) |
| Weight | ~0.20 kg |
| Operating Environment | Industrial rotating machinery condition monitoring |
| System Compatibility | Part of Bently Nevada 3300 XL transducer system |
FAQ
FAQ
Q1: What is the Bently Nevada 330180‑X2‑00 (181634‑02) used for?
A1: It is a proximitor sensor module that conditions raw signals from eddy‑current proximity probes and provides an analog output for vibration and shaft displacement monitoring.
Q2: What does the internal reference 181634‑02 indicate?
A2: It is a manufacturer’s internal configuration or modification code for this specific proximitor sensor variant.
Q3: Which proximity probes are compatible with this proximitor sensor?
A3: It supports both 3300 and 3300 XL series 5 mm and 8 mm diameter proximity probes.
Q4: What types of outputs does this proximitor provide?
A4: It provides an analog conditioned signal proportional to the measured gap/displacement of the connected probe.
Q5: What power supply does this proximitor sensor require?
A5: It typically operates from a DC supply between −17.5 V DC and −26 V DC, which is standard for 3300 XL proximitor systems.
Q6: What environments can this sensor operate in?
A6: It is designed for rugged industrial environments and can operate in temperatures from approximately −51 °C up to +100 °C.
Q7: What are the physical dimensions and weight of this proximitor sensor?
A7: This variant has an approximate footprint of 102.2 mm × 124 mm × 126 mm and weighs around 0.20 kg.
Q8: How is this proximitor typically installed?
A8: It is generally mounted on a panel or DIN rail inside a control or monitoring cabinet as part of a machinery protection or condition monitoring system.
