Technical Specifications
| Parameter | Description |
|---|---|

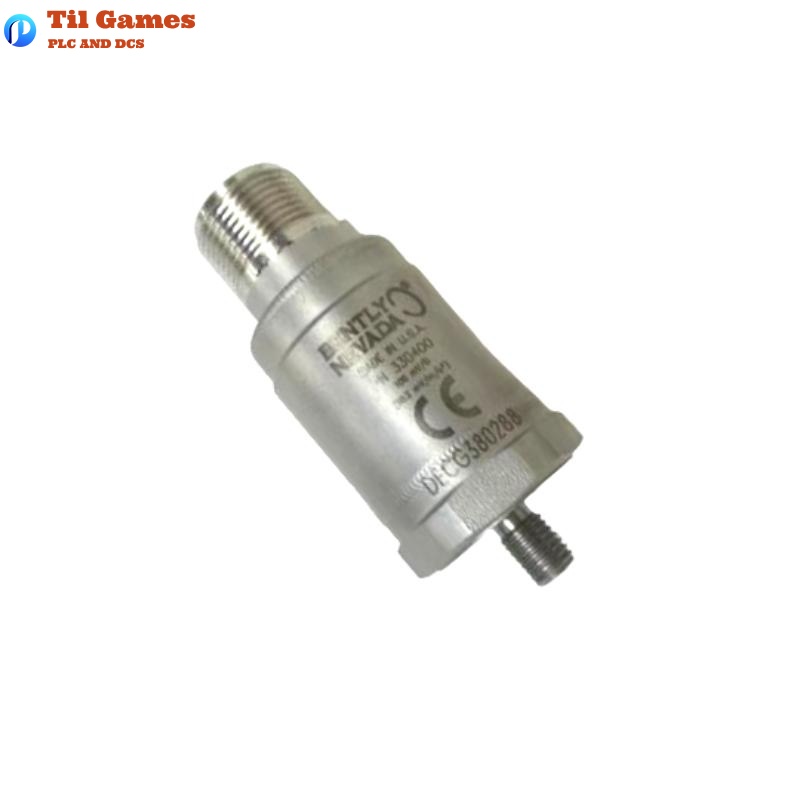

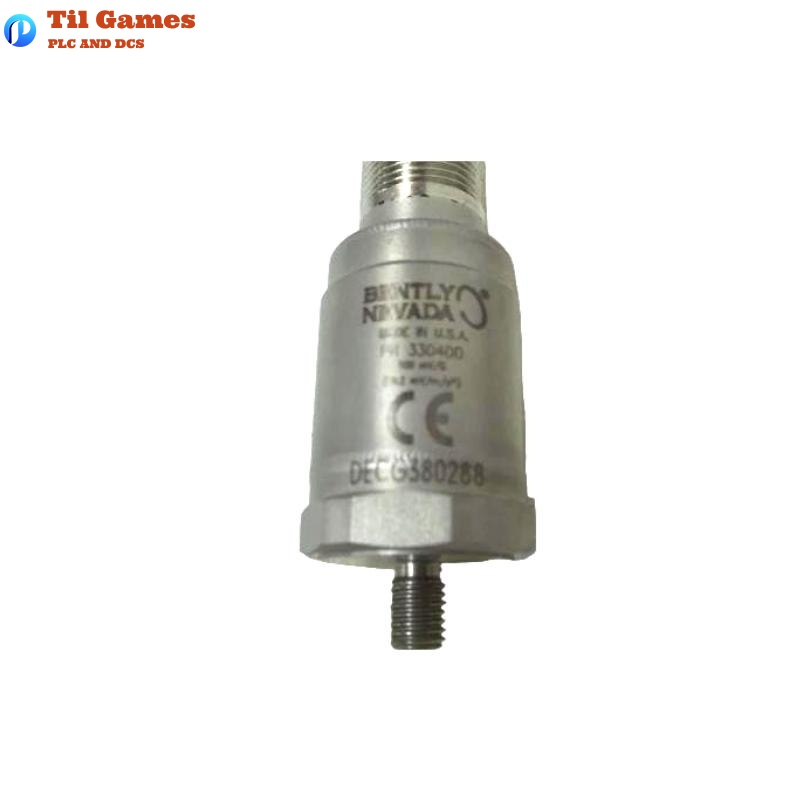

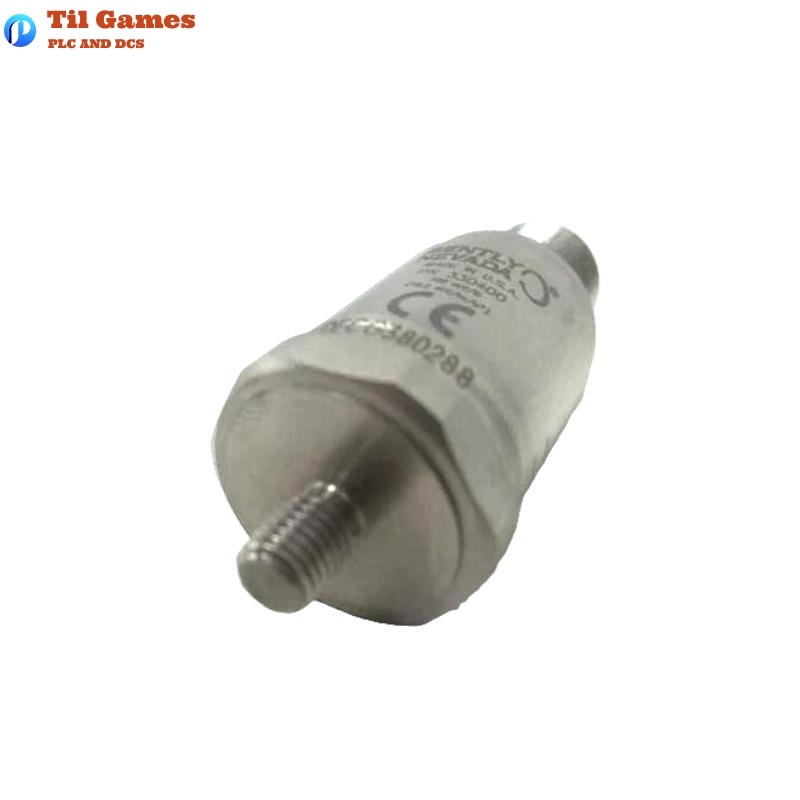

| Sensor Model | Bently Nevada 330400-01-00 |
| Sensitivity | 10.2 mV/m/s² (100 mV/g) ±5% |
| Acceleration Range | 490 m/s² (50 g) peak over 10 Hz to 15 kHz |
| Frequency Response | 10 Hz to 15 kHz (±3 dB) 30 Hz to 10 kHz (±10%) |
| Noise Floor | 0.039 m/s² (0.004 g) rms (10 Hz to 15 kHz) |
| Transverse Sensitivity | Less than 5% of axial |
| Mounted Resonant Frequency | >30 kHz |
| Resonant Peak Amplitude | Maximum 20 dB |
| Temperature Sensitivity | -11% to +3% typical over operating range |
| Base Strain Sensitivity | 49 mm/s²/mstrain (0.005 g/mstrain) for “G” serial models |
| Max Cable Length | 305 meters (1000 feet) without signal degradation |
| Input Voltage | -24 VDC ±0.5 V |
| Bias Current | 2 mA nominal |
| Output Bias Voltage | -8.5 VDC ±0.5 V |
| Grounding | Case isolated |
| Operating/Storage Temp | -55°C to +121°C |
| Shock Survivability | 49,050 m/s² (5000 g) peak |
| Relative Humidity | 100% condensing, hermetically sealed |
| Magnetic Susceptibility | <2.21 mm/s²/gauss (50 gauss at 50–60Hz) |
| Ingress Protection | IP68 equivalent (sensor only) |
| Connector Type | 3-pin MIL-C-5015 Receptacle |
| Case Material | 316L stainless steel |
| Mounting Torque | 4.1 N·m (3.0 ft·lb) |
| Mounting Orientation | Any |
| Mounting Surface Finish | 32 microinch rms |
| Dimensions (Dia. × Height) | 23 mm × 59 mm (including mounting stud) |
| Weight (without cable) | 100 g (0.1 kg) |
FAQ
FAQ（Q&A）
Q1: What are the primary application areas of the 330400-01-00 sensor?
A1: It is primarily used for casing acceleration measurements in critical machinery such as gear mesh monitoring and bearing housing vibration detection.
Q2: What is the maximum cable length supported?
A2: Up to 305 meters (1000 feet) with no signal degradation.
Q3: What output signal does this transducer provide?
A3: It outputs a voltage signal with a sensitivity of 100 mV/g and bias voltage around -8.5 VDC.
Q4: Is it suitable for use in high humidity or submerged environments?
A4: It can operate in 100% condensing humidity. The sensor itself is IP68 sealed, but the cable is not.
Q5: Are there any specific mounting surface requirements?
A5: A surface finish of 32 microinch rms is recommended for optimal performance.
Q6: Does it have hazardous area certifications?
A6: Yes, it is certified for use in hazardous areas (ATEX, IECEx, CSA, etc.).
Q7: Are there orientation restrictions for mounting?
A7: No, it can be mounted in any orientation, allowing flexible integration.
Q8: What is the difference between 330400 and 330425?
A8: 330400 has a sensitivity of 100 mV/g and 50 g peak range, while 330425 offers 25 mV/g sensitivity and 75 g peak range.
