Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330701-00-30-10-02-05 |
| Series | 3300 XL |

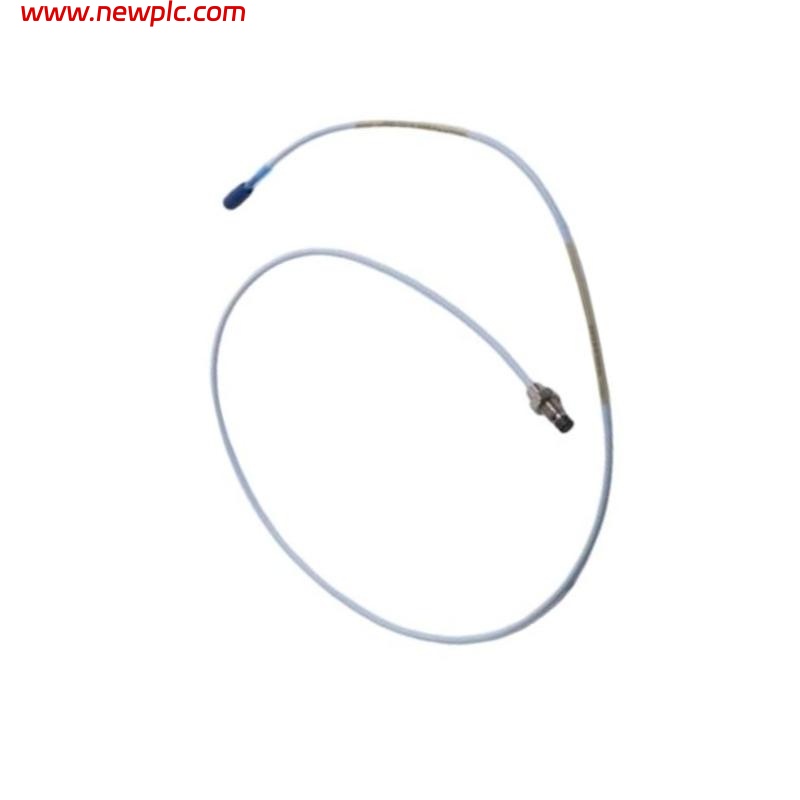

| Type | Eddy Current Probe |
| Probe Diameter | 11 mm |
| Probe Length | 30 mm |
| Measurement Range | 0 – 2.54 mm |
| Linear Range | 0 – 2.54 mm |
| Output Type | Voltage (Differential) |
| Supply Voltage | 24 V DC (typical) |
| Frequency Response | DC – 10 kHz |
| Sensitivity | 40 mV/mil (typical) |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Operating Temperature | –40°C – 120°C |
| Storage Temperature | –55°C – 125°C |
| Material | Stainless steel probe housing |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.07 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330701-00-30-10-02-05 probe?
A1: To provide high-precision measurement of shaft vibration and speed in turbines, compressors, and other rotating machinery.
Q2: What is the measurement range?
A2: 0 – 2.54 mm.
Q3: What type of output does it provide?
A3: Differential voltage signal.
Q4: What is the supply voltage requirement?
A4: 24 V DC (typical).
Q5: What are the probe diameter and length?
A5: Diameter 11 mm, Length 30 mm.
Q6: What is the operating temperature range?
A6: –40°C to 120°C.
Q7: How is the probe mounted?
A7: Can be mounted via bracket or threaded installation on the machinery.
Q8: What are the typical applications?
A8: Shaft vibration monitoring, speed measurement, and condition monitoring for rotating machinery.
