Technical Specifications
| Item | Specification |
|---|---|

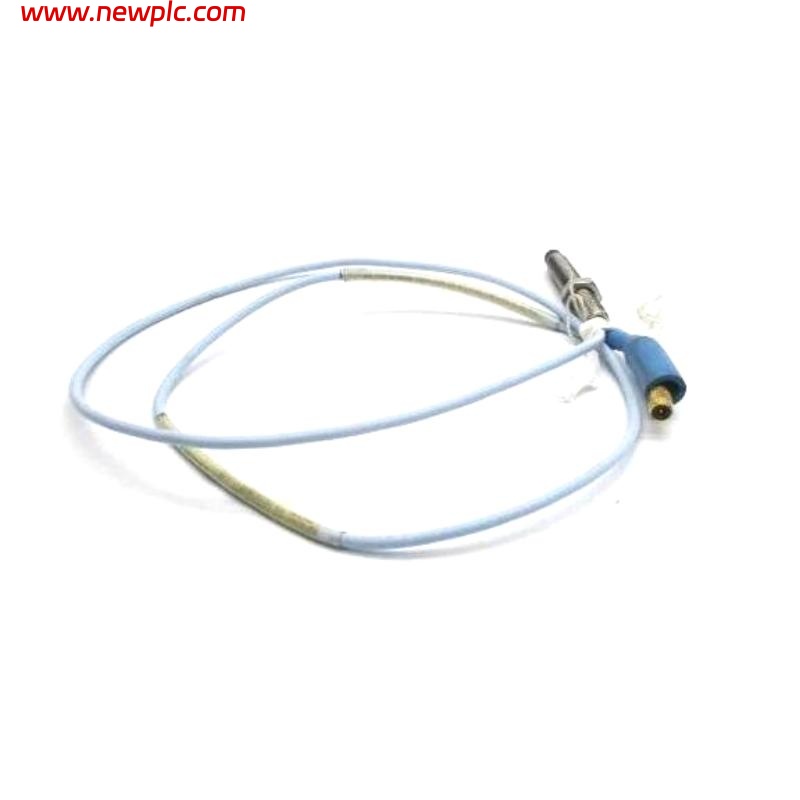

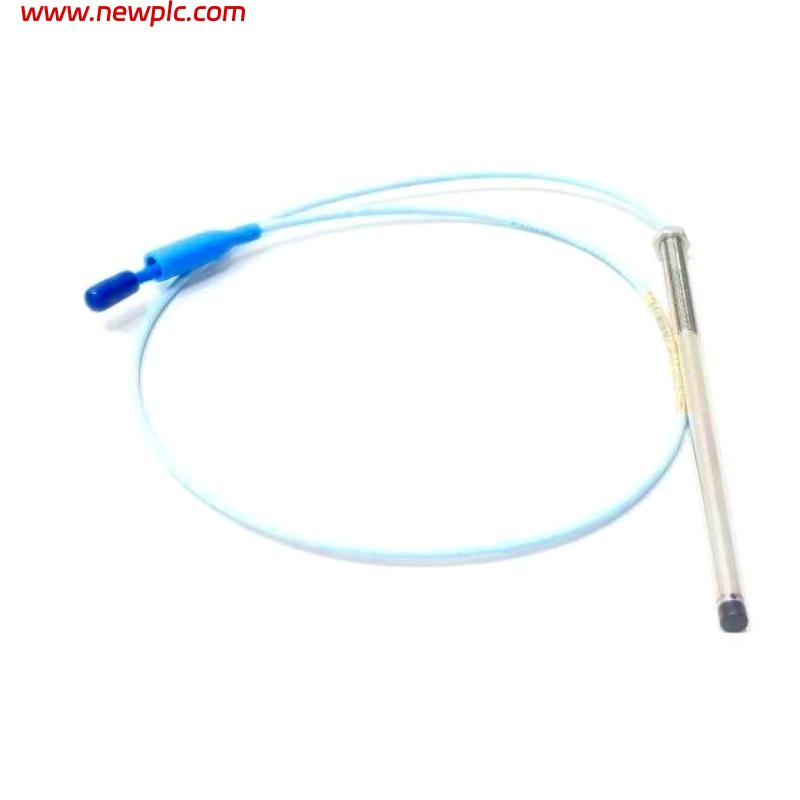

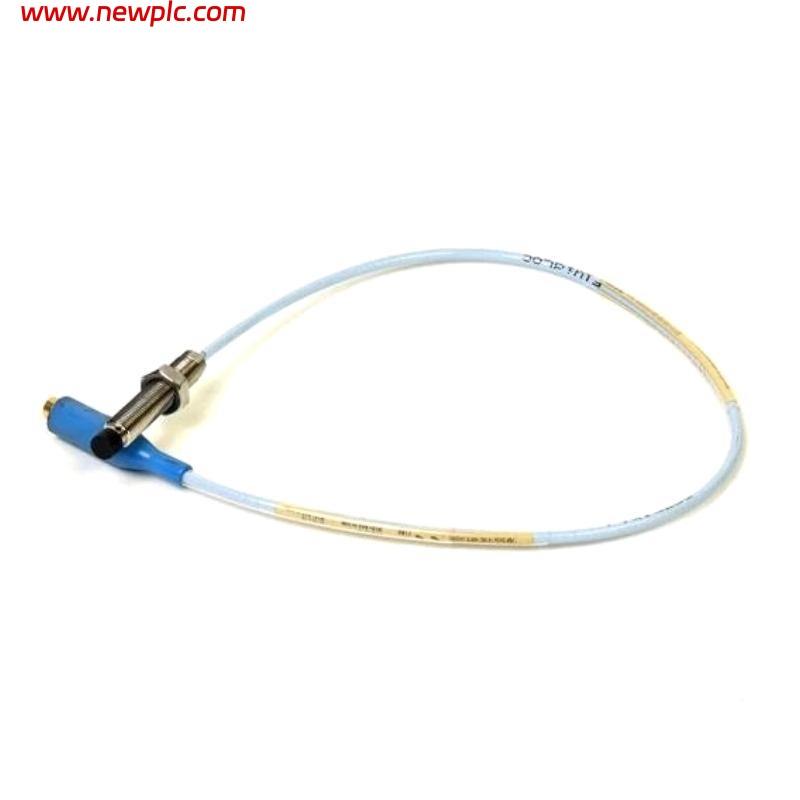

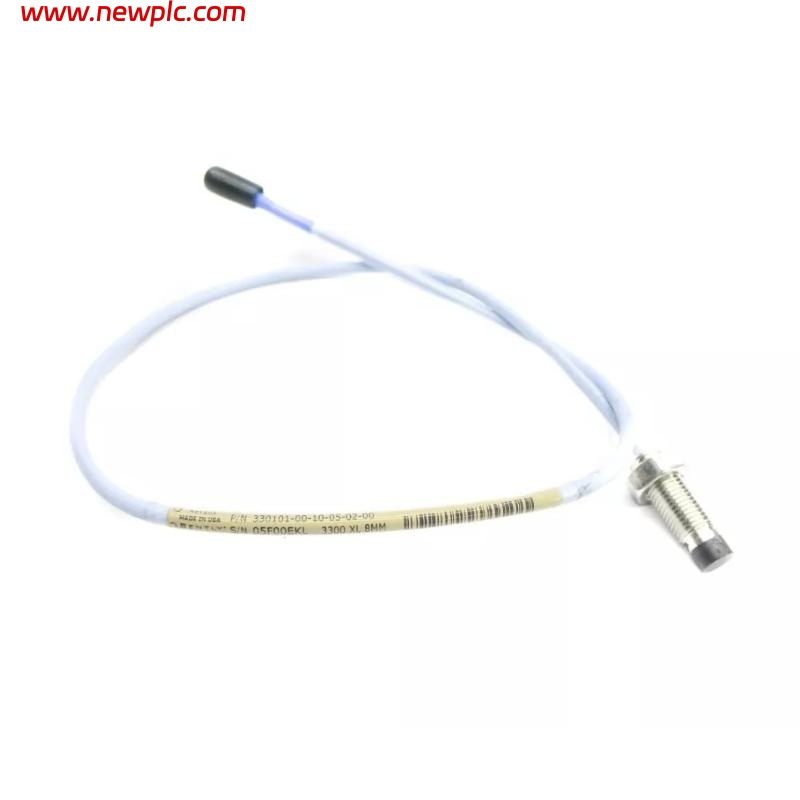

| Model | Bently Nevada 330702-20-30-10-01-05 |
| Type | 3300 XL Proximity Probe |
| Product Category | Machinery Condition Monitoring Sensors |
| Product Family | 3300 XL Series |
| Function | Measures shaft vibration and radial displacement |
| Measurement Principle | Eddy-current non-contact displacement sensing |
| Mounting Thread | Standard threaded mounting (¼-28 UNF) |
| Probe Tip Diameter | Approx. 2.0 mm |
| Probe Body Length | Approx. 30 mm |
| Cable Length | 1.0 m |
| Cable Type | Shielded industrial triaxial probe cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Typical Measurement Range | Approx. 0.5–10 mm dynamic displacement |
| Frequency Response | Wide frequency range suitable for vibration monitoring |
| Operating Temperature Range | –35 °C to +177 °C |
| Housing Material | Stainless steel probe body |
| Dimensions | Probe body length approx. 30 mm; overall length with cable approx. 1.1 m |
| Weight | Approx. 0.12 kg |
| Typical Application | Turbines, compressors, pumps, motors |
FAQ
FAQ
Q1: What is the main function of the 330702-20-30-10-01-05 proximity probe?
It measures shaft vibration and radial displacement in rotating machinery using non-contact eddy-current sensing.
Q2: What does the “20” in the model number indicate?
It refers to the approximate probe tip diameter of 2.0 mm.
Q3: What does the “30” in the part number signify?
It indicates the probe body length is approximately 30 mm.
Q4: What does the “10” in the part number mean?
It denotes that the probe includes a 1.0 m integrated cable.
Q5: What does the “01” code represent?
It identifies a specific configuration within the 3300 XL series.
Q6: What does the “05” suffix mean?
It typically denotes a particular revision, option set, or packaging variant.
Q7: What are the physical dimensions and weight of this probe?
The probe body is approximately 30 mm long with an integral 1.0 m cable; total weight is about 0.12 kg.
Q8: With which systems is this probe compatible?
It is compatible with Bently Nevada 3300 XL Proximitor Sensor systems and matching extension cables used for industrial condition monitoring.
