Technical Specifications
| Item | Specification |
|---|---|

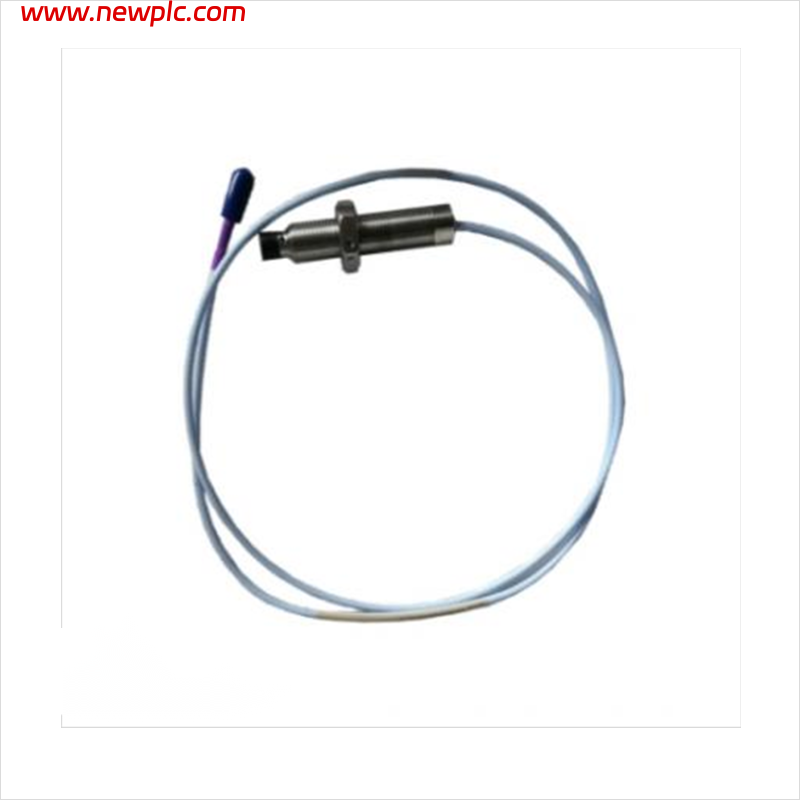

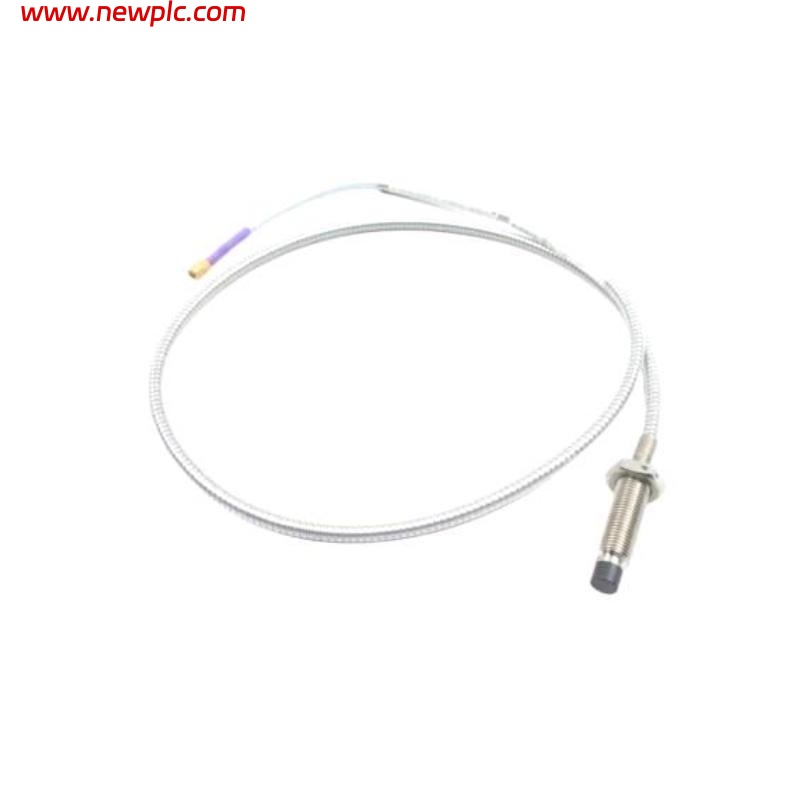

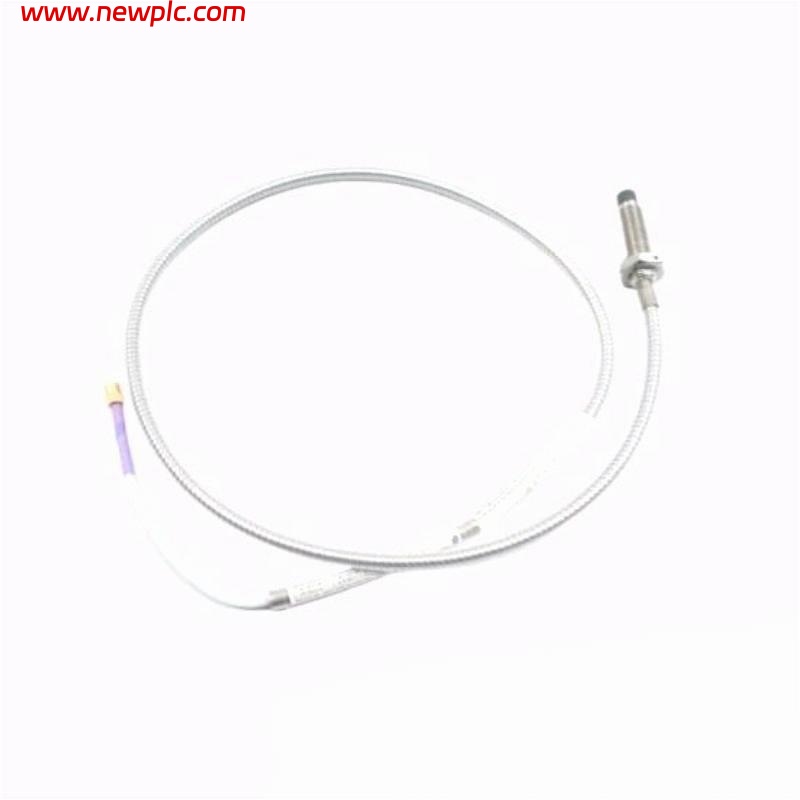

| Model | Bently Nevada 330704-00-050-10-01-05 |
| Type | 3300 XL Proximity Probe |
| Product Category | Machinery Condition Monitoring Sensors |
| Product Family | 3300 XL Series |
| Function | Measures shaft vibration and radial displacement |
| Measurement Principle | Eddy-current non-contact displacement sensing |
| Mounting Thread | Standard threaded mounting (¼-28 UNF) |
| Probe Tip Diameter | Standard 3300 XL probe tip |
| Probe Body Length | Approx. 50 mm |
| Cable Length | 1.0 m |
| Cable Type | Shielded industrial triaxial probe cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Typical Measurement Range | Approx. 0.5–10 mm dynamic displacement |
| Frequency Response | Wide frequency range suitable for vibration monitoring |
| Operating Temperature Range | –35 °C to +177 °C |
| Housing Material | Stainless steel probe body |
| Dimensions | Probe body length approx. 50 mm; overall length with cable approx. 1.25 m |
| Weight | Approx. 0.15 kg |
| Typical Application | Turbines, compressors, pumps, motors |
FAQ
FAQ
Q1: What is the function of the 330704-00-050-10-01-05 proximity probe?
It is used to measure shaft vibration and radial displacement in rotating machinery using non-contact eddy-current sensing.
Q2: What does the “050” in the model number indicate?
It refers to the probe body length, which is approximately 50 mm.
Q3: What does the “10” code represent?
It indicates that the probe is supplied with a 1.0 m integrated cable.
Q4: What is the meaning of the “01” in this part number?
The “01” denotes a specific probe configuration within the 3300 XL product family.
Q5: What does the “05” suffix indicate?
It typically identifies a particular revision, option, or packaging configuration for this probe model.
Q6: Which connector type does this probe use?
The probe uses a miniature coaxial ClickLoc connector for secure and reliable connections.
Q7: What are the physical dimensions and weight of the probe?
The probe body is approximately 50 mm long, includes a 1.0 m cable, and weighs about 0.15 kg.
Q8: With which monitoring systems is this probe compatible?
It is compatible with Bently Nevada 3300 XL Proximitor Sensor systems and corresponding extension cables used for industrial machinery condition monitoring.
