Technical Specifications
| Parameter | Specification |
|---|---|

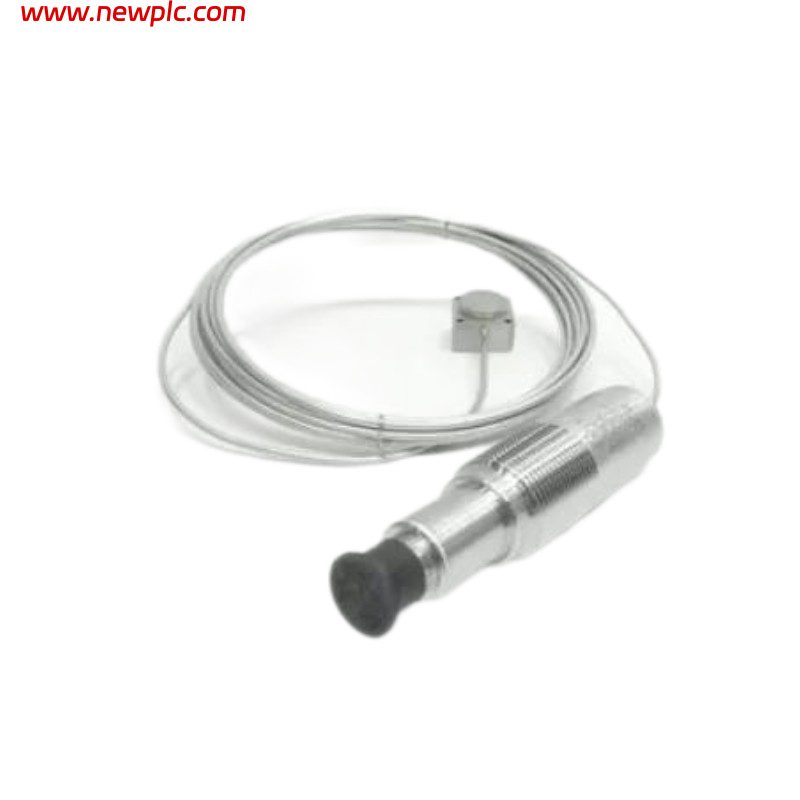

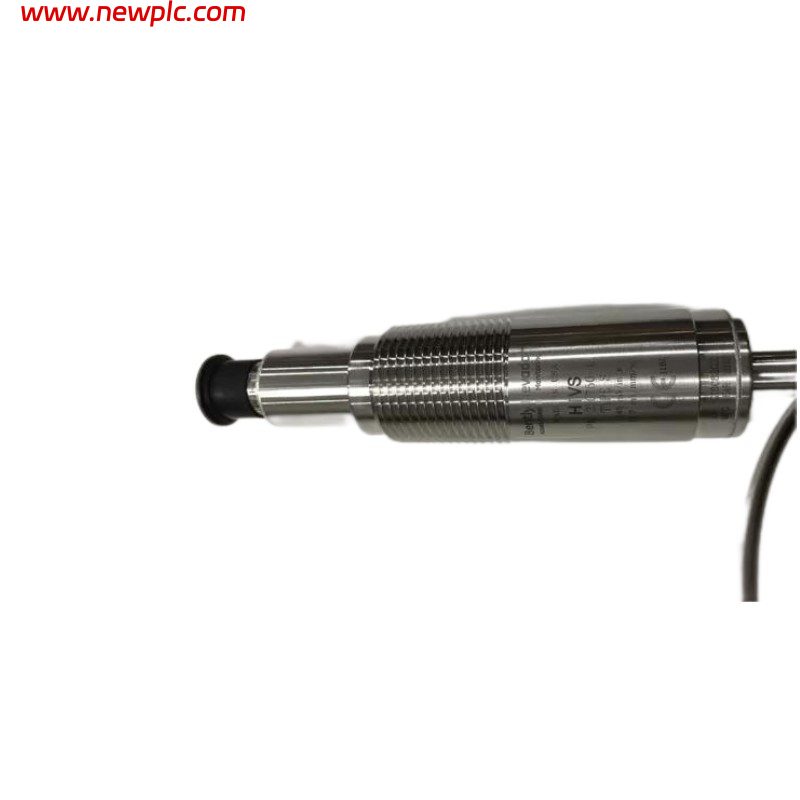

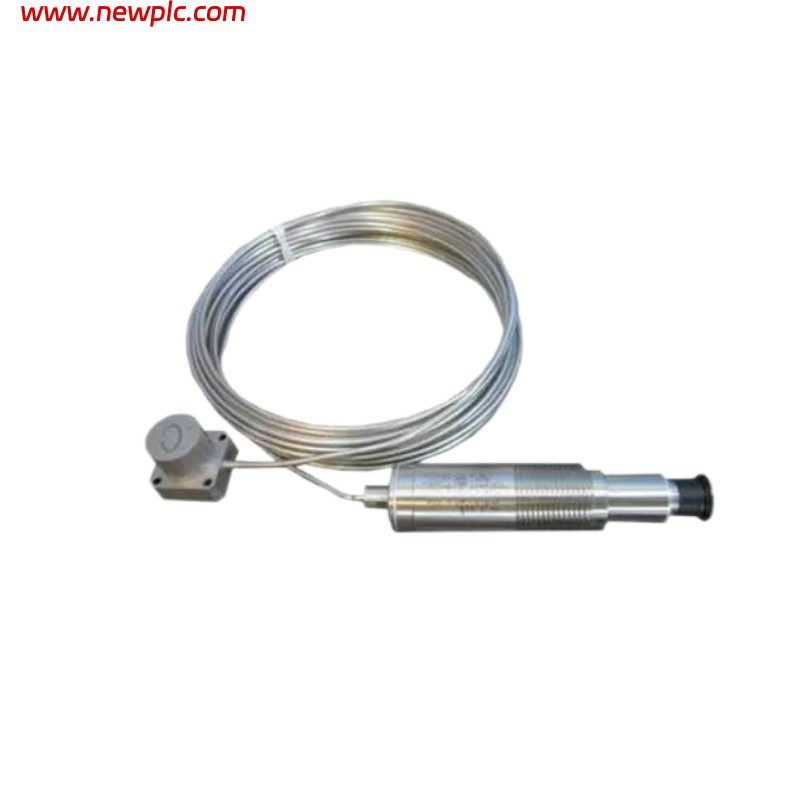

| Product Name | Bently Nevada 330750-40-05 |
| Product ID | 330750-40-05 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL 11 mm Proximitor® Transducer System |
| Function | Non-contact measurement of shaft vibration, axial position, eccentricity, and displacement in rotating machinery |
| Measurement Technology | Eddy Current Proximity Sensing |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 Metric Thread |
| Probe Case Length | 4.0 in (101.6 mm) (Option 40) |
| Total System Length | 0.5 m (1.6 ft) (Option 05) |
| Probe Material | Stainless Steel Housing |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Cable Type | Integral 75 Ω Triaxial Cable |
| Sensitivity | 3.94 V/mm (100 mV/mil) Typical |
| Linear Range | Approx. 4.0 mm (160 mils) |
| Frequency Response | 0 Hz to 10 kHz |
| Operating Temperature | −51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL 11 mm Proximitor® Sensor Systems |
| Application | Steam Turbines, Gas Turbines, Compressors, Pumps, Motors, Generators |
| Dimensions | Probe Diameter 11 mm × Probe Case Length 101.6 mm × Total Assembly Length Approx. 500–550 mm |
| Weight | Approx. 0.25–0.35 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330750-40-05 used for?
It is an 11 mm eddy-current proximity probe used to measure shaft vibration, position, and displacement in critical rotating equipment.
Q2: What does option 40 indicate?
Option 40 specifies a probe case length of 4.0 inches (101.6 mm).
Q3: What does option 05 indicate?
Option 05 specifies a total system length of 0.5 meter (1.6 ft).
Q4: What is the probe diameter?
The probe diameter is 11 mm.
Q5: What are the dimensions and weight?
The probe has an 11 mm diameter, a 101.6 mm case length, an overall assembly length of approximately 500–550 mm, and weighs approximately 0.25–0.35 kg.
Q6: What monitoring applications is it suitable for?
It is suitable for shaft vibration, thrust position, differential expansion, and rotor displacement measurements.
Q7: Can it be used with standard 8 mm Proximitor sensors?
No. It must be paired with a compatible 3300 XL 11 mm Proximitor® sensor system.
Q8: What should be checked before replacement?
Verify probe diameter, thread type, case length, total system length, and compatibility with the existing 3300 XL 11 mm transducer system.
