Technical Specifications
| Parameter Name | Specification |
|---|---|

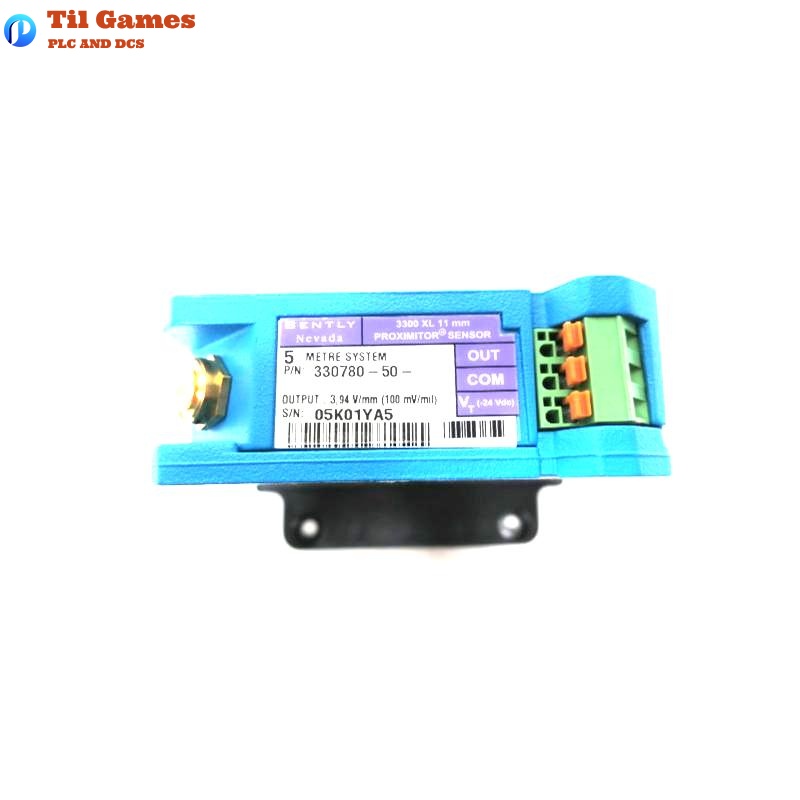

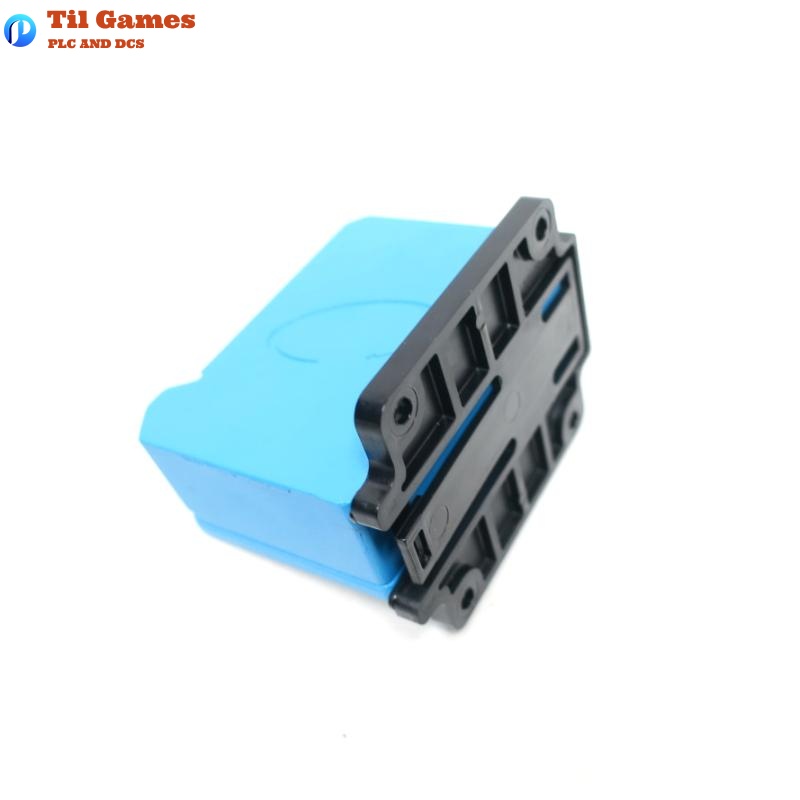

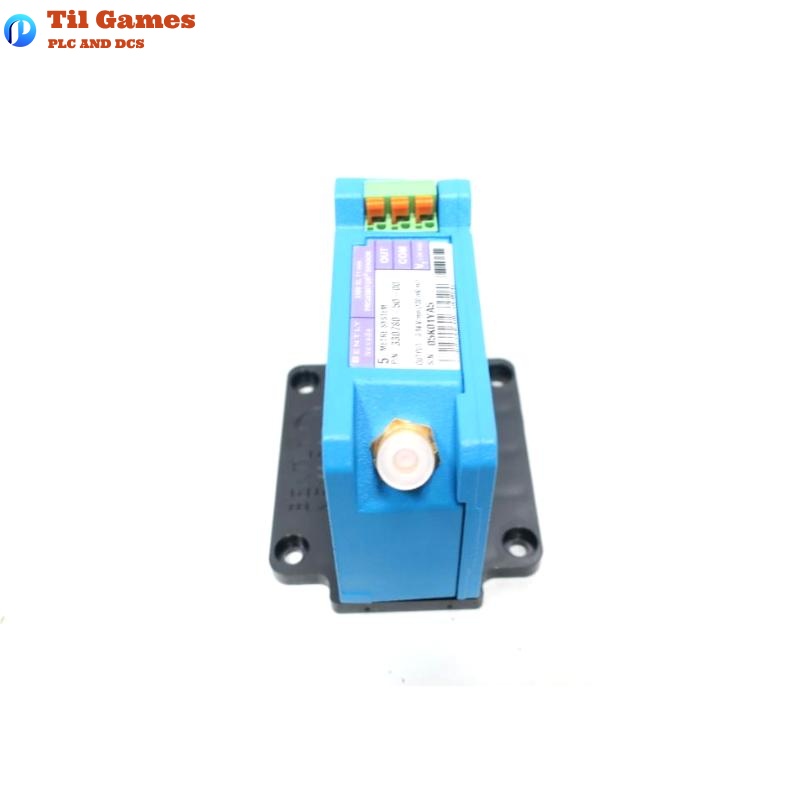

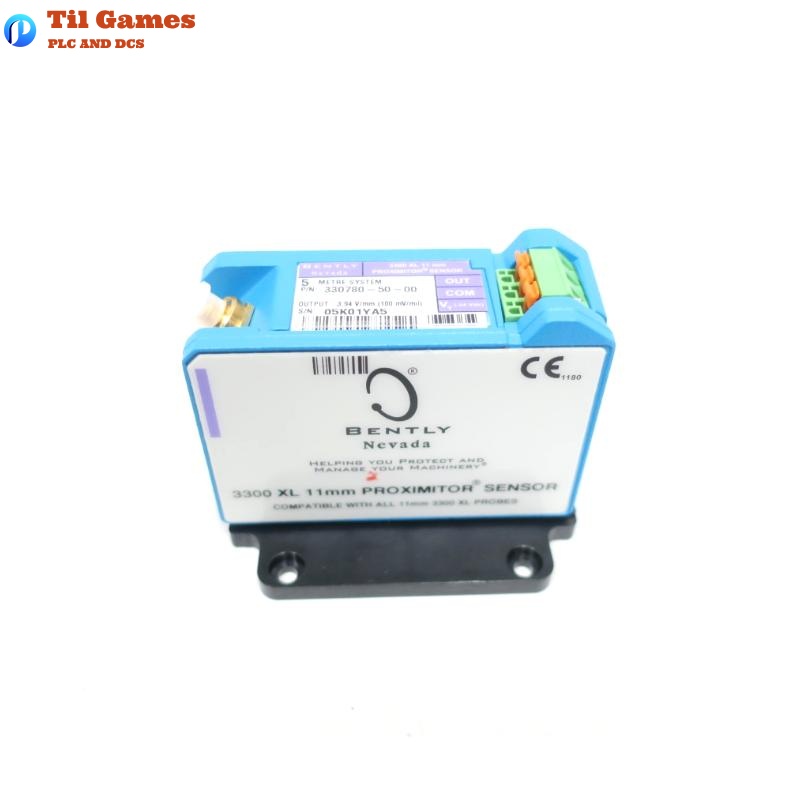

| Product Name | Bently Nevada 330780-50-CN 3300 XL 11 mm Proximitor Sensor |
| Total Length | 5.0 meters |
| Weight | 0.255 kg (255 g) |
| Operating Frequency Range | 0 to 8 kHz |
| Linear Range | 0.5 mm to 4.5 mm (standard) 0.5 mm to 5.0 mm (extended DSL range) |
| Scale Factor | 3.94 V/mm (100 mV/mil), ±10% |
| Recommended Gap Setting | 2.5 mm (100 mil) |
| Supply Voltage | -17.5 VDC to -26 VDC (no barrier) -23 VDC to -26 VDC (with barrier) |
| Current Consumption | Max 12 mA |
| Output Impedance | 50 Ω |
| Probe Material | PPS tip, AISI 304 stainless steel case |
| Extension Cable Type | FEP insulated, 75Ω coaxial, optional armor |
| Sensor Housing Material | Aluminum A380 |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Probe Temperature Range | -52°C to +177°C |
| Extension Cable Temp | -52°C to +177°C |
| Sensor Temperature Range | Operating: -52°C to +100°C Storage: -52°C to +105°C |
| Relative Humidity | 100% condensing, non-submersible when connectors are protected |
| IP Protection | IP54 or better with connector protection |
FAQ
Frequently Asked Questions (FAQ)
Q1: What components make up the 330780-50-CN system?
A1: It includes a 3300 XL 11 mm probe, an extension cable, and a Proximitor Sensor.
Q2: What are the typical applications of this sensor?
A2: It is used for axial thrust, differential expansion, rod position, Keyphasor, and zero-speed measurements.
Q3: Is it compatible with the older 7200 series?
A3: No. Full replacement with 3300 XL components is required, along with system configuration updates.
Q4: What is the output scale of the sensor?
A4: 3.94 V/mm (100 mV/mil).
Q5: Can the sensor be used in humid environments?
A5: Yes, but connector protectors or silicone tape must be used to prevent moisture ingress.
Q6: Are there multiple system lengths available?
A6: Yes, systems are available in 5-meter and 9-meter total lengths.
Q7: What type of connector is used on the probe?
A7: ClickLoc gold-plated coaxial connectors with anti-loosening mechanism.
Q8: Does the product meet industrial certifications?
A8: Yes, it complies with FCC, CE, RoHS, ATEX, IECEx, and more.
