Technical Specifications
| Item | Specification |
|---|---|

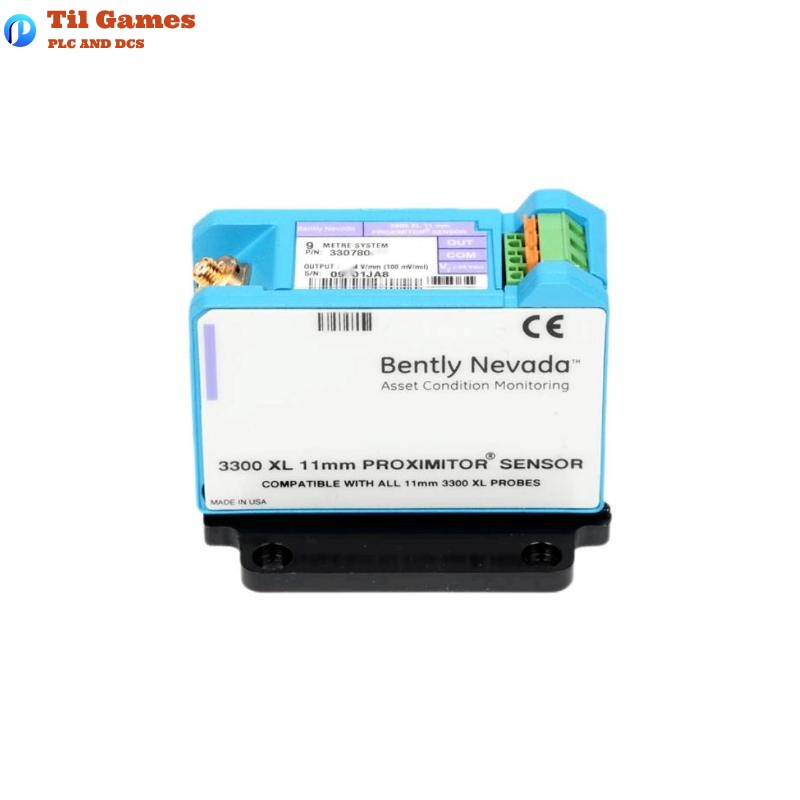

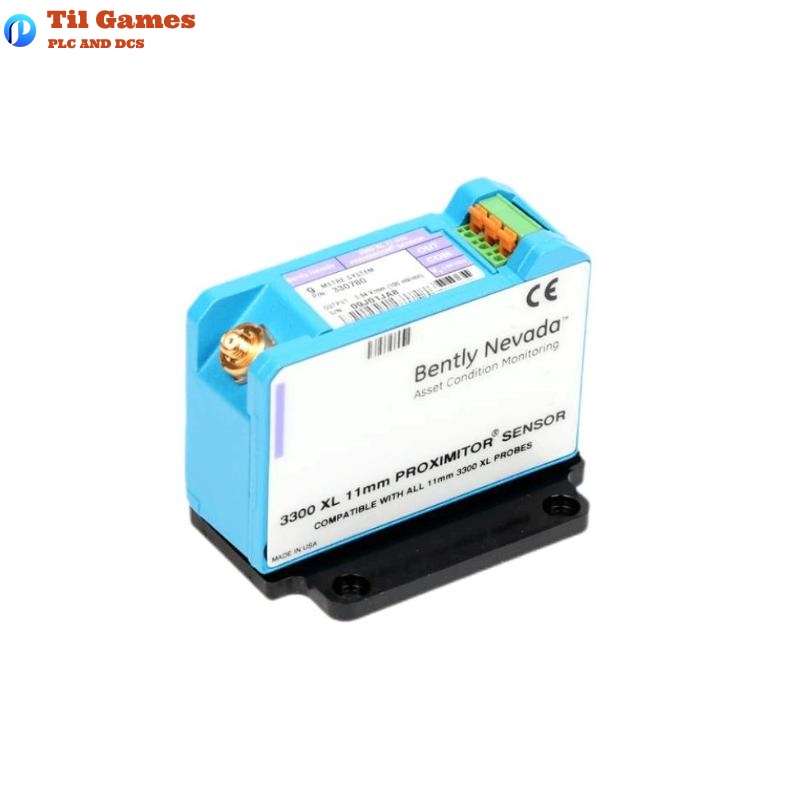

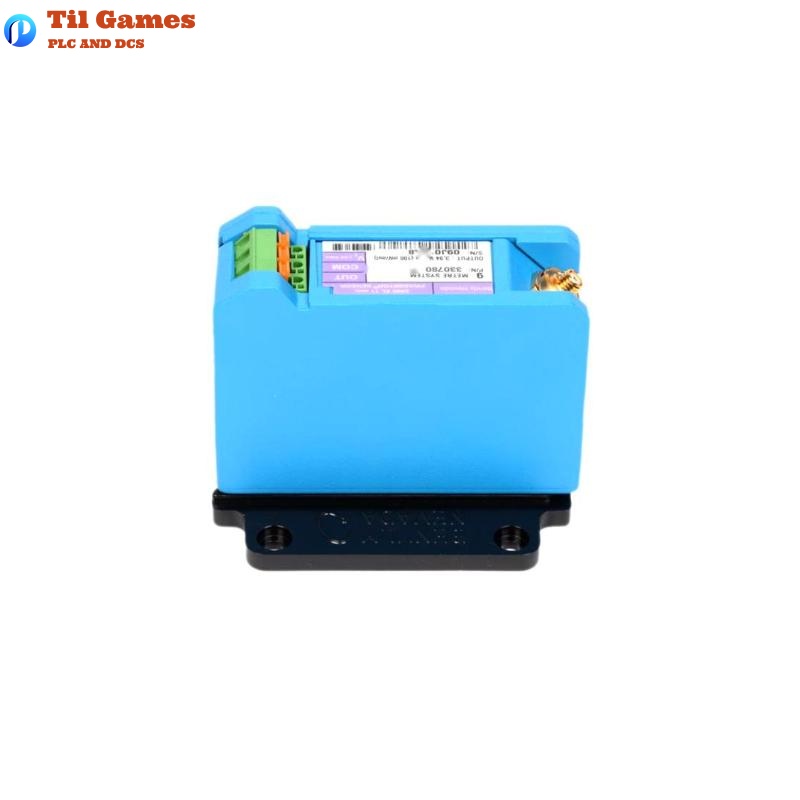

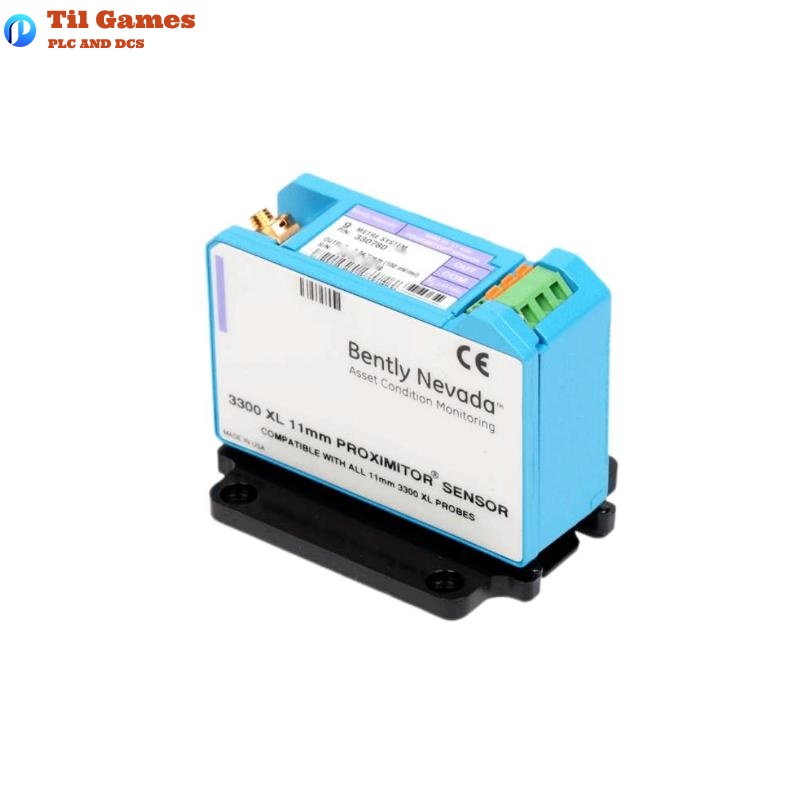

| Model | 330780-A51-CN |
| Application | Vibration and position measurement for rotating machinery |
| Output Scale Factor | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Response | 0–8 kHz, ±3 dB typical |
| Linear Range | 0.5 to 4.5 mm (20 to 180 mils); Extended up to 5.0 mm (200 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Power Supply | –17.5 to –26 VDC (–23 VDC to –26 VDC with barriers) |
| Input | One 3300 XL 11 mm probe and one extension cable |
| Output Resistance | 50 Ohm |
| Capacitance (extension cable) | 69.9 pF/m (typical) |
| Connector Type | ClickLoc gold-plated brass connector |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Proximitor Sensor Material | A380 aluminum |
| System Total Length | 5.0 meters (sensor + probe + extension cable) |
| System Total Weight | 0.255 kg |
| Operating Temperature (Probe) | –52°C to +177°C |
| Operating Temperature (Sensor) | –52°C to +100°C |
| Storage Temperature (Sensor) | –52°C to +105°C |
| Relative Humidity | 100% condensing (with connector protection) |
| Environmental Protection | IP54 (minimum, with proper installation) |
| Certifications | FCC, CE, RoHS, ATEX, IECEx, SIL2/SIL3 |
FAQ
FAQ – Q&A Format
Q1: What is the primary application of the 330780-A51-CN sensor?
A1: It is used for non-contact vibration and position measurements in fluid film bearing machines.
Q2: What is the recommended gap setting for proper operation?
A2: The recommended gap is 2.5 mm (100 mils).
Q3: What is the output scale factor of this proximity system?
A3: The system provides 3.94 V/mm or 100 mV/mil.
Q4: What materials are used for the probe tip and sensor body?
A4: The probe tip is made of PPS and the sensor body is made of A380 aluminum.
Q5: What is the total system length of the model 330780-A51-CN?
A5: The total length is 5.0 meters including probe and extension cable.
Q6: What is the weight of the 330780-A51-CN system?
A6: The typical total weight is 0.255 kg.
Q7: What environmental conditions can the probe handle?
A7: The probe operates from –52°C to +177°C with 100% condensing humidity when connectors are protected.
Q8: Is the sensor certified for use in hazardous environments?
A8: Yes, it holds multiple certifications including ATEX, IECEx, and SIL ratings for safe use in hazardous zones.
