Technical Specifications
| Parameter | Specification |
|---|---|

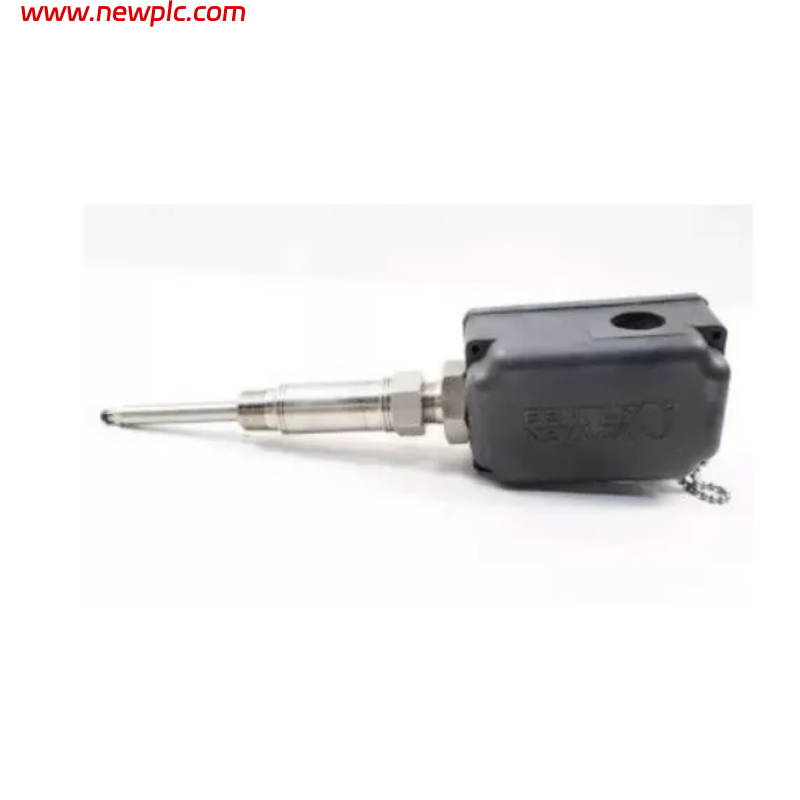

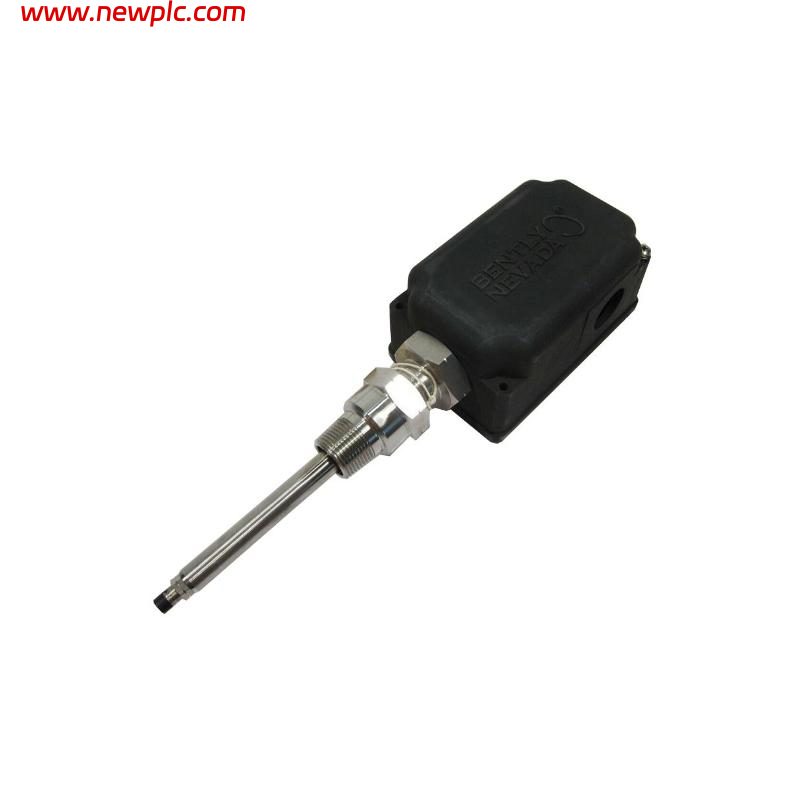

| Product Name | Bently Nevada 330800-28-00-035-01-02 |
| Product ID | 330800-28-00-035-01-02 |
| Manufacturer | Bently Nevada |
| Product Type | PROXPAC® XL Proximity Transducer Assembly |
| Series | 3300 XL PROXPAC System |
| Function | Integrated proximity transducer assembly for non-contact shaft vibration and position monitoring |
| Probe Option | 3300 XL 8 mm Probe with Multiple Approvals (Option 28) |
| Standoff Adapter Option | No Standoff Adapter (Option 00) |
| Probe Penetration Length | 3.5 in (88.9 mm) (Option 035) |
| Fittings Option | One 3/4-14 NPT Fitting, Two Plugs (Option 01) |
| Mounting Thread | 3/4-14 NPT (Option 02) |
| Measurement Technology | Eddy Current Proximity Measurement |
| Frequency Response | 0 to 6.5 kHz (+0, -3 dB) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3.0 in) |
| Absolute Minimum Shaft Diameter | 50.8 mm (2.0 in) |
| Housing Material | Glass-filled Polyphenylene Sulfide (PPS) |
| Sleeve Material | Stainless Steel |
| System Compatibility | Bently Nevada 3300 XL Proximity Transducer System |
| Environmental Approvals | Multiple Hazardous Area Approvals |
| Operating Temperature | -51°C to +105°C |
| Storage Temperature | -51°C to +177°C |
| Protection Rating | Type 4X / IP66 (configuration dependent) |
| Application | Turbines, compressors, pumps, motors, generators, and rotating machinery |
| Mounting Type | External machine housing mounting |
| Dimensions (H × W × D) | Approx. 278 × 95 × 92 mm |
| Weight | Approx. 1.5–2.0 kg |
| Country of Origin | United States |
FAQ
FAQ
FAQ
Q1: What is the Bently Nevada 330800-28-00-035-01-02 used for?
It is an integrated PROXPAC® XL proximity transducer assembly used for shaft vibration and shaft position monitoring on rotating machinery.
Q2: What probe is included in this configuration?
Option 28 specifies a 3300 XL 8 mm proximity probe with multiple hazardous-area approvals.
Q3: What is the probe penetration length?
Option 035 corresponds to a probe penetration length of 3.5 inches (88.9 mm).
Q4: What fitting configuration is supplied?
Option 01 includes one 3/4-14 NPT fitting and two plugs for field installation.
Q5: What mounting thread does it use?
Option 02 specifies a 3/4-14 NPT mounting thread.
Q6: What measurements can it perform?
The assembly supports shaft vibration, shaft position, eccentricity, and other proximity-based machinery protection measurements.
Q7: Is the weight value exact?
No. Bently Nevada does not publicly publish a specific weight for every PROXPAC configuration. Based on comparable 330800 assemblies and shipping data, the installed assembly weight is approximately 1.5–2.0 kg.
Q8: What should be verified before replacement?
Users should confirm the probe type, penetration length, fitting option, mounting thread, hazardous-area approval requirements, and compatibility with the existing 3300 XL monitoring system before installation.
