Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330851-02-00-08-50-01-CN |

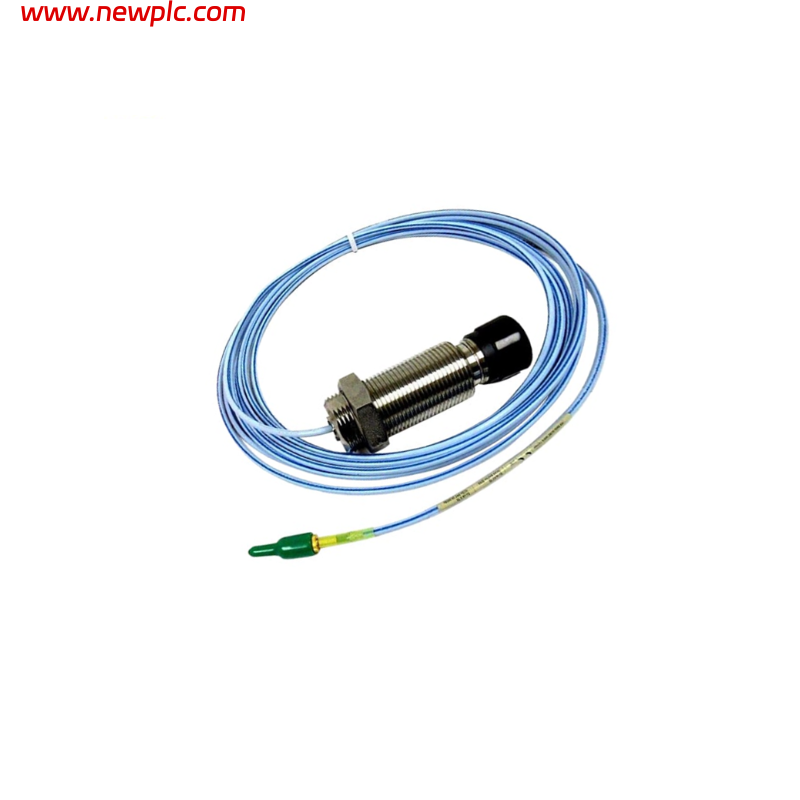

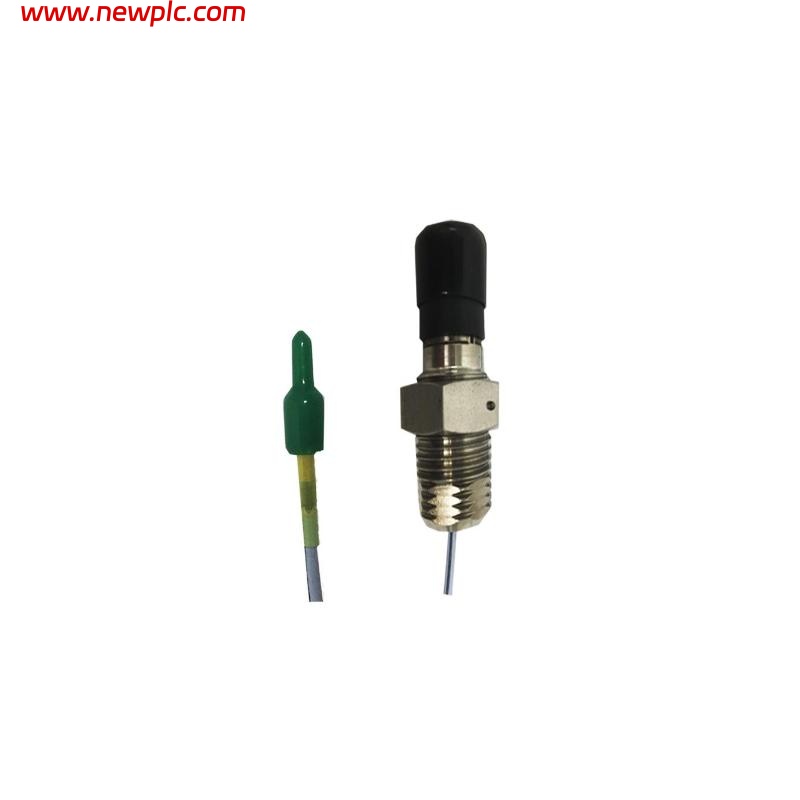

| Product Name | Bently Nevada 3300 NSv (Narrow Side-view) Proximity Probe |
| Probe Type | Non-armored, side-view configuration |
| Dimensions | Probe tip diameter: 5 mm ; Overall case length: 0.8 in ; Total length: 5.0 metres |
| Connector & Cable-Type Option | Standard connector with 5 ft extension cable |
| Agency Approval Option | CN (China certification) |
| Linear Range | 1.0 mm (40 mils) |
| Recommended Gap | 1.02 mm (40 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | Up to 8 kHz typical |
| Operating Temperature Range | -35 °C to +177 °C (-31 °F to +350 °F) |
| Storage Temperature Range | -35 °C to +177 °C (-31 °F to +350 °F) |
| Weight | ≈ 0.55 kg |
| Shipping Weight | ≈ 2.9 kg |
| Case Material | AISI 303 or 304 stainless steel |
FAQ
FAQ
Q1: What is the function of the 330851-02-00-08-50-01-CN probe?
It measures shaft vibration and position in small or confined machinery, optimized for narrow side-view applications.
Q2: What does “02-00-08” indicate in the model number?
“02” identifies the 5 mm probe type, “00” denotes standard factory calibration, and “08” indicates an overall case length of 0.8 inches.
Q3: What does “50-01-CN” specify?
“50” represents a total probe length of 5.0 metres, “01” defines the connector configuration, and “CN” indicates Chinese certification.
Q4: Which proximitor sensor is compatible with this probe?
It is compatible with the Bently Nevada 3300 NSv Proximitor Sensor for narrow side-view installations.
Q5: Can this probe operate in harsh or tight environments?
Yes, its side-view design and stainless-steel housing allow operation in compact and demanding industrial settings.
Q6: What type of output does it provide?
The probe provides a voltage output proportional to shaft vibration and displacement.
Q7: What is the operating temperature range?
The probe operates reliably from -35 °C to +177 °C (-31 °F to +350 °F).
Q8: What are the physical dimensions and weight of this probe?
Probe tip diameter: 5 mm ; Overall case length: 0.8 in ; Total length: 5.0 metres ; Weight: ≈ 0.55 kg.
