Technical Specifications
| Parameter | Specification |
|---|---|

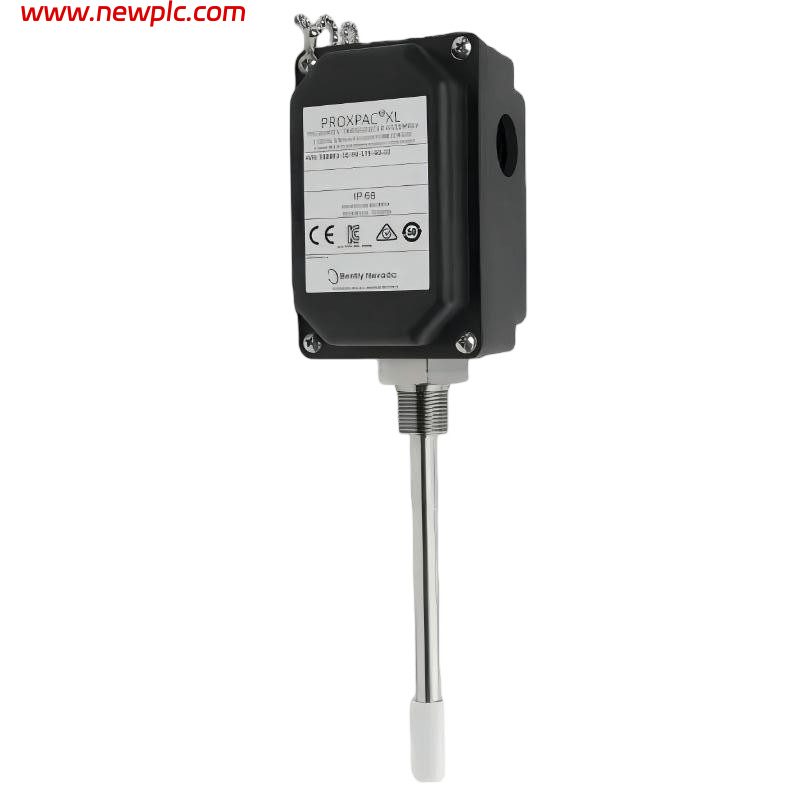

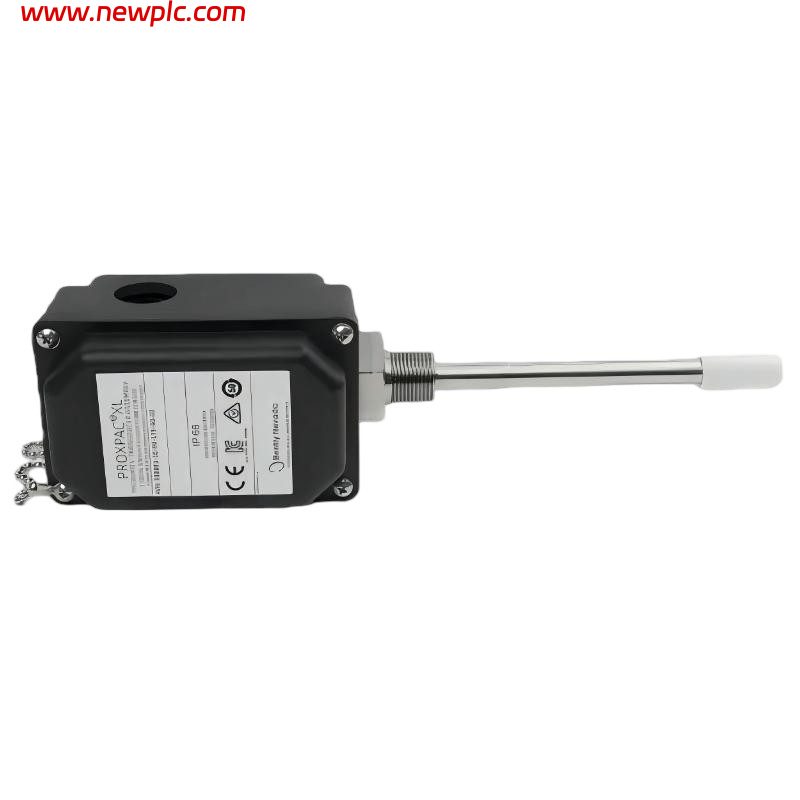

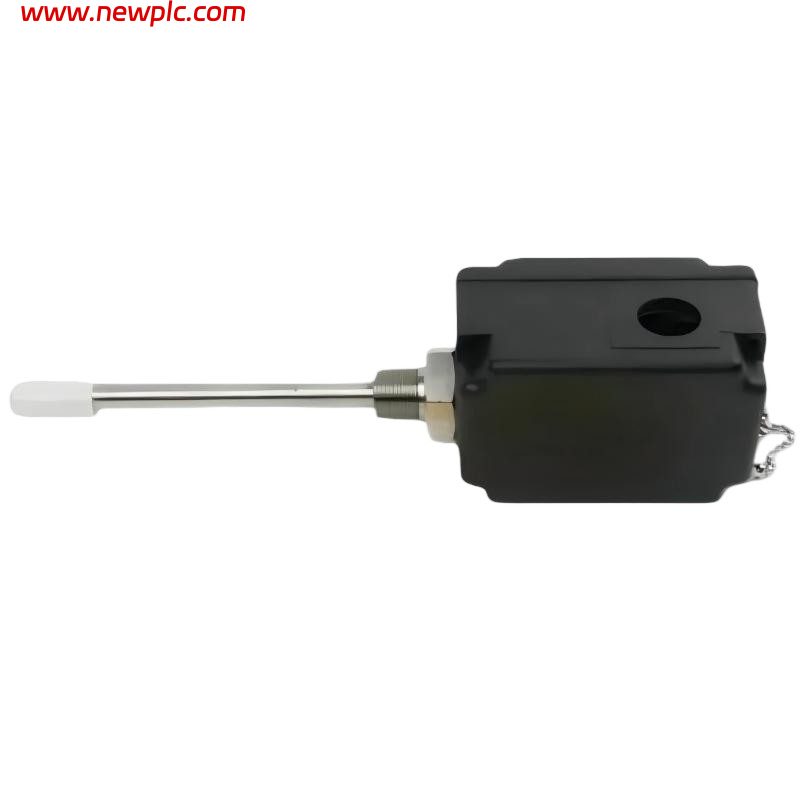

| Product Name | Bently Nevada 330880-28-15-044-01-02 |
| Product ID | 330880-28-15-044-01-02 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL NSv Proximitor® Sensor |
| Series | 3300 XL NSv Proximity Transducer System |
| Function | Conditions and converts signals from NSv proximity probes for shaft vibration and position monitoring |
| Sensor Type | Proximitor® Sensor |
| System Length | 1.5 m (5 ft) (Option 15) |
| Proximitor Cable Length | 4.4 m (14.5 ft) (Option 044) |
| Mounting Option | Panel Mount (Option 01) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector (Option 02) |
| Input Compatibility | Bently Nevada 3300 XL NSv 5 mm Proximity Probes |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Frequency Response | 0 Hz to 10 kHz |
| Supply Voltage | −17.5 VDC to −26 VDC |
| Operating Temperature | −51°C to +100°C |
| Housing Material | Die-Cast Aluminum |
| System Compatibility | Bently Nevada 3300 XL NSv Transducer System |
| Application | Turbines, Compressors, Pumps, Motors, Gearboxes, Generators |
| Dimensions & Weight | Approx. 122 × 73 × 51 mm; weight approx. 0.45–0.65 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330880-28-15-044-01-02 used for?
It is a Proximitor® sensor used to process signals from NSv proximity probes for shaft vibration and position monitoring.
Q2: What does option 15 indicate?
It specifies a total transducer system length of 1.5 meters (5 feet).
Q3: What does option 044 indicate?
It specifies a Proximitor® cable length of 4.4 meters (14.5 feet).
Q4: What does option 01 indicate?
It specifies a panel-mount housing configuration.
Q5: What probes are compatible with this sensor?
It is designed for use with Bently Nevada 3300 XL NSv 5 mm proximity probes.
Q6: What are the dimensions and weight?
The housing dimensions are approximately 122 × 73 × 51 mm and the weight is approximately 0.45–0.65 kg.
Q7: What is the operating voltage?
The sensor operates from −17.5 VDC to −26 VDC.
Q8: What should be verified before replacement?
Verify the NSv probe type, system length, cable length, mounting style, and overall compatibility with the existing 3300 XL NSv transducer system.
