Technical Specifications
| Parameter | Specification |
|---|---|

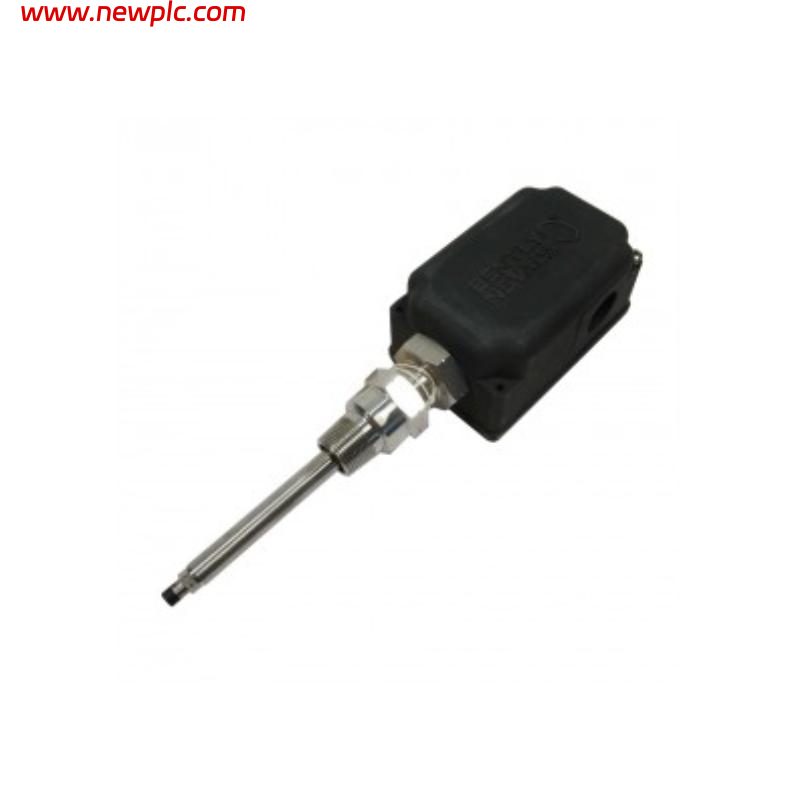

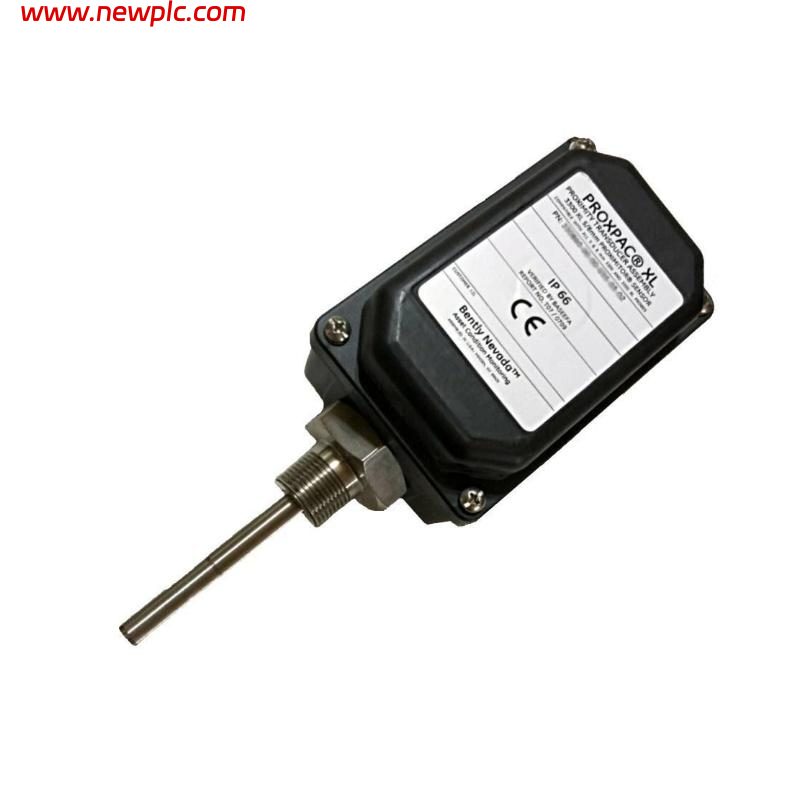

| Product Name | Bently Nevada 330880-28-15-063-00-02 |
| Product ID | 330880-28-15-063-00-02 |
| Manufacturer | Bently Nevada |
| Product Type | PROXPAC® XL Proximity Transducer Assembly |
| Series | 3300 XL PROXPAC System |
| Function | Integrated proximity transducer assembly for non-contact shaft vibration and position monitoring |
| Probe Option | 3300 XL 8 mm Probe with Multiple Approvals (Option 28) |
| Standoff Adapter Length | 1.5 in (38.1 mm) (Option 15) |
| Probe Penetration Length | 6.3 in (160.0 mm) (Option 063) |
| Fittings Option | No fittings supplied (Option 00) |
| Mounting Thread | 3/4-14 NPT (Option 02) |
| Measurement Technology | Eddy Current Proximity Measurement |
| Frequency Response | 0 to 6.5 kHz (+0, -3 dB) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3.0 in) |
| Housing Material | Glass-filled Polyphenylene Sulfide (PPS) |
| Sleeve Material | Stainless Steel |
| System Compatibility | Bently Nevada 3300 XL 8 mm Proximity Transducer System |
| Environmental Approvals | Multiple Hazardous Area Approvals |
| Protection Rating | Type 4X / IP66 (configuration dependent) |
| Operating Temperature | −51°C to +105°C |
| Storage Temperature | −51°C to +177°C |
| Application | Turbines, compressors, pumps, motors, generators, and rotating machinery monitoring |
| Mounting Type | External machine housing mounting |
| Dimensions (H × W × D) | Approx. 350 × 95 × 92 mm |
| Weight | Approx. 1.8–2.3 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330880-28-15-063-00-02 used for?
It is an integrated PROXPAC® XL proximity transducer assembly used for shaft vibration and shaft position monitoring in rotating machinery.
Q2: What does option 28 represent?
Option 28 indicates a 3300 XL 8 mm proximity probe with multiple hazardous-area approvals.
Q3: What does option 15 specify?
Option 15 corresponds to a 1.5-inch (38.1 mm) standoff adapter length.
Q4: What does option 063 specify?
Option 063 defines a probe penetration length of 6.3 inches (160.0 mm).
Q5: Does this model include fittings?
No. Option 00 indicates no fittings are supplied with this configuration.
Q6: What mounting thread is used?
It uses a 3/4-14 NPT mounting thread.
Q7: Is the weight exact?
No. Bently Nevada does not publish exact weights for every configuration. Based on similar PROXPAC XL units, this model typically weighs about 1.8–2.3 kg.
Q8: What should be checked before replacement?
Verify probe configuration, standoff length, penetration depth, mounting thread, hazardous approvals, and compatibility with the existing 3300 XL system before installation.
