Technical Specifications
| Parameter | Specification |
|---|---|

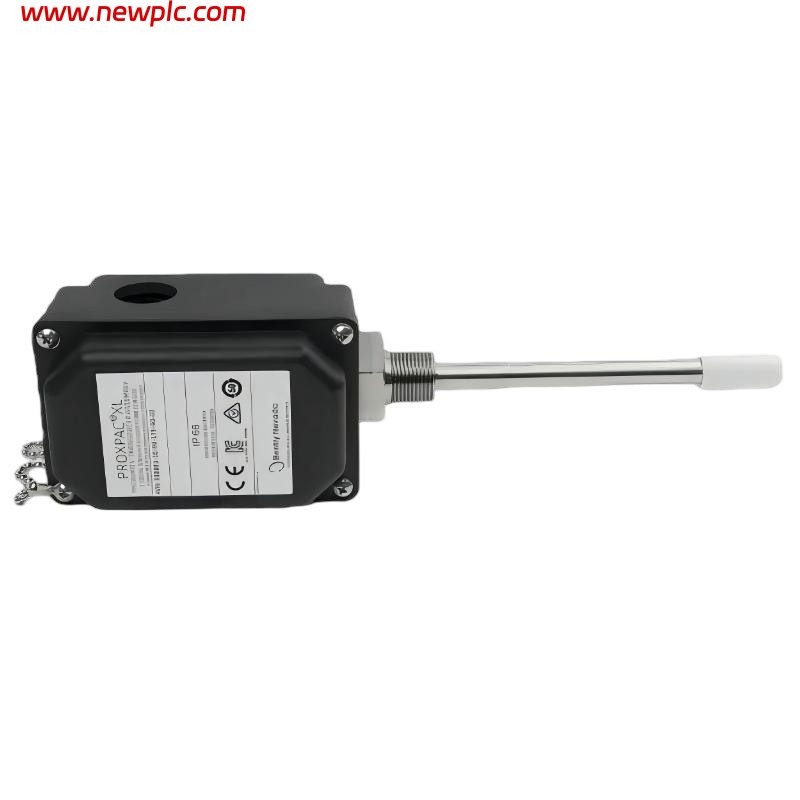

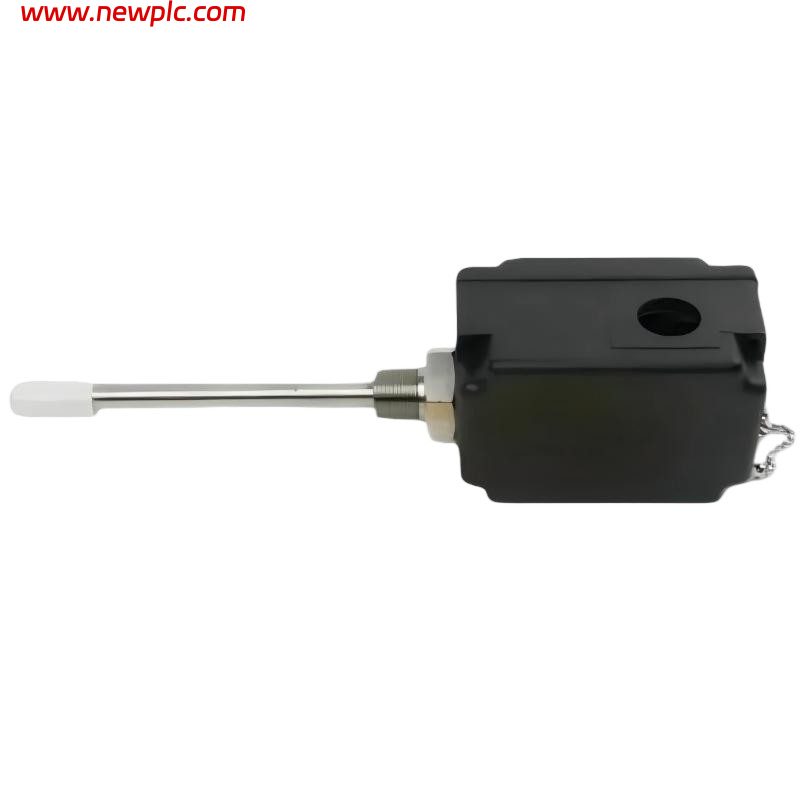

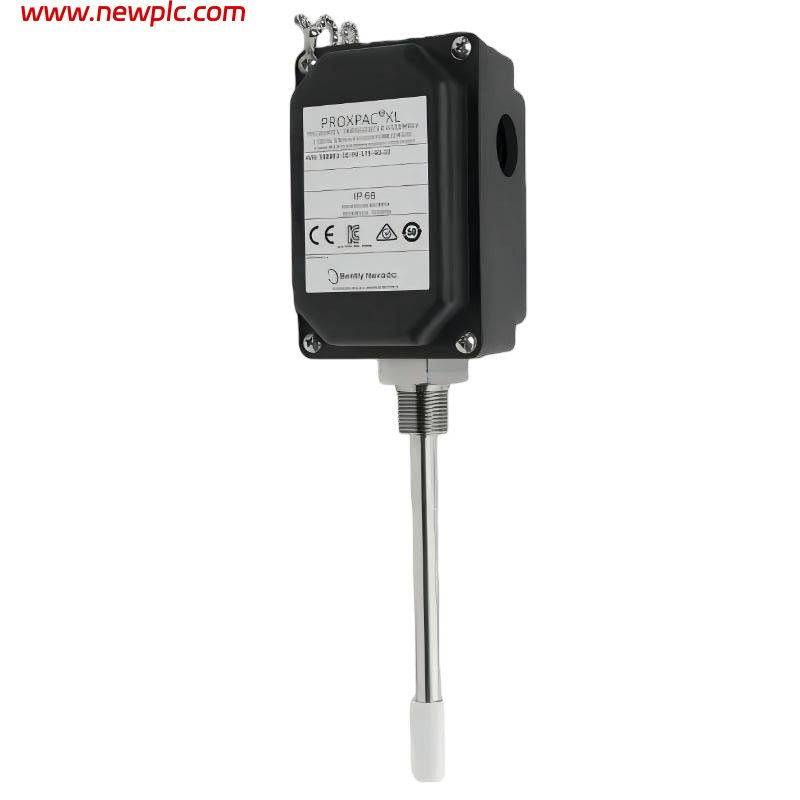

| Product Name | Bently Nevada 330881-16-11-165-07-02 |
| Product ID | 330881-16-11-165-07-02 |
| Manufacturer | Bently Nevada |
| Product Type | PROXPAC® XL Reverse Mount Proximity Transducer Assembly |
| Series | 3300 XL PROXPAC System |
| Function | Integrated reverse-mount proximity transducer for shaft vibration, position, speed, and phase monitoring |
| Probe Option | 3300 XL 8 mm Reverse Mount Probe (Option 16) |
| Standoff Adapter Length | 1.1 in (27.9 mm) (Option 11) |
| Probe Penetration Length | 165 mm (6.5 in) |
| Fittings Option | Standard fittings kit (Option 07) |
| Mounting Thread | 3/4-14 NPT (Option 02) |
| Measurement Technology | Eddy current proximity measurement |
| Frequency Response | 0 to 6.5 kHz (+0, -3 dB) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3.0 in) |
| Housing Material | Glass-filled Polyphenylene Sulfide (PPS) |
| Sleeve Material | Stainless Steel |
| System Compatibility | Bently Nevada 3300 XL 8 mm Proximity Transducer System |
| Environmental Approvals | Configuration dependent (hazardous-area options available) |
| Protection Rating | IP66 / Type 4X (typical configuration) |
| Operating Temperature | −51°C to +105°C |
| Storage Temperature | −51°C to +177°C |
| Application | Turbines, compressors, pumps, motors, generators, rotating machinery monitoring |
| Mounting Type | External machine housing reverse-mount installation |
| Dimensions (H × W × D) | Approx. 420 × 95 × 92 mm |
| Weight | Approx. 2.1–2.8 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330881-16-11-165-07-02 used for?
It is a PROXPAC® XL reverse-mount proximity transducer assembly used for monitoring shaft vibration, position, and speed in rotating machinery.
Q2: What does option 16 mean?
Option 16 indicates a 3300 XL 8 mm reverse-mount proximity probe configuration.
Q3: What does option 11 specify?
Option 11 defines the standoff adapter length, in this case 1.1 in (27.9 mm).
Q4: What is the probe penetration length?
This model uses a 165 mm (6.5 in) probe penetration length.
Q5: What fittings are included?
Option 07 provides a standard fittings kit for installation.
Q6: What mounting thread is used?
It uses a 3/4-14 NPT mounting thread.
Q7: Is the weight exact?
No. Bently Nevada does not publish exact weights for each configuration. Based on similar PROXPAC XL units, it is typically around 2.1–2.8 kg.
Q8: What should be verified before replacement?
Check probe option, standoff length, penetration depth, fittings configuration, mounting thread, and compatibility with the existing 3300 XL system.
