Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330901-00-40-05-02-00 |

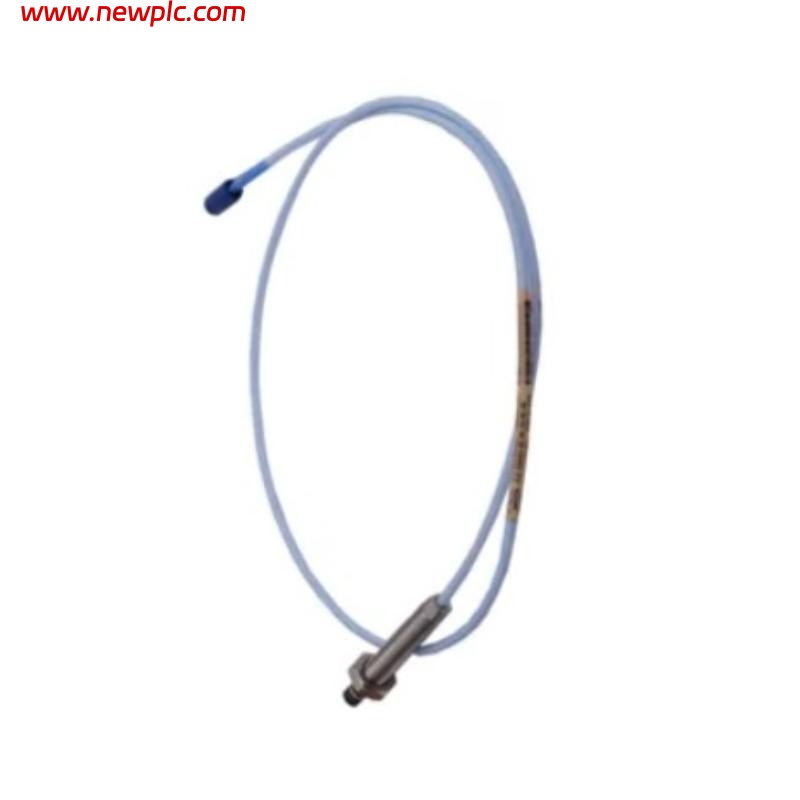

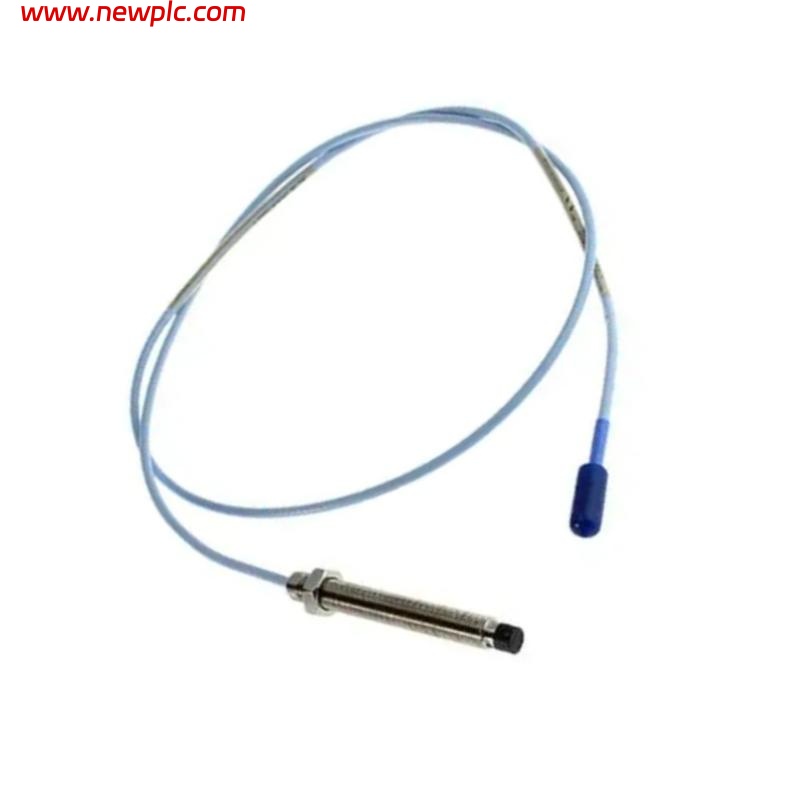

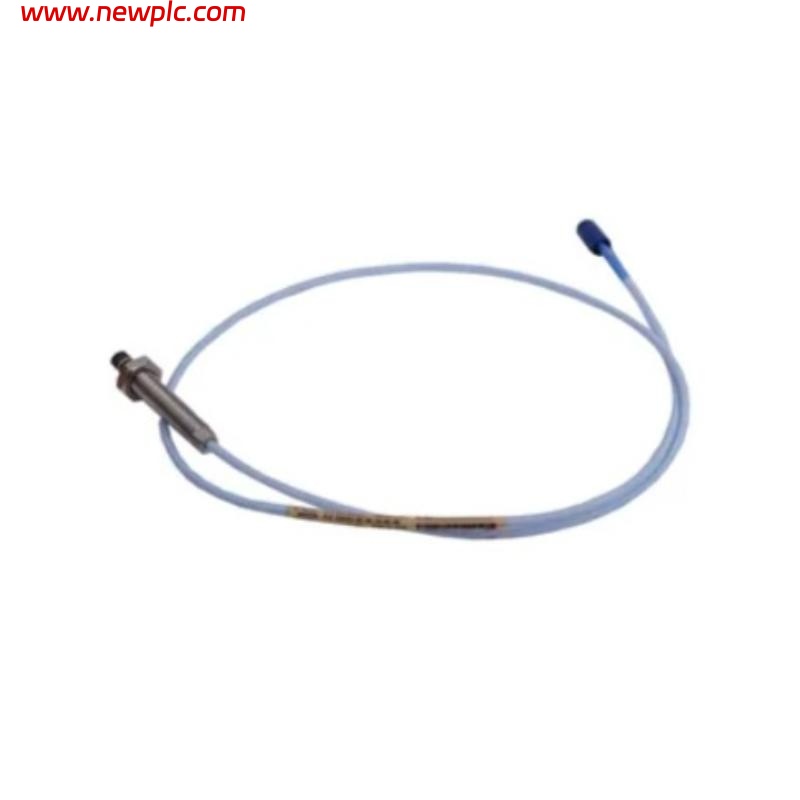

| Series | 3300 NSv Proximity Probe |
| Total Length | 0.5 meter |
| Weight | 0.3 kg |
| Probe Type | Non-contact eddy current proximity probe |
| Case Material | AISI 304 stainless steel |
| Sensing Range | 2 mm (80 mils) nominal |
| Linear Range | 1.0 mm (40 mils) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) ±6% |
| Operating Temperature | –35°C to +175°C |
| Connector Type | Miniature coaxial connector |
| Cable Type | Armored or non-armored options |
| Typical Applications | Small shaft vibration and position measurement |
FAQ
FAQ
Q1: What type of equipment is this probe suitable for?
A1: Mainly for monitoring shaft vibration and position on small shafts or compact machinery.
Q2: What is the sensing range of this probe?
A2: The nominal sensing range is 2 mm, with a linear range of 1 mm.
Q3: What is the weight of this product?
A3: 0.3 kg.
Q4: What is the operating temperature range?
A4: –35°C to +175°C.
Q5: What material is the probe housing made of?
A5: Made of AISI 304 stainless steel for excellent corrosion resistance.
Q6: What cable options are available?
A6: Options include armored or non-armored cables for different site requirements.
Q7: What is the sensitivity?
A7: Sensitivity is 7.87 mV/µm (200 mV/mil) ±6%.
Q8: What type of connector does it use?
A8: It uses a miniature coaxial connector for quick installation and maintenance.
