Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330902‑00‑25‑10‑02‑05 |

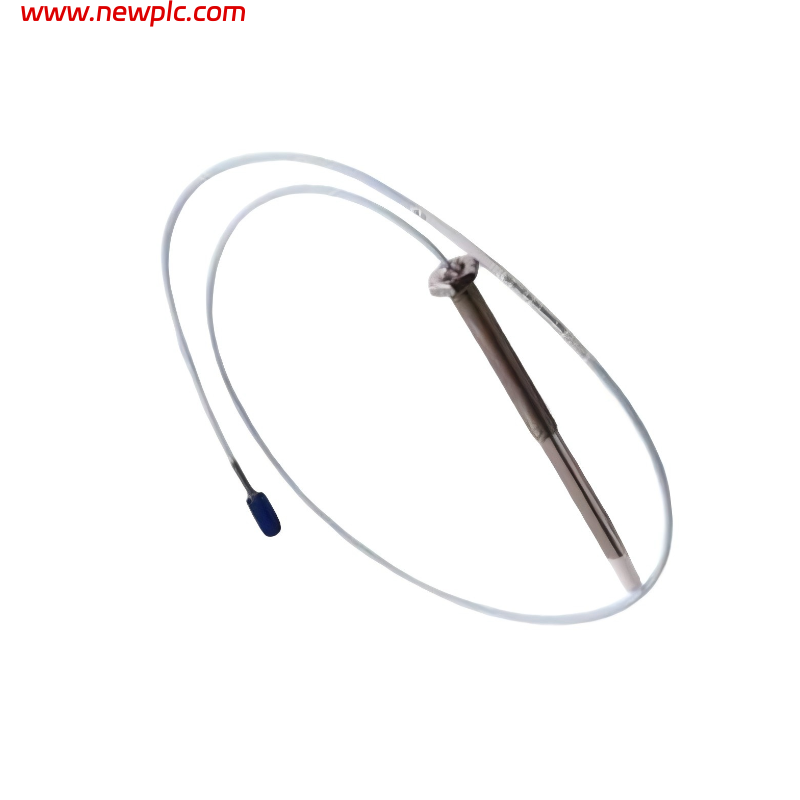

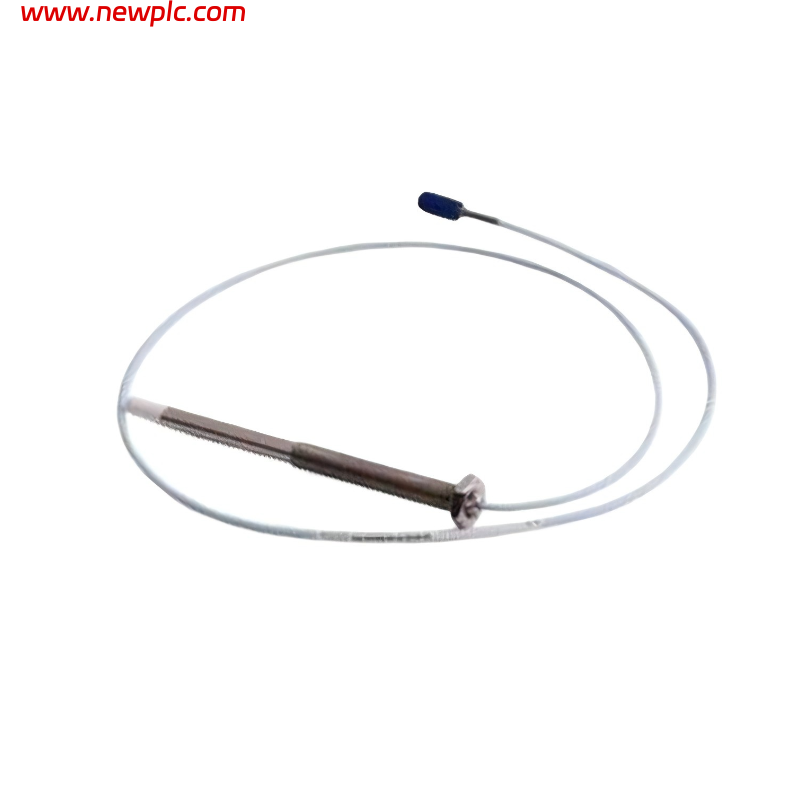

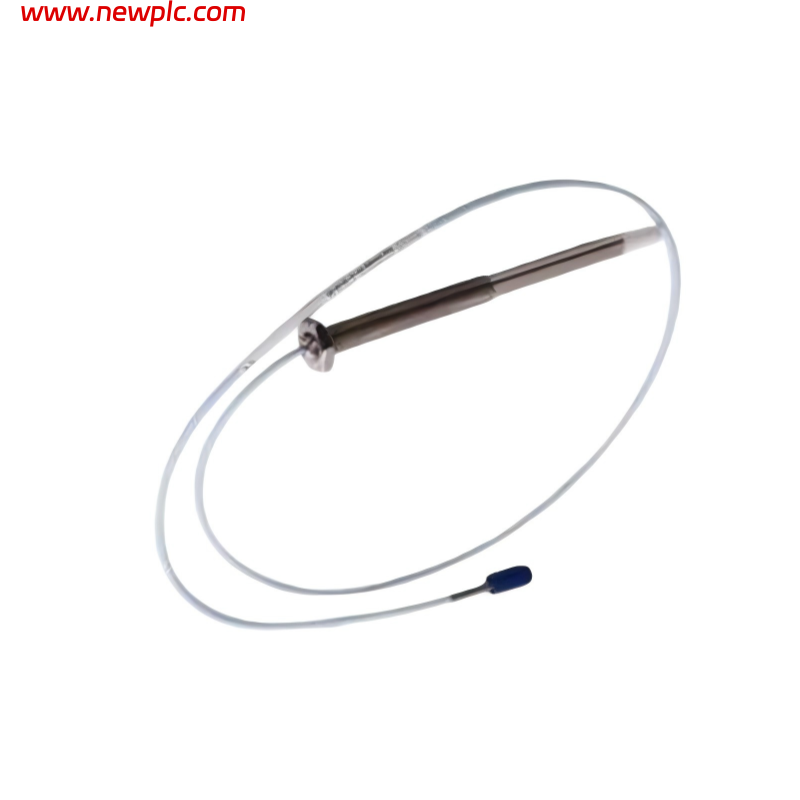

| Series | 3300 NSv Proximity Probe |
| Function | Measures radial and axial shaft displacement and vibration, provides phase (Keyphasor) signal |
| Output Type | Analog differential signal |
| Cable | 75 Ω coaxial cable |
| Mounting | 1/4‑28 UNF threaded mount with sealing ring |
| Recommended Gap | 1.0 mm |
| Measurement Range | 0.25–1.75 mm |
| Sensitivity | 7.87 V/mm |
| Frequency Response | 0–10 kHz |
| Operating Temperature | –52 °C to +177 °C |
| Vibration / Shock Resistance | Suitable for high vibration environments |
| Minimum Target Diameter | ≥ 8.9 mm |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the main purpose of the 330902‑00‑25‑10‑02‑05 probe?
A1: To monitor radial and axial shaft displacement, vibration, and phase in rotating machinery.
Q2: What type of output signal does it provide?
A2: Analog differential signal.
Q3: What environment and temperature is it suitable for?
A3: –52 °C to +177 °C, high vibration industrial environments.
Q4: How is it mounted and what is the recommended gap?
A4: 1/4‑28 UNF threaded mount with 1.0 mm recommended gap.
Q5: What is the measurement range and sensitivity?
A5: Measurement range 0.25–1.75 mm; sensitivity 7.87 V/mm.
Q6: What is the frequency response?
A6: 0–10 kHz.
Q7: What are the probe dimensions and weight?
A7: Total Length : 1.0 meter; weight is 0.15 kg.
Q8: What are typical applications?
A8: Shaft displacement monitoring, vibration monitoring, Keyphasor signal acquisition, and machinery protection.
