Technical Specifications
| Parameter | Specification |
|---|---|

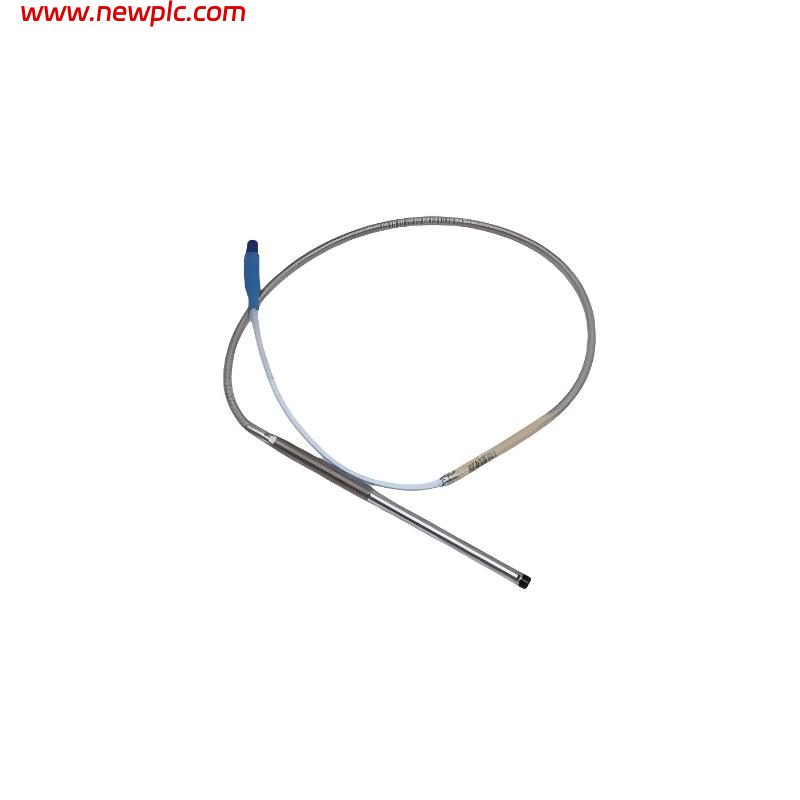

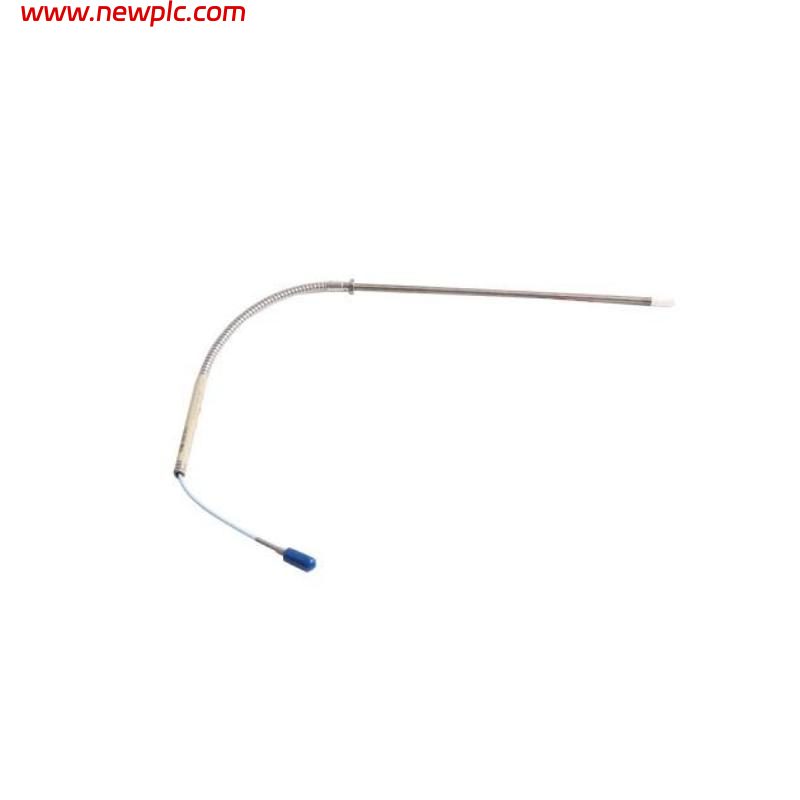

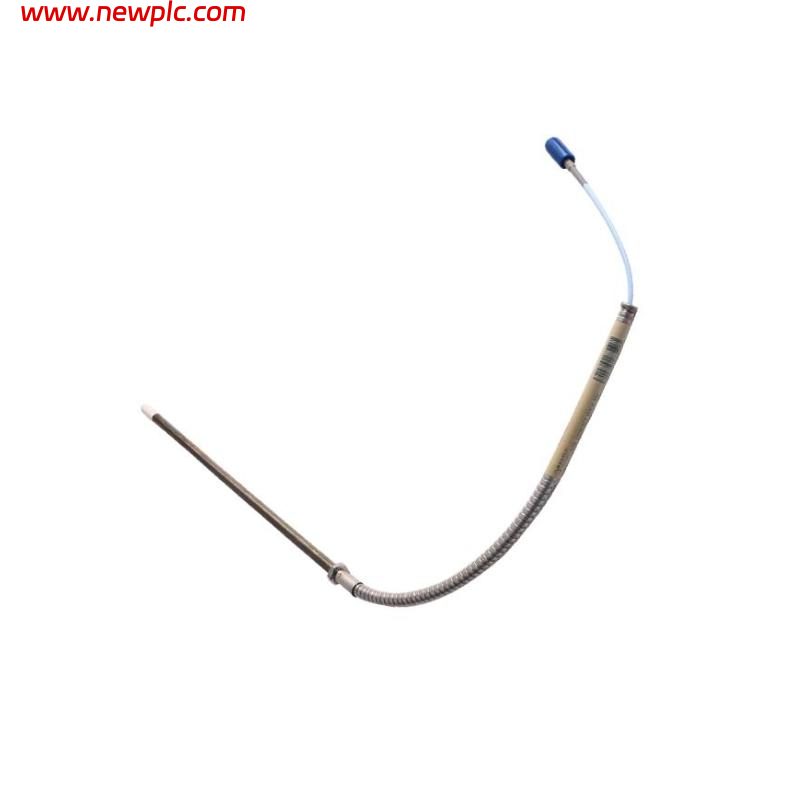

| Product Name | Bently Nevada 330902-00-90-05-02-00 |
| Product ID | 330902-00-90-05-02-00 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL NSv Proximity Probe |
| Series | 3300 XL NSv Proximitor® Transducer System |
| Function | Non-contact measurement of shaft vibration and position in rotating machinery |
| Measurement Technology | Eddy current proximity sensing |
| Probe Type | NSv 5 mm probe |
| Thread Type | 1/4-28 UNF |
| Case Length | 228.6 mm (9.0 in) |
| Total System Length | 0.5 m (20 in) |
| Connector Type | Miniature coaxial ClickLoc™ (Option 02) |
| Cable Type | 75 Ω triaxial integral cable |
| Operating Temperature | −52°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL NSv Proximitor® system |
| Application | Turbines, compressors, pumps, motors, generators |
| Dimensions & Weight | Probe diameter 5 mm, case length 228.6 mm, total assembly length approx. 700–750 mm, cable diameter approx. 4.5–5.0 mm, weight approx. 0.15–0.25 kg |
FAQ
FAQ
Q1: What is this model used for?
It is used for non-contact measurement of shaft vibration and position in rotating machinery.
Q2: What does “90” indicate in the part number?
It indicates a probe case length of 9.0 inches (228.6 mm).
Q3: What does “05” indicate?
It indicates a total system length of 0.5 meters (20 inches).
Q4: What is the probe size?
It uses a 5 mm NSv proximity probe for compact machinery applications.
Q5: Can it be used with standard 3300 XL 8 mm systems?
No, NSv 5 mm probes require matching NSv system components.
Q6: What is the weight of this assembly?
Approximately 0.15–0.25 kg depending on cable configuration.
Q7: What are the main dimensions?
Probe diameter 5 mm, case length 228.6 mm, total assembly length about 700–750 mm.
Q8: What should be checked before replacement?
Verify probe size, case length, system length, connector type, and full NSv system compatibility.
