Technical Specifications
| Item | Specification |
|---|---|
| Model | 330905-00-05-05-02-CN |
| Brand | Bently Nevada |

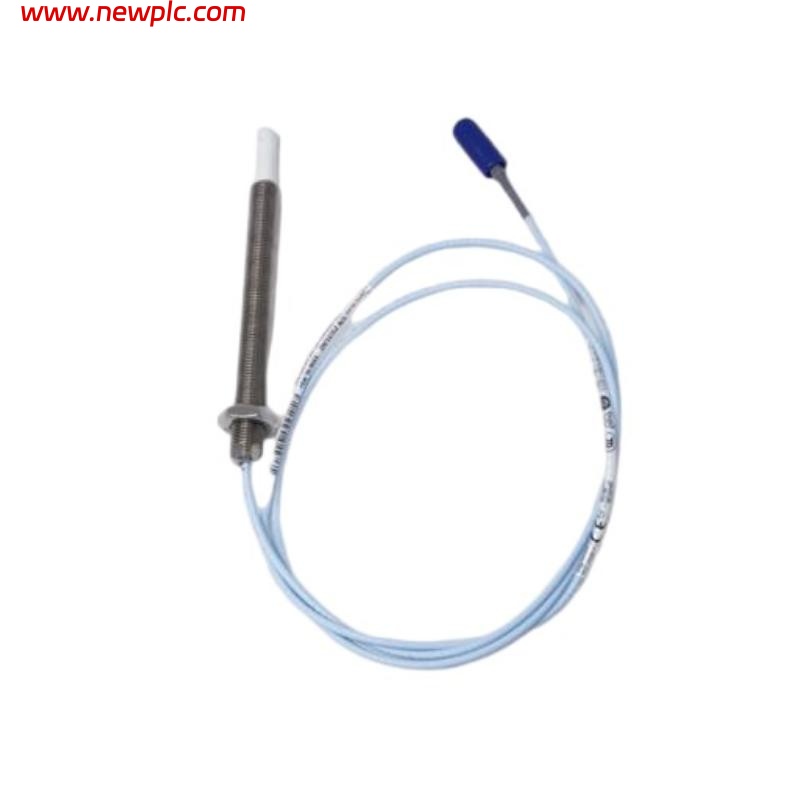

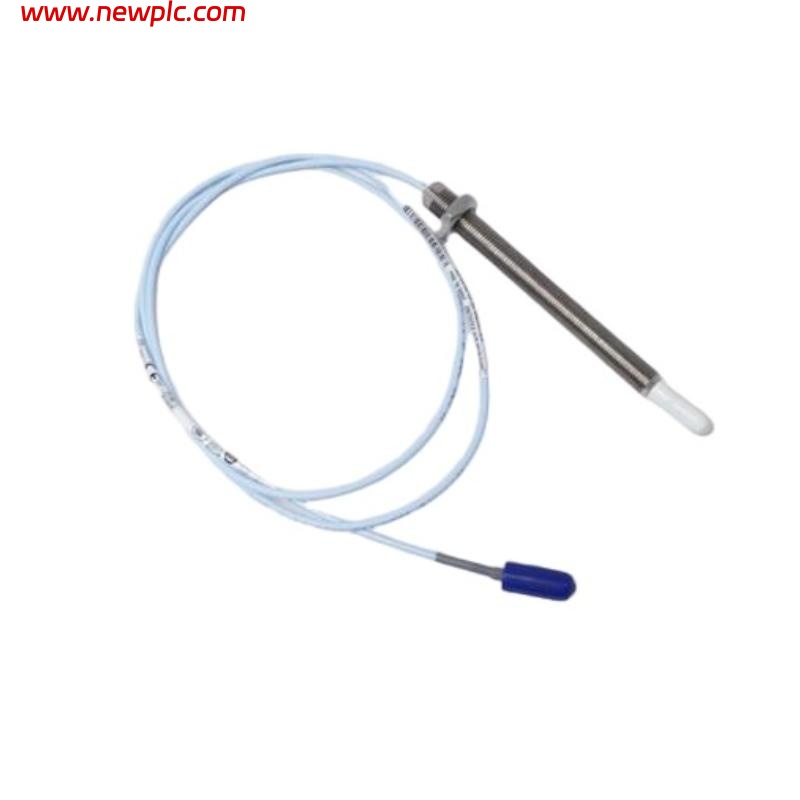

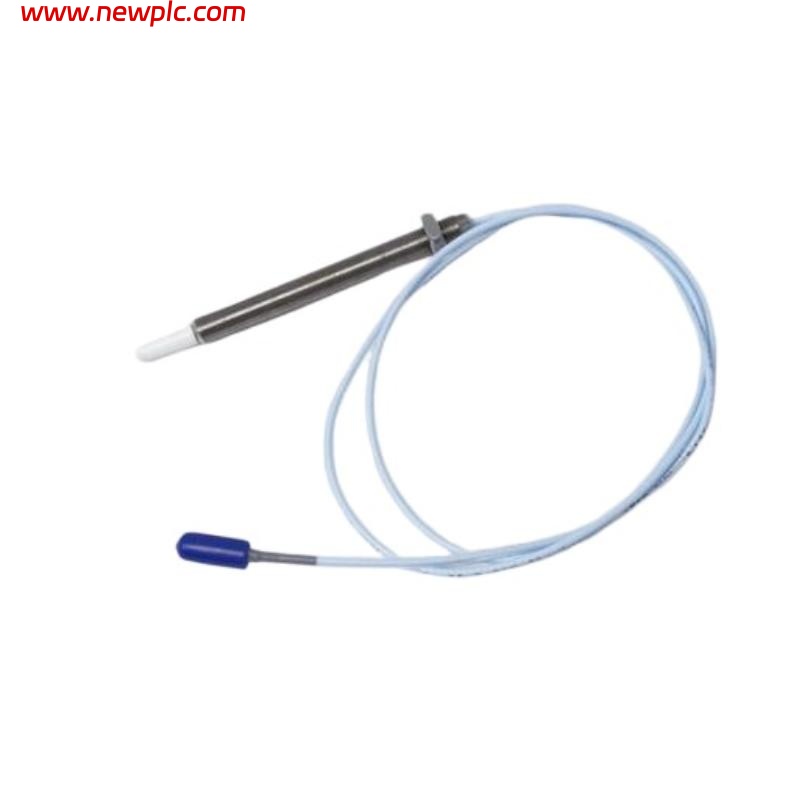

| Type | 3300 NSv Proximity Probe |
| Probe Diameter | 8 mm |
| Measurement Range | 0.25 ~ 2.0 mm |
| Sensitivity | 10 mV/μm |
| Output Type | Differential voltage output |
| Frequency Range | DC ~ 12 kHz |
| Supply Voltage | 18 ~ 30 V DC |
| Supply Current | 20 mA (typical) |
| Operating Temperature | -55 ~ +125 ℃ |
| Storage Temperature | -55 ~ +150 ℃ |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.15 kg |
| Connector Type | CN series connector |
| Applications | Rotating machinery shaft displacement monitoring, vibration analysis, protection systems |
FAQ
FAQ
Q1: What type of sensor is this?
It is a 3300 NSv proximity probe for non-contact shaft displacement measurement.
Q2: What is the probe diameter?
The probe diameter is 8 mm.
Q3: What is the measurement range?
The measurement range is 0.25 ~ 2.0 mm.
Q4: What type of output does it provide?
Differential voltage output.
Q5: What are the power requirements?
Operating voltage is 18 ~ 30 V DC, typical current 20 mA.
Q6: What is the operating temperature range?
Operating temperature is -55 ~ +125 ℃.
Q7: How is the probe connected?
Equipped with CN series connector.
Q8: What are typical applications?
Used for rotating machinery shaft displacement monitoring, vibration analysis, and protection systems.
