Technical Specifications
| Item | Specification |
|---|---|

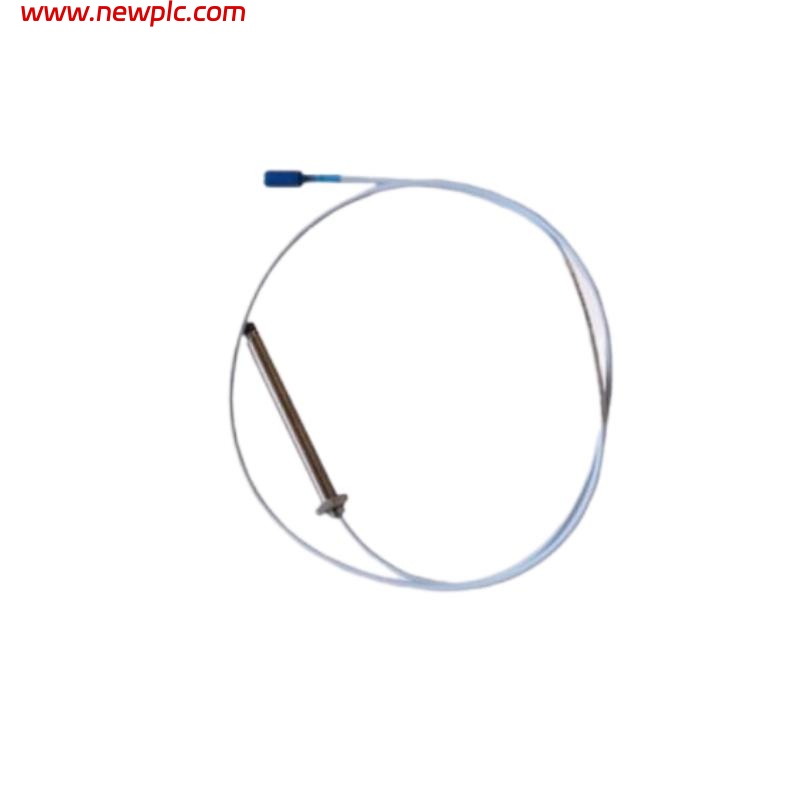

| Model | Bently Nevada 330905-00-10-10-02 |
| Type | 3300 XL Proximitor Sensor System |
| Product Category | Machinery Condition Monitoring Sensor |
| Product Family | 3300 XL Series |
| Function | Shaft vibration, displacement, and position measurement |
| Measurement Principle | Eddy-current proximity sensing |
| Probe Type | 10 mm eddy-current probe |
| Measurement Range | ±5 mm |
| Sensitivity | Standard for 10 mm 3300 XL probes |
| Frequency Response | Suitable for vibration and displacement monitoring |
| Output | Conditioned analog voltage proportional to displacement |
| Housing Material | Stainless steel |
| Protection Rating | Industrial sealed, oil and vibration resistant |
| Cable Length | 10 m integral coaxial cable |
| Connector Type | 3300 XL standard proximitor connector |
| Operating Temperature Range | –35 °C to +177 °C |
| Application Environment | Industrial rotating machinery |
| Dimensions | 10 mm probe diameter, 10 m cable |
| Weight | 0.75 kg |
FAQ
FAQ
Q1: What is the primary purpose of the 330905-00-10-10-02 sensor?
It is designed to monitor shaft vibration, displacement, and axial position in rotating machinery.
Q2: What sensing technology does this model use?
It uses eddy-current proximity sensing to convert distance changes into a stable analog voltage signal.
Q3: What is the probe diameter of this sensor?
The probe diameter is 10 mm.
Q4: What measurement range does it support?
The supported measurement range is ±5 mm.
Q5: How is the sensor connected to the monitoring system?
It is supplied with a 10 m integral coaxial cable and a standard 3300 XL connector.
Q6: Is this sensor suitable for harsh industrial environments?
Yes, the stainless-steel housing and industrial sealing provide reliable operation in oil, dust, and vibration conditions.
Q7: What is the operating temperature range?
The sensor operates from –35 °C to +177 °C.
Q8: What are the dimensions and weight of the sensor system?
The probe diameter is 10 mm, the cable length is 10 m, and the weight is 0.75 kg.
