Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 330905-00-25-50-02-00 |

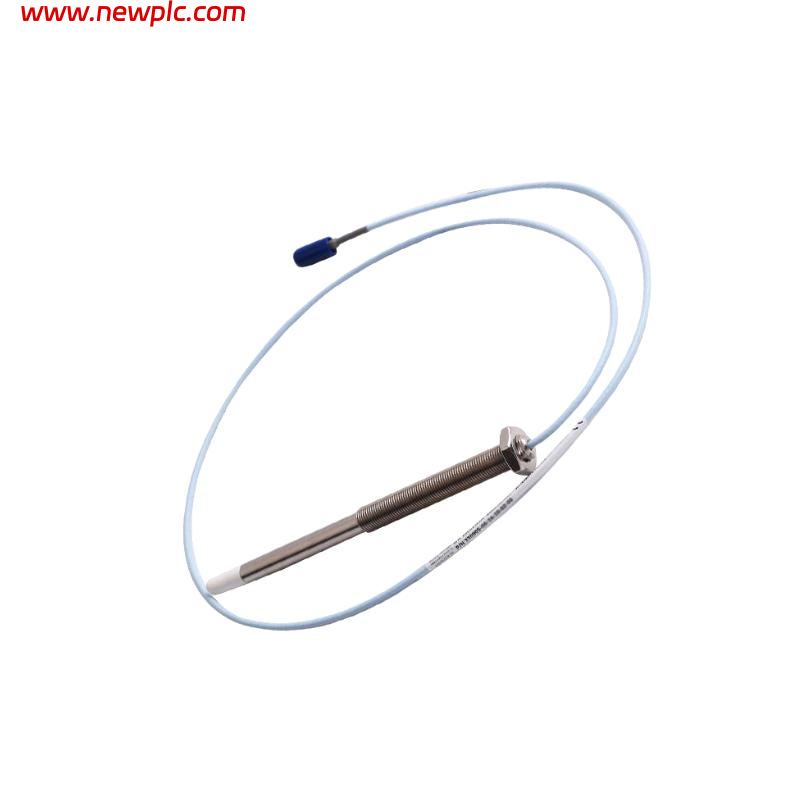

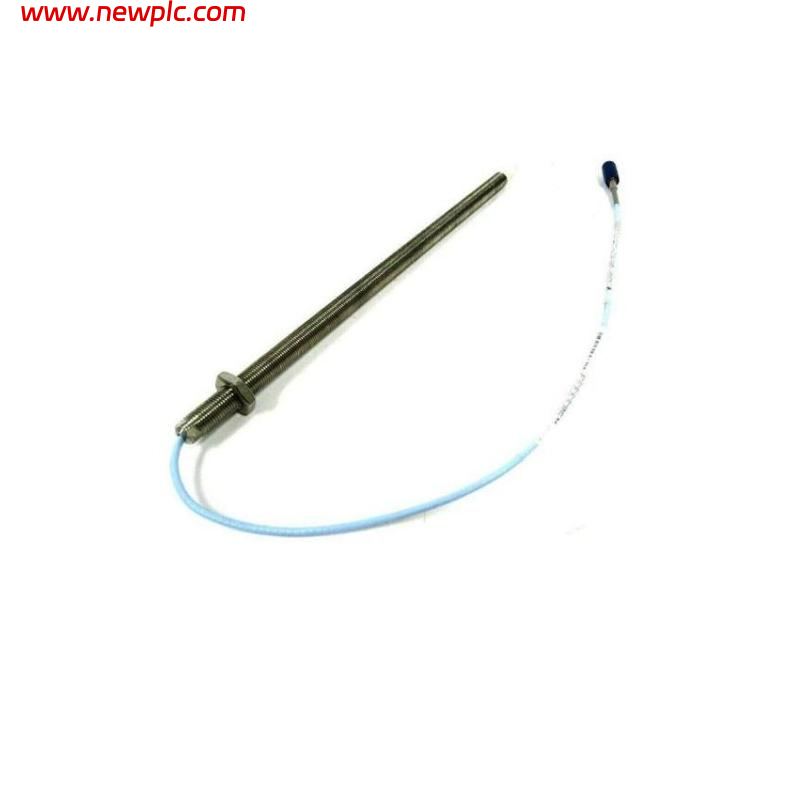

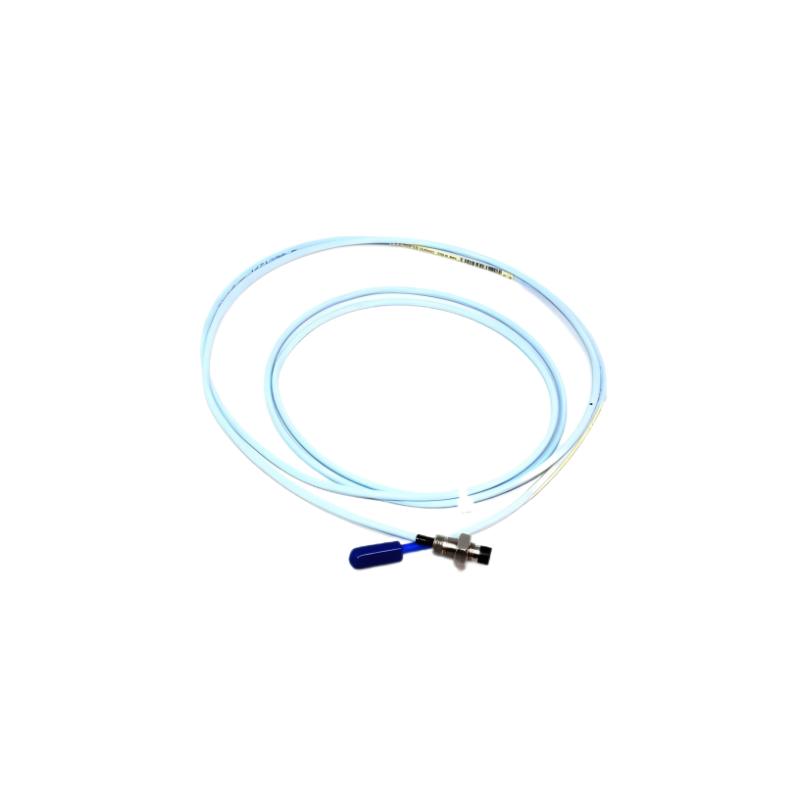

| Product Type | 3300 XL NSv Proximity Probe |
| Series | 3300 XL NSv Proximity Transducer System |
| Function | Non-contact eddy current sensor for shaft vibration, shaft displacement, axial position, and rotational speed measurement |
| Probe Thread | M10 × 1 Metric Thread |
| Probe Type | 3300 NSv Standard Mount Probe |
| Armor Option | Without Armor |
| Unthreaded Length | 0 mm |
| Case Length | 250 mm |
| Total Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | No Agency Approval Required |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Measurement Principle | Eddy Current Displacement Sensing |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -34°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Application | Centrifugal compressors, turbines, pumps, motors, generators, and rotating machinery with limited installation space |
| Compatibility | 3300 XL NSv Proximitor® Sensor and 3300 NSv Extension Cable |
| Dimensions | Approx. 250 × 10 × 10 mm (Probe body, excluding connector) |
| Weight | Approx. 0.18 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Bently Nevada 330905-00-25-50-02-00 used for?
The 330905-00-25-50-02-00 is used for non-contact measurement of shaft vibration, shaft displacement, axial position, and rotational speed in rotating equipment. It is commonly installed on compressors, turbines, pumps, and other critical machinery.
Q2: What does the part number 330905-00-25-50-02-00 indicate?
The part number identifies a 3300 NSv proximity probe with an M10 × 1 thread, 0 mm unthreaded length, 250 mm case length, 5.0 m cable, standard ClickLoc™ connector, and no agency approval option.
Q3: What is the difference between the 3300 XL NSv probe and standard 3300 XL probes?
The 3300 XL NSv series is designed for applications with limited installation space, especially small-diameter shafts and compact machinery where traditional 8 mm or 11 mm probes may not be suitable.
Q4: What are the dimensions and weight of the Bently Nevada 330905-00-25-50-02-00?
The probe has approximate dimensions of 250 × 10 × 10 mm and weighs approximately 0.18 kg.
Q5: Which systems are compatible with this proximity probe?
The probe is designed to operate with the Bently Nevada 3300 XL NSv Proximitor® Sensor and compatible 3300 NSv extension cables.
Q6: Is the 330905-00-25-50-02-00 suitable for hazardous areas?
This configuration has no agency approval requirement. For hazardous-area installations, a version with the appropriate approval option should be selected according to site requirements.
Q7: What should be checked before installing this proximity probe?
Before installation, verify the M10 × 1 thread size, probe length, mounting clearance, cable routing, connector type, probe gap setting, and compatibility with the matching Proximitor® sensor.
Q8: What are the advantages of the Bently Nevada 330905-00-25-50-02-00?
The probe provides accurate non-contact measurement, compact installation capability, stable signal performance, reliable operation in industrial environments, and compatibility with Bently Nevada machinery protection systems.
