Technical Specifications
| Item | Specification |
|---|---|
| Model | 330909-00-20-10-02 |

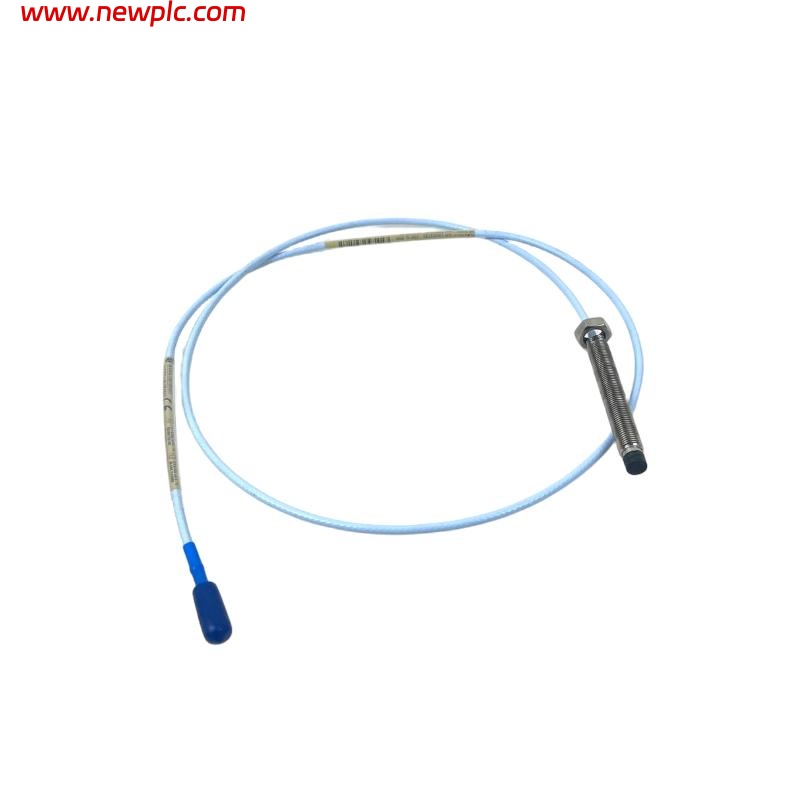

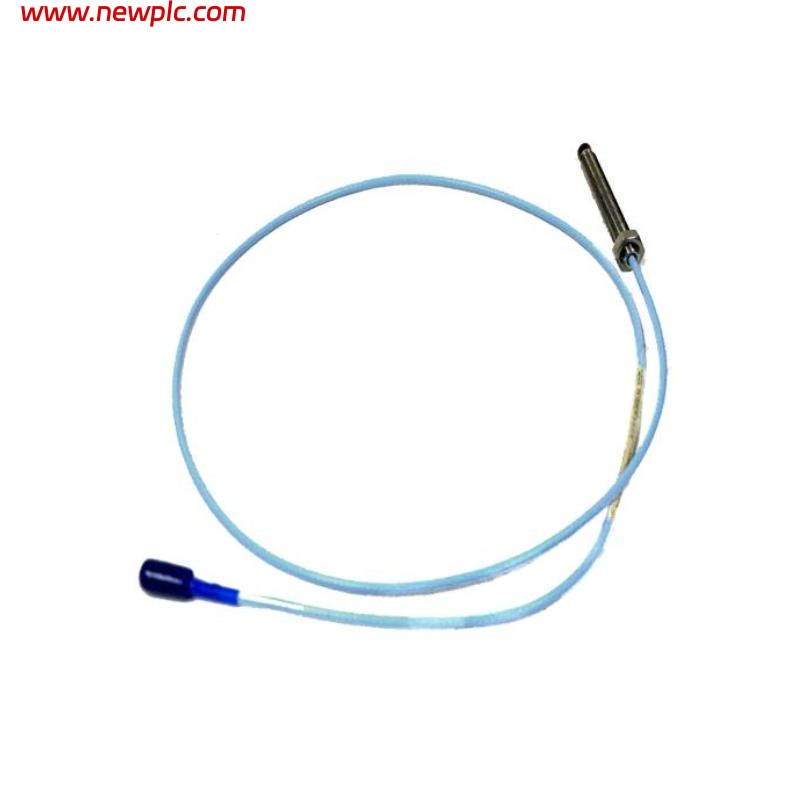

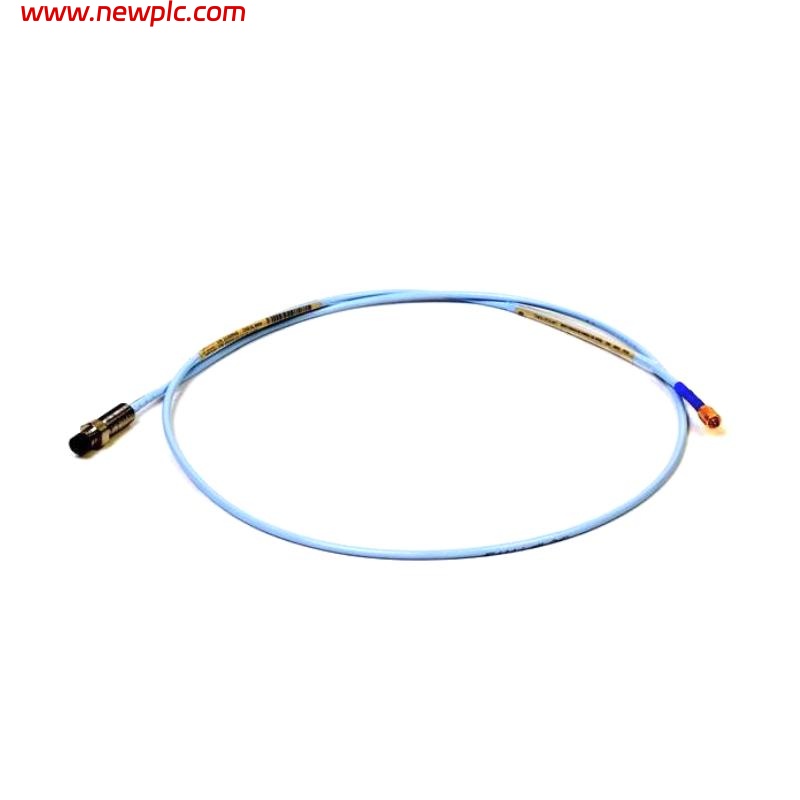

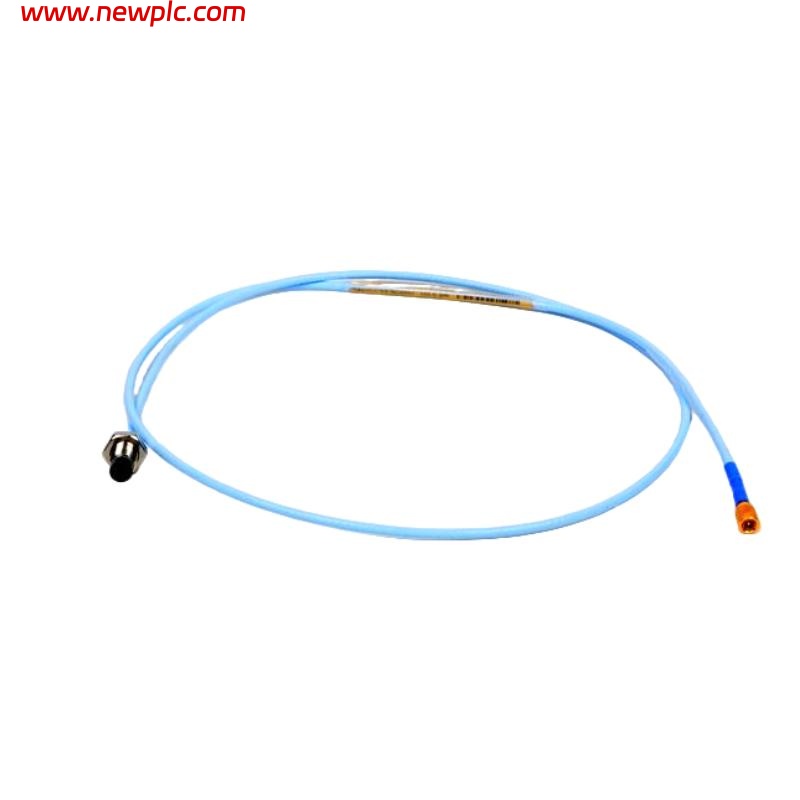

| Product Type | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| Total Length | 1.0 meter |
| Output Signal | AC voltage proportional to displacement |
| Measuring Range | ±0.25 mm typical |
| Linearity | ≤ ±1% of full scale |
| Resolution | Sub-micron accuracy |
| Frequency Response | DC to 10 kHz |
| Target Material | Ferromagnetic metals, primarily steel |
| Temperature Range | -40°C to +125°C |
| Shock Resistance | Rated for industrial shock |
| Vibration Resistance | Designed for high-speed rotating machinery |
| Housing Material | Stainless steel probe body |
| Tip Material | Non-magnetic stainless steel |
| Installation Method | Threaded or custom mounting |
| Electrical Connection | Coaxial cable interface |
| Environmental Protection | Sealed for industrial environments |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the primary purpose of this proximity probe?
A1: It measures non-contact displacement of rotating machinery components with high precision.
Q2: Can this probe operate under high-vibration conditions?
A2: Yes, it maintains accurate measurement even in high-speed vibrating machinery.
Q3: What type of target materials is this probe compatible with?
A3: It is optimized for ferromagnetic metals, mainly steel.
Q4: Does the probe need calibration before use?
A4: Yes, calibration ensures linearity and measurement accuracy.
Q5: What temperature range can the probe operate within?
A5: It functions reliably between -40°C and +125°C.
Q6: How does the probe produce its output signal?
A6: It generates an AC voltage proportional to the distance between the probe tip and the target.
Q7: How is the probe installed?
A7: It can be installed using threaded fixtures or custom mounting solutions.
Q8: Can this probe monitor both displacement and vibration simultaneously?
A8: Yes, it provides high-resolution displacement measurements suitable for vibration analysis.
