Technical Specifications
| Item | Specification |
|---|---|
| Model | 330909-00-28-10-02-00 |

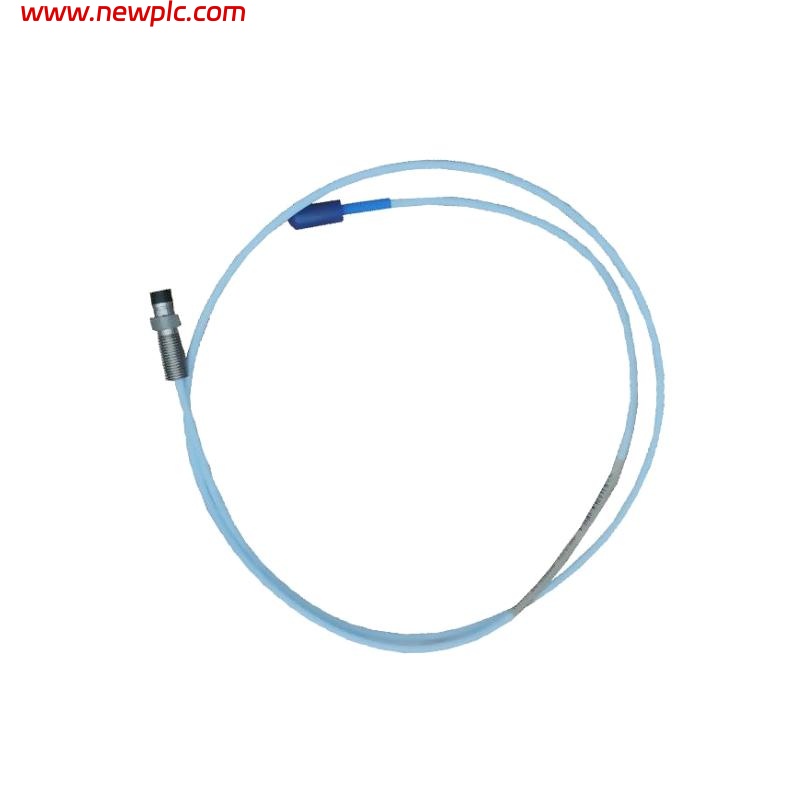

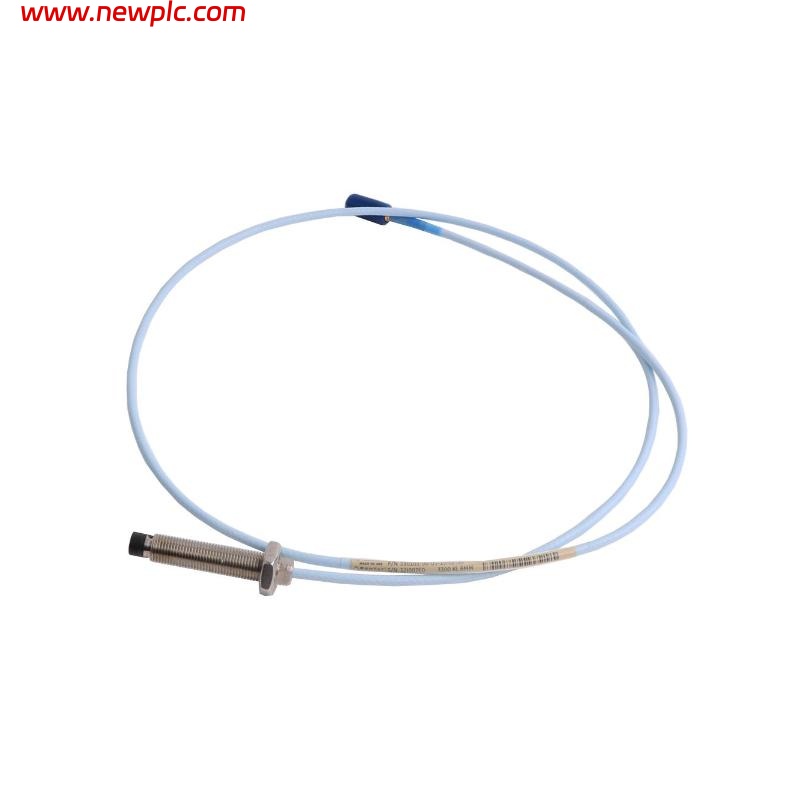

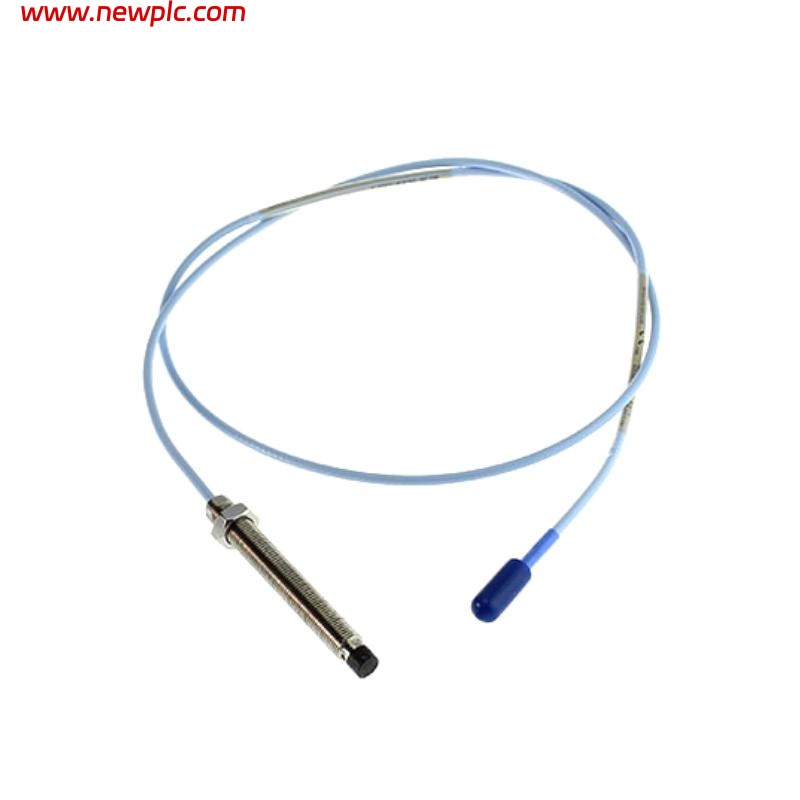

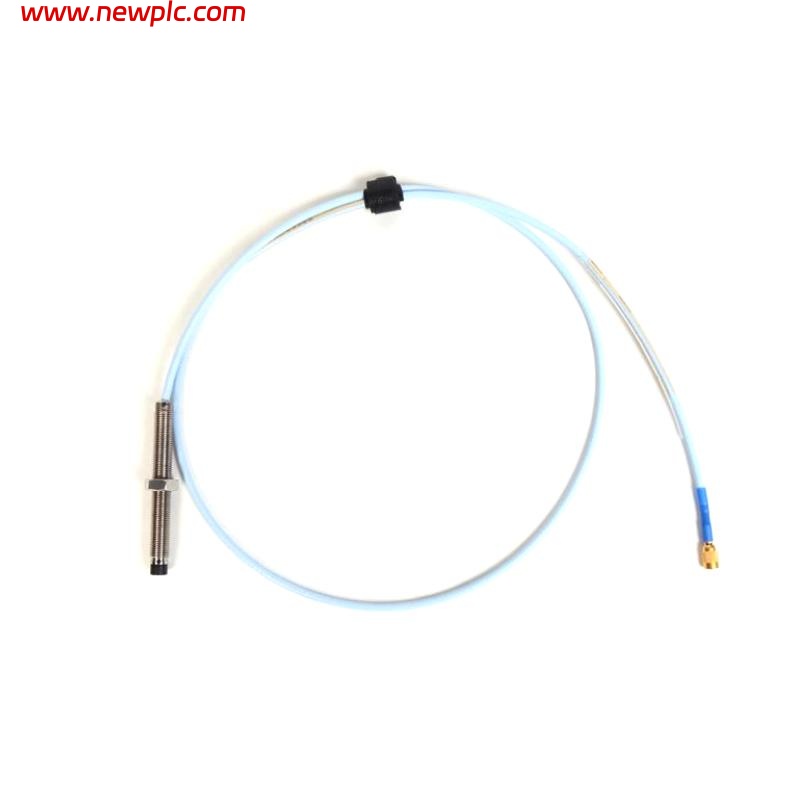

| Product Type | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| Total Length | 1.0 meter |
| Output Signal | AC voltage proportional to displacement |
| Measuring Range | ±0.25 mm typical |
| Linearity | ≤ ±1% of full scale |
| Resolution | Sub-micron accuracy |
| Frequency Response | DC to 10 kHz |
| Target Material | Ferromagnetic metals, primarily steel |
| Temperature Range | -40°C to +125°C |
| Shock Resistance | Industrial shock rated |
| Vibration Resistance | Suitable for high-speed rotating machinery |
| Housing Material | Stainless steel probe body |
| Tip Material | Non-magnetic stainless steel |
| Installation Method | Threaded or custom mounting |
| Electrical Connection | Coaxial cable interface |
| Environmental Protection | Sealed for industrial use |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the main purpose of this 3300 NSv proximity probe?
A1: It provides precise non-contact measurement of shaft displacement and vibration in rotating machinery.
Q2: Is it suitable for high-speed vibrating environments?
A2: Yes, it maintains accurate measurements even under high-vibration conditions.
Q3: What types of materials can this probe measure?
A3: It is optimized for ferromagnetic metals, primarily steel.
Q4: Does the probe require calibration?
A4: Yes, calibration ensures linearity and accurate displacement readings.
Q5: What temperature range does the probe operate in?
A5: It functions reliably from -40°C to +125°C.
Q6: How is the signal output generated?
A6: The probe outputs an AC voltage proportional to the distance between the probe tip and the target.
Q7: How is the probe mounted?
A7: Threaded mounting or custom fixtures allow secure and precise placement.
Q8: Can it monitor displacement and vibration at the same time?
A8: Yes, it provides high-resolution readings suitable for simultaneous displacement and vibration monitoring.
