Technical Specifications
| Item | Specification |
|---|---|
| Model | 330909-10-60-10-11-05 |

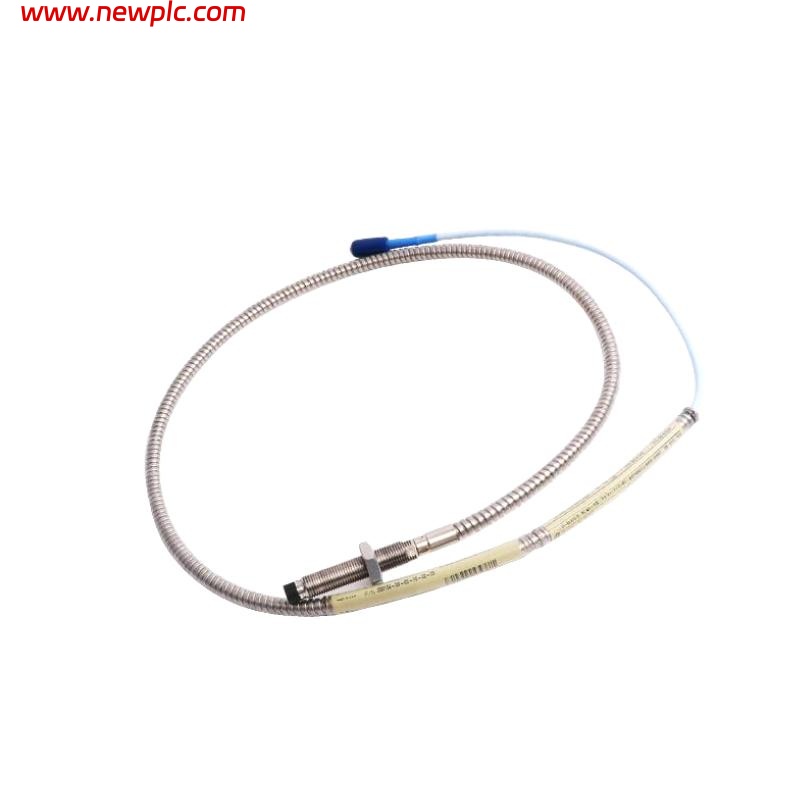

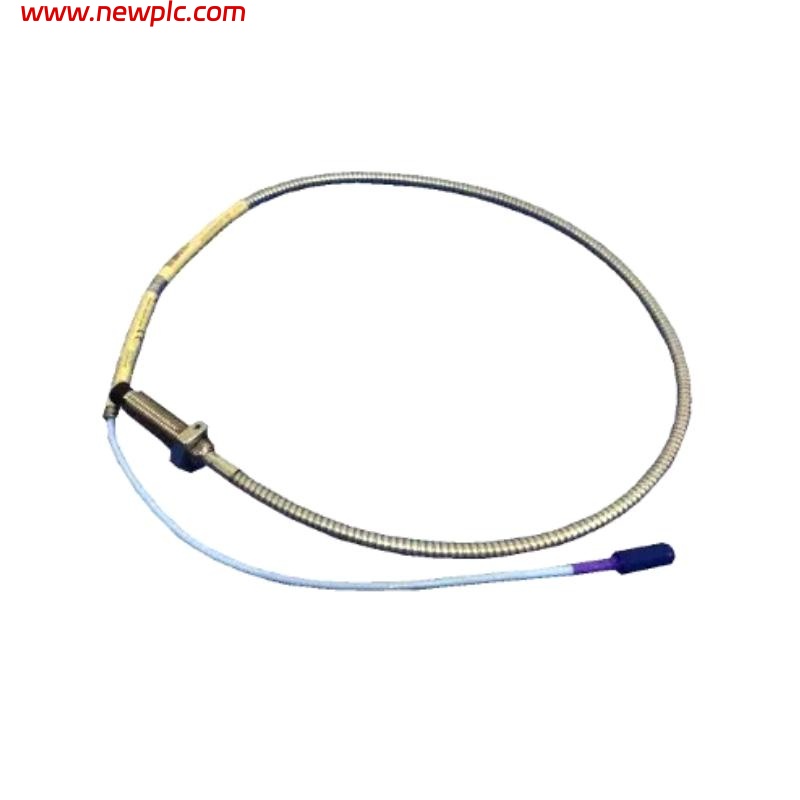

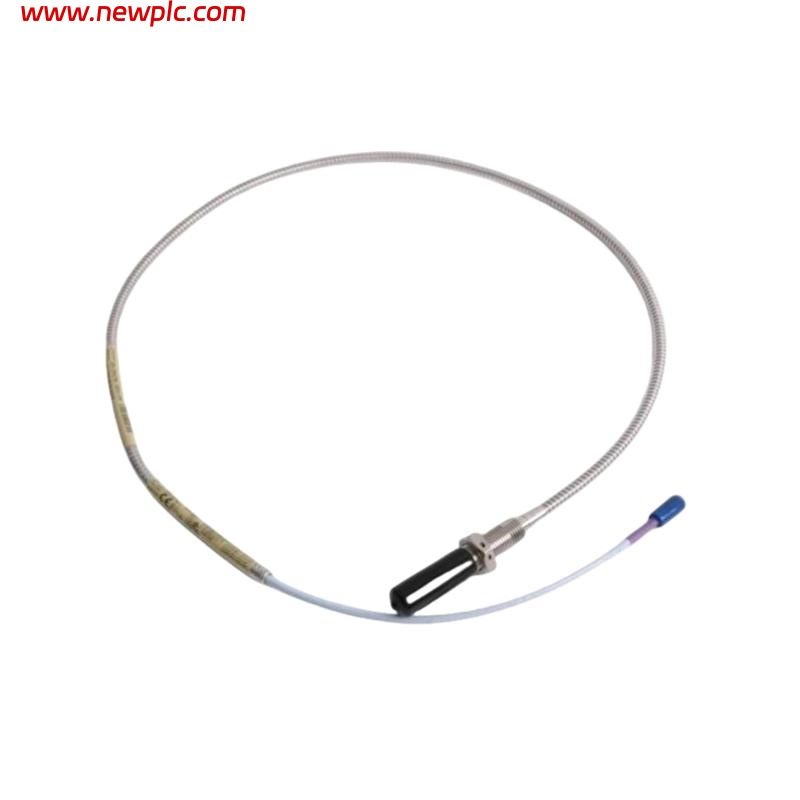

| Product Type | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| Total Length | 1.0 meter |
| Output Signal | AC voltage proportional to displacement |
| Measuring Range | ±0.25 mm typical |
| Linearity | ≤ ±1% of full scale |
| Resolution | Sub-micron accuracy |
| Frequency Response | DC to 10 kHz |
| Target Material | Ferromagnetic metals, primarily steel |
| Temperature Range | -40°C to +125°C |
| Shock Resistance | Industrial shock rated |
| Vibration Resistance | Suitable for high-speed rotating machinery |
| Housing Material | Stainless steel probe body |
| Tip Material | Non-magnetic stainless steel |
| Installation Method | Threaded or custom mounting |
| Electrical Connection | Coaxial cable interface |
| Environmental Protection | Sealed for industrial use |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: How does the 3300 NSv probe ensure high precision in displacement measurement?
A1: It uses eddy current sensing with sub-micron resolution, producing an AC voltage proportional to the displacement of the target.
Q2: Can this probe be used for vibration monitoring as well as static displacement?
A2: Yes, its frequency response up to 10 kHz allows it to capture both vibration and steady-state shaft movement accurately.
Q3: How does the probe maintain accuracy in environments with electromagnetic interference?
A3: Shielded coaxial cable and internal circuitry reduce susceptibility to EMI, ensuring stable output signals.
Q4: What mounting considerations are required for proper operation?
A4: The probe should be rigidly mounted and aligned perpendicular to the target surface to maintain measurement accuracy and linearity.
Q5: How does temperature affect the probe’s performance?
A5: The probe is designed to maintain linear output and resolution across -40°C to +125°C, compensating for thermal expansion and contraction.
Q6: Is this probe suitable for continuous monitoring in industrial environments?
A6: Yes, its sealed stainless steel housing protects it from dust, moisture, and industrial contaminants.
Q7: Can multiple probes be installed on a single shaft?
A7: Yes, multiple probes can be used along the shaft to monitor displacement and vibration at different points for comprehensive diagnostics.
Q8: How does the probe respond to mechanical shocks or sudden impacts?
A8: The probe’s rugged design and stainless steel housing absorb shocks while maintaining accurate measurements.
