Technical Specifications
| Item | Specification |
|---|---|

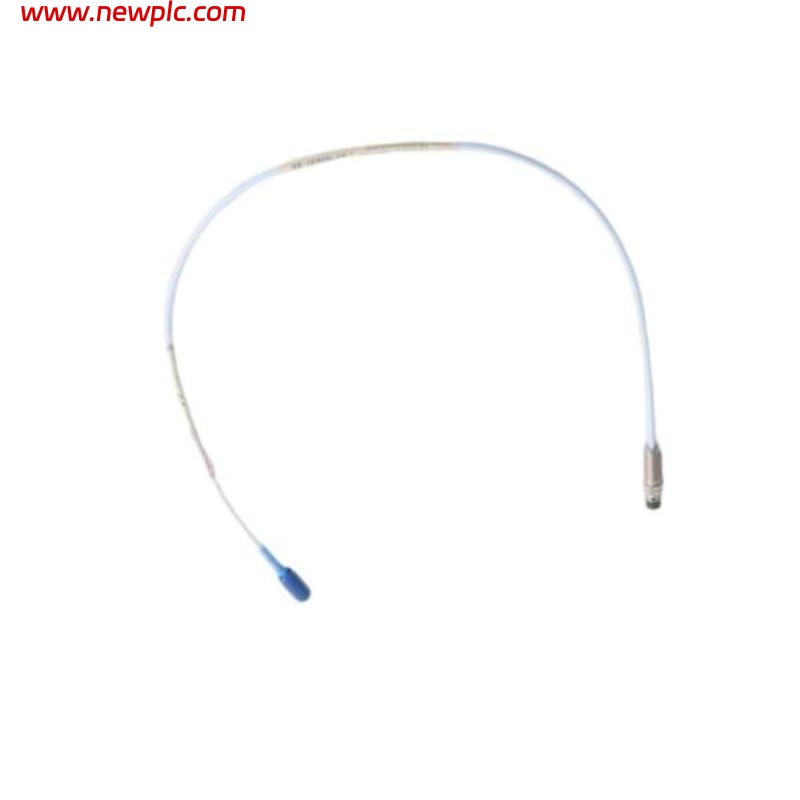

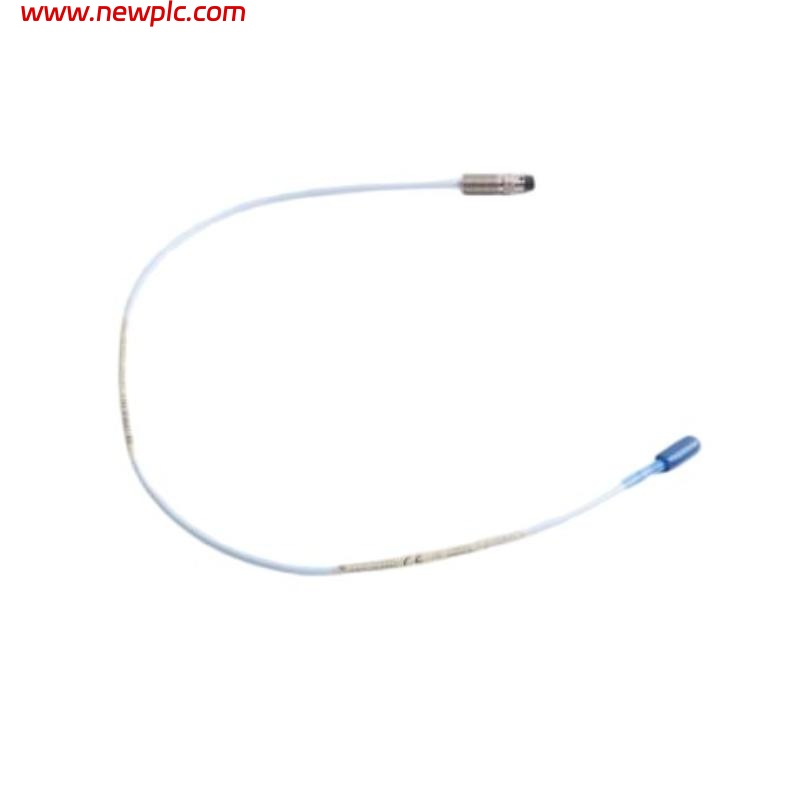

| Model | Bently Nevada 330910-00-07-05-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| Probe Diameter | 7 mm |
| Probe Length | 5 mm |
| Cable Type | 2 m, 75-ohm triaxial, FEP insulated |
| Mounting Thread | M12 × 1 |
| Housing Material | Stainless Steel |
| Probe Tip Material | Stainless Steel |
| Power Requirements | -17.5 Vdc to -26 Vdc, 12 mA max (without barriers); -23 Vdc to -26 Vdc (with barriers) |
| Supply Sensitivity | <2 mV change per volt input change |
| Output Resistance | 50 Ω |
| Operating Temperature | -40°C to +120°C |
| Ingress Protection | IP67 |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the purpose of the Bently Nevada 330910-00-07-05-02-00?
A1: It is used for precise shaft position and vibration monitoring in industrial machinery.
Q2: What is the probe diameter?
A2: The probe diameter is 7 mm, suitable for medium-sensitivity measurements.
Q3: What is the probe length?
A3: The probe length is 5 mm, determining its extension into the monitored equipment.
Q4: What type of mounting thread does it use?
A4: The probe uses an M12 × 1 threaded mount.
Q5: What materials are used in construction?
A5: Housing and probe tip are stainless steel for durability and corrosion resistance.
Q6: What are the power requirements?
A6: -17.5 Vdc to -26 Vdc at 12 mA max without barriers, or -23 Vdc to -26 Vdc with barriers.
Q7: What are its dimensions and weight?
A7: Total Length : 0.5 meter; Weight: 0.15 kg.
Q8: What is the operating temperature range?
A8: -40°C to +120°C.
