Technical Specifications
| Parameter | Description |
|---|---|

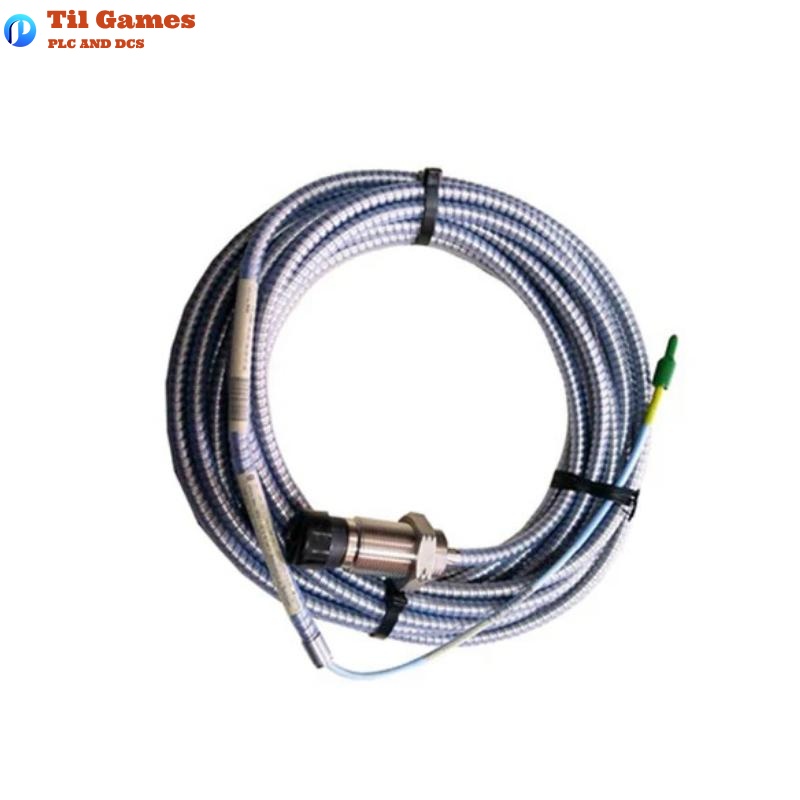

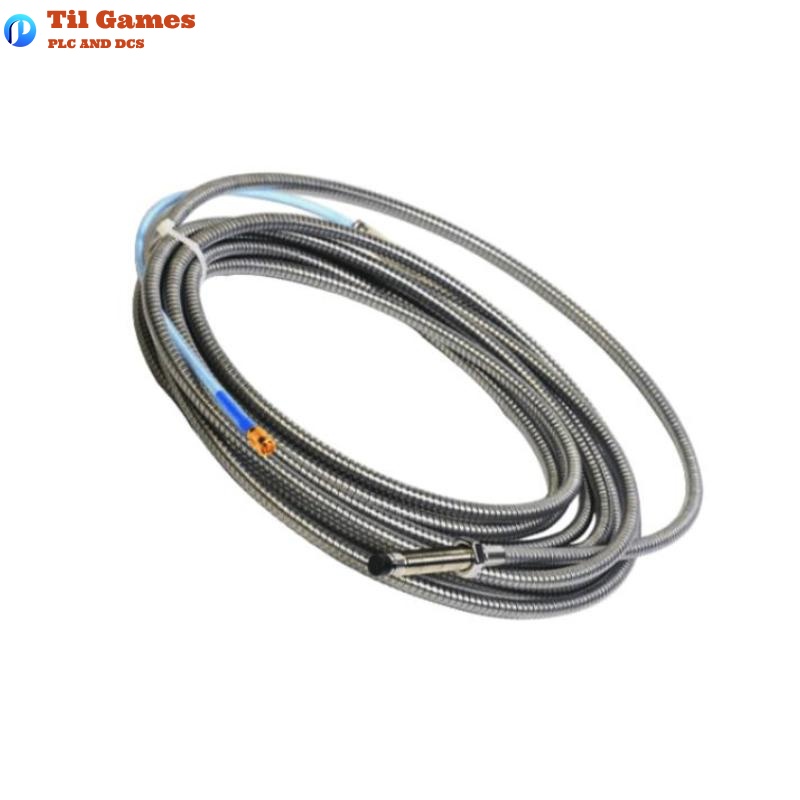

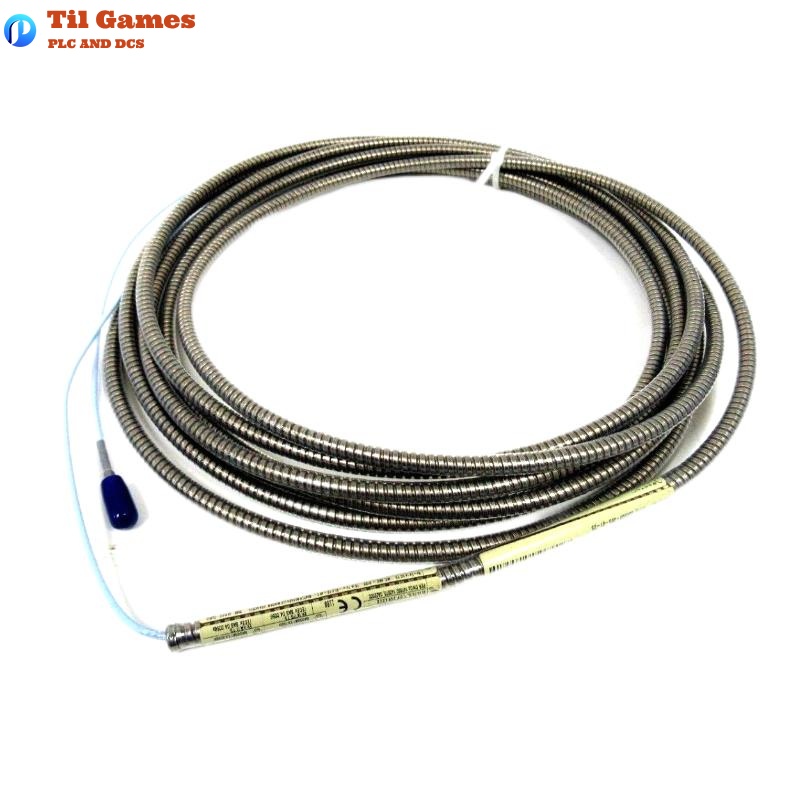

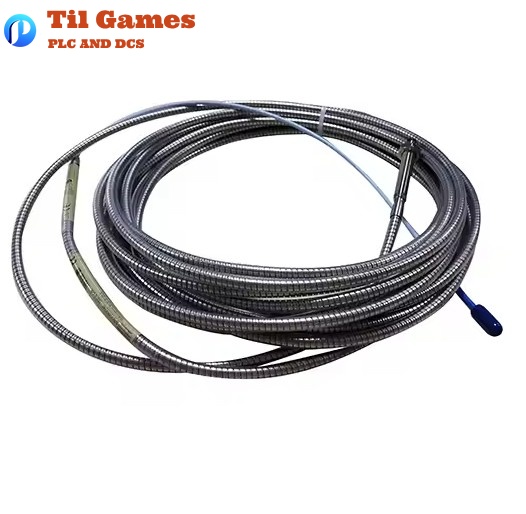

| Product Model | Bently Nevada 330930-040-02-00 |
| Product Type | 3300 NSv Extension Cable |
| Cable Length | 4.0 meters |
| Weight | 0.256 kg |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Armor Option | Available with/without stainless steel armor |
| Connector Type | Miniature coaxial ClickLoc connectors |
| Connector Protector | Optional (connector protector/silicone tape) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Center Conductor Resistance | 0.220 Ω/m (0.067 Ω/ft) |
| Shield Resistance | 0.066 Ω/m (0.020 Ω/ft) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature Range | -52°C to +177°C |
| Storage Temperature Range | -52°C to +177°C |
| Pull Strength | 220 N (50 lb) |
| Compliance | RoHS, EMC, FCC, SIL2/3, ATEX, IECEx, cNRTLus |
FAQ
FAQ
Q1: What systems is the 330930-040-02-00 extension cable compatible with?
A1: It is designed for use with the Bently Nevada 3300 XL NSv Proximity Transducer System, typically in compressors and bearing-equipped machinery with tight installation space.
Q2: What is the standard length of this cable?
A2: This model has a length of 4.0 meters. Other lengths such as 4.5 m and 6.0 m are also available.
Q3: Is the cable resistant to chemicals?
A3: Yes, the FEP insulation provides excellent chemical resistance for demanding environments.
Q4: Is stainless steel armor mandatory?
A4: No, it is optional. Users can select armored or non-armored versions based on installation needs.
Q5: Does the connector feature a locking mechanism?
A5: Yes, it uses ClickLoc gold-plated brass connectors that securely lock into place to prevent loosening.
Q6: What is the maximum tensile strength of the cable?
A6: The cable can withstand up to 220 N (50 lb) of pull force at key connection points.
Q7: Is the cable waterproof?
A7: It is not fully waterproof, but when used with connector protectors, it is resistant to most fluid ingress. Not recommended for submersion.
Q8: What is the cable’s operating temperature range?
A8: The cable operates and can be stored in temperatures ranging from -52°C to +177°C.
