Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 330930-65-03-05 |

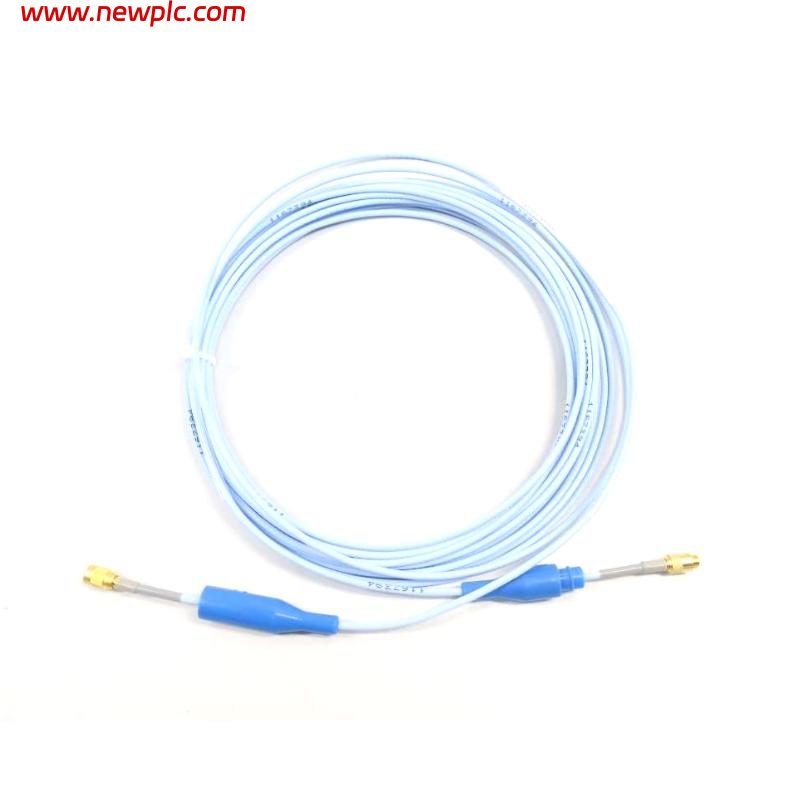

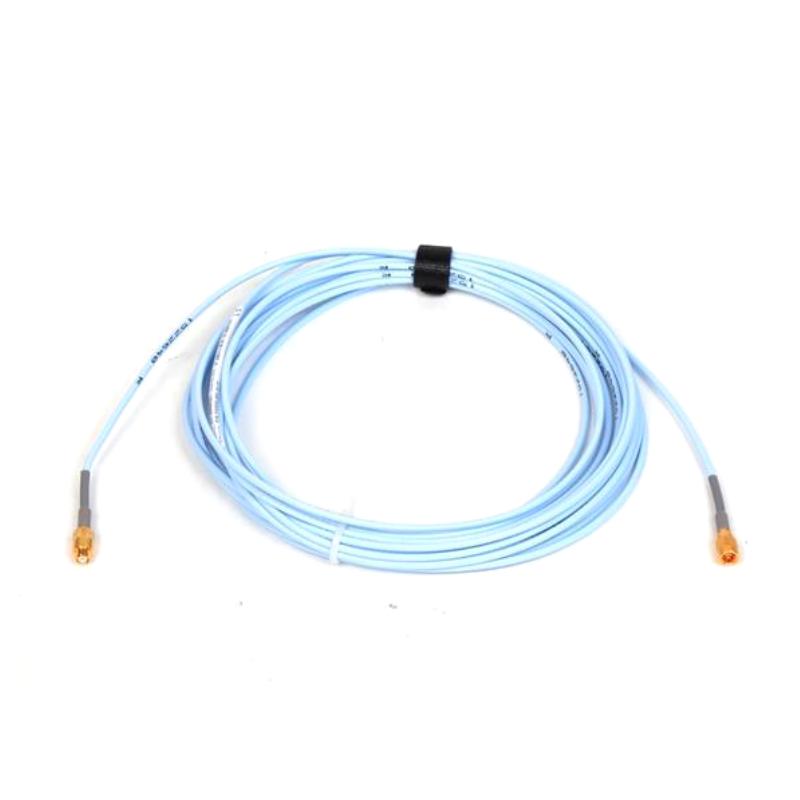

| Product Type | 3300 XL Extension Cable |
| Series | 3300 XL Proximity Transducer System |
| Function | Extends the connection distance between the proximity probe and Proximitor® sensor while maintaining signal accuracy |
| Cable Length | 6.5 m (21.3 ft) |
| Cable Type | Standard Extension Cable |

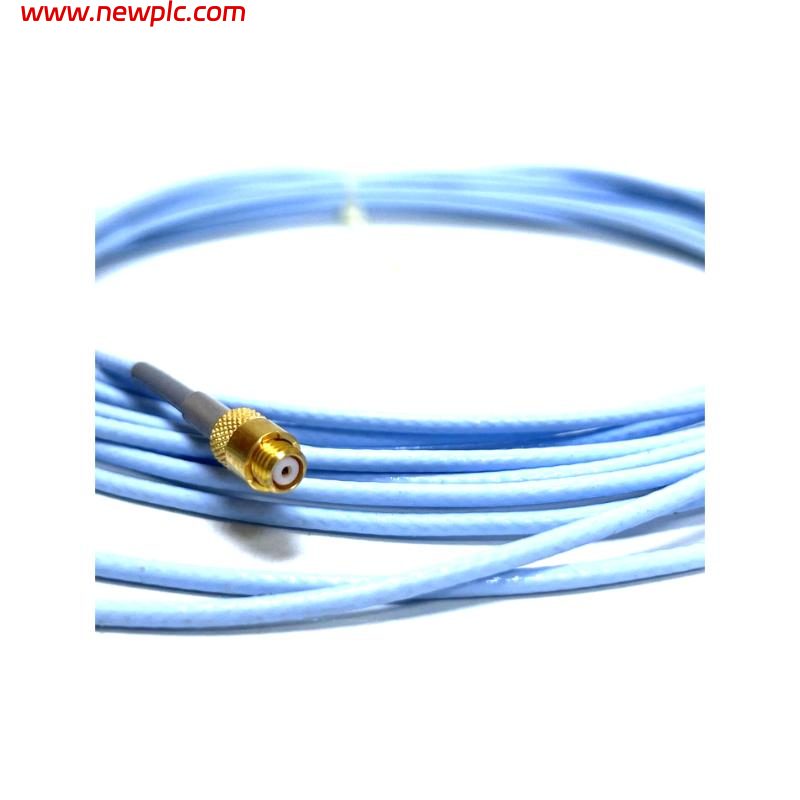

| Connector Type | Miniature ClickLoc™ Coaxial Connector |
| Connector Protector | Included |
| Compatibility | 3300 XL 8 mm, 11 mm, and NSv Proximity Transducer Systems |
| Electrical Characteristics | Low-noise coaxial cable design for reliable vibration and position measurement signals |
| Operating Temperature | -51°C to +177°C (cable dependent) |
| Agency Approval | Multiple Approvals |
| Application | Turbines, compressors, pumps, motors, generators, and other rotating machinery monitoring systems |
| Installation | Industrial field installation |
| Dimensions | Approx. 6500 × 8 × 8 mm |
| Weight | Approx. 0.55 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Bently Nevada 330930-65-03-05 used for?
The 330930-65-03-05 is used as an extension cable between a Bently Nevada proximity probe and Proximitor® sensor, allowing flexible installation while maintaining accurate vibration and position measurement signals.
Q2: What does the part number 330930-65-03-05 indicate?
The part number specifies a 3300 XL extension cable with a 6.5 m cable length, standard cable option, Miniature ClickLoc™ connector with protector, and multiple agency approvals.
Q3: Which Bently Nevada systems are compatible with this cable?
The cable is compatible with Bently Nevada 3300 XL 8 mm, 3300 XL 11 mm, and 3300 XL NSv proximity transducer systems when matched with the correct probe and Proximitor® sensor.
Q4: What are the dimensions and weight of the Bently Nevada 330930-65-03-05?
The cable has approximate dimensions of 6500 × 8 × 8 mm and weighs approximately 0.55 kg.
Q5: Why is an extension cable required in a proximity monitoring system?
An extension cable allows the probe and Proximitor® sensor to be installed at suitable locations while maintaining the required electrical characteristics and signal quality.
Q6: Can the 330930-65-03-05 be used in harsh industrial environments?
Yes. The cable is designed for industrial machinery monitoring applications and provides reliable signal transmission under demanding operating conditions.
Q7: What should be checked before installing this extension cable?
Before installation, verify the cable length, connector type, probe compatibility, Proximitor® sensor model, routing path, and minimum bend radius requirements.
Q8: What are the advantages of the Bently Nevada 330930-65-03-05?
The cable provides stable signal transmission, reliable operation, easy installation, compatibility with multiple Bently Nevada proximity systems, and long-term performance in critical machinery monitoring applications.
