Technical Specifications
| Parameter | Description |
|---|---|

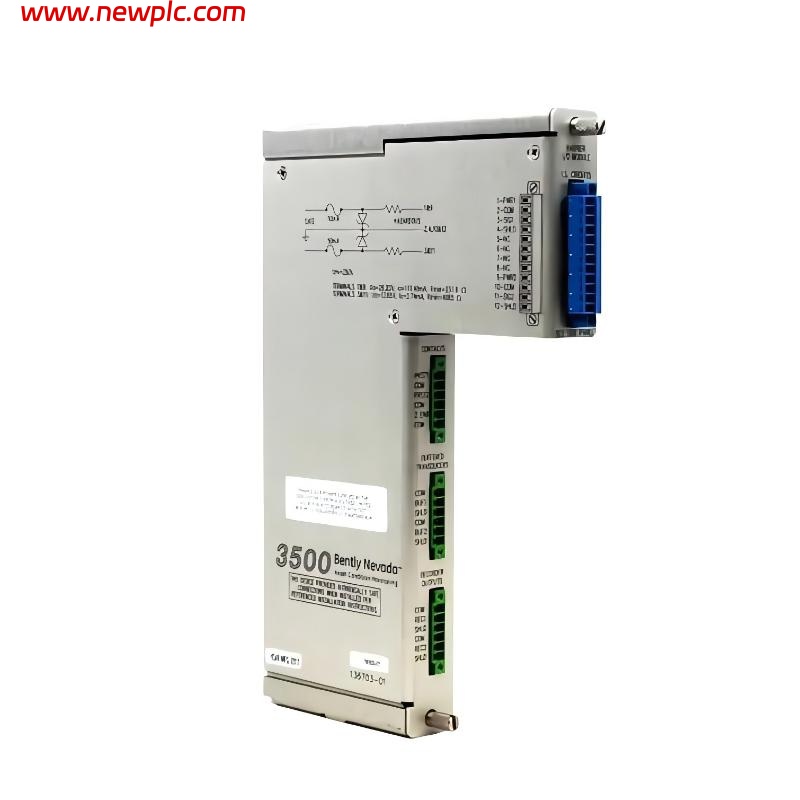

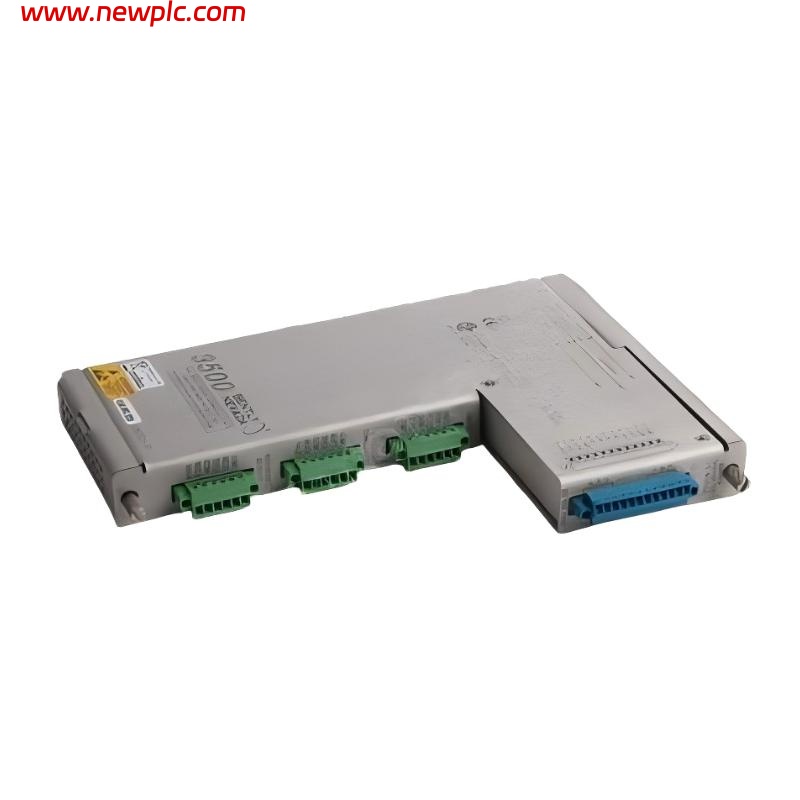

| Product Model | Bently Nevada 3500/04-01-00 |
| Product Type | Internal Barriers Module |
| Application | Provides electrical isolation and protection between modules in 3500 Series racks |
| Compatibility | Bently Nevada 3500 Monitoring System racks |
| Function | Segregates analog and digital signals, preventing cross-talk and interference |
| Isolation Voltage | Up to 250 V between channels |
| Signal Type | Analog and digital input/output signals |
| Mounting | Installed internally within 3500 Series rack |
| Environmental Rating | Industrial-grade operation for temperature and vibration |
| Diagnostic Features | Supports system monitoring without impacting signal integrity |
| Material | High-quality PCB and insulating components |
| Connector Type | Rack-specific edge connectors |
| Dimensions | 241 x 24.4 x 103.1 mm |
| Weight | 0.201 kg |
FAQ
FAQ
Q1: What is the purpose of the Bently Nevada 3500/04-01-00 Internal Barriers Module?
A1: It provides electrical isolation between modules in the 3500 Series rack, ensuring accurate signal transmission and preventing interference.
Q2: Which Bently Nevada systems is this module compatible with?
A2: The module is compatible with all standard 3500 Series Monitoring System racks.
Q3: Does this module handle both analog and digital signals?
A3: Yes, it isolates both analog and digital input/output signals to prevent cross-talk and maintain signal integrity.
Q4: How is the Internal Barriers Module installed?
A4: It is installed internally within the 3500 Series rack using the rack-specific edge connectors for secure and precise placement.
Q5: Can the module withstand industrial environmental conditions?
A5: Yes, it is designed to operate reliably under industrial temperature, vibration, and electrical conditions.
Q6: Does the module require maintenance or calibration?
A6: No routine maintenance or calibration is needed, as it functions passively to isolate signals within the rack.
Q7: What voltage isolation does the module provide?
A7: It offers isolation of up to 250 V between channels to prevent electrical interference and maintain measurement accuracy.
Q8: How does this module affect system diagnostics?
A8: It allows normal diagnostic monitoring of the 3500 Series rack without interfering with the performance or integrity of the signals.
