Technical Specifications
| Parameter | Specification |
|---|---|

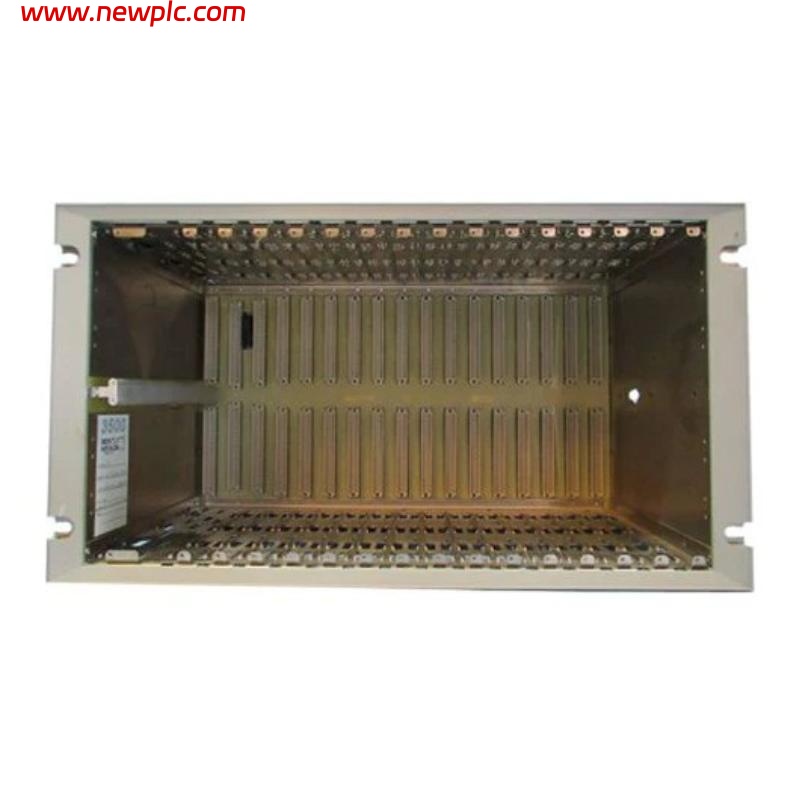

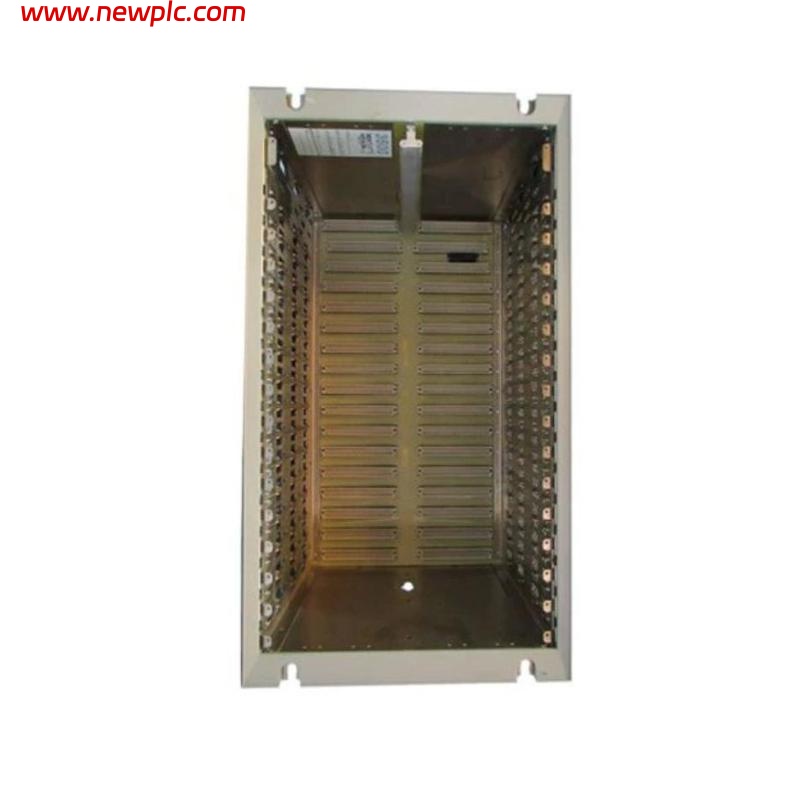

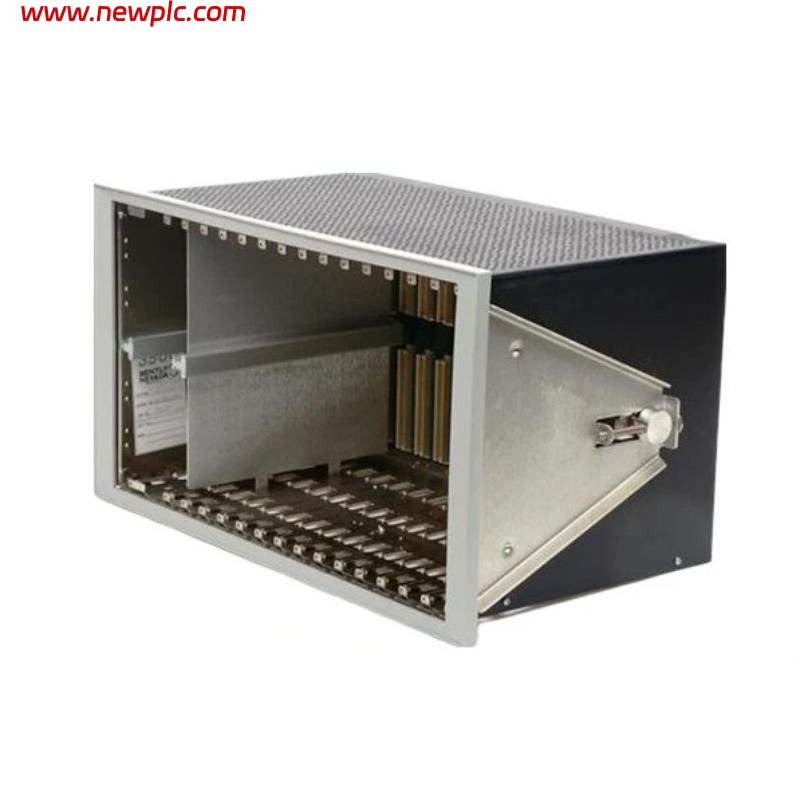

| Model | Bently Nevada 3500/05/01-01-00-00-01 |
| Type | 3500/05 System Rack |
| Function | Houses and connects Bently Nevada 3500 monitoring modules for machinery protection and condition monitoring |
| Rack Size | 19-inch EIA standard rack-mount chassis |
| Slot Capacity | Up to 14 module slots (including power supplies, communication modules, and monitoring modules) |
| Power Supply Slots | 2 dedicated slots (supports redundant power supplies) |
| Communication Slot | 1 dedicated slot for rack interface or communications modules |
| Module Compatibility | Compatible with all 3500 series monitoring modules |
| Power Input Voltage | 24 VDC, 48 VDC, or 120/240 VAC (depending on power supply module) |
| Cooling Method | Natural convection cooling |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95% non-condensing |
| Vibration | 0.5 g, 10–2000 Hz |
| Shock | 10 g, 11 ms half-sine |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Mounting | Rack-mounted |
| Applications | Industrial rotating machinery monitoring, vibration analysis, turbine and compressor protection systems |
FAQ
FAQ
1. What is the primary function of the Bently Nevada 3500/05 System Rack?
-
It provides a chassis for housing and interconnecting 3500 series modules for machinery monitoring and protection.
2. How many modules can this rack hold?
-
It can hold up to 14 modules, including power supplies and monitoring cards.
3. Does it support redundant power supplies?
-
Yes, it has two power supply slots for redundancy.
4. What types of power inputs does it accept?
-
Depending on the power supply module, it can accept 24 VDC, 48 VDC, or 120/240 VAC.
5. Is this rack compatible with all 3500 series modules?
-
Yes, it supports all standard 3500 monitoring and communication modules.
6. Can it operate in harsh industrial environments?
-
Yes, it operates from -30 °C to +65 °C and withstands high humidity and vibration.
7. How is it cooled?
-
The rack uses natural convection cooling.
8. What industries typically use this system rack?
-
It is widely used in power generation, oil and gas, petrochemical, and manufacturing industries.
