Technical Specifications
| Parameter | Specification |
|---|---|

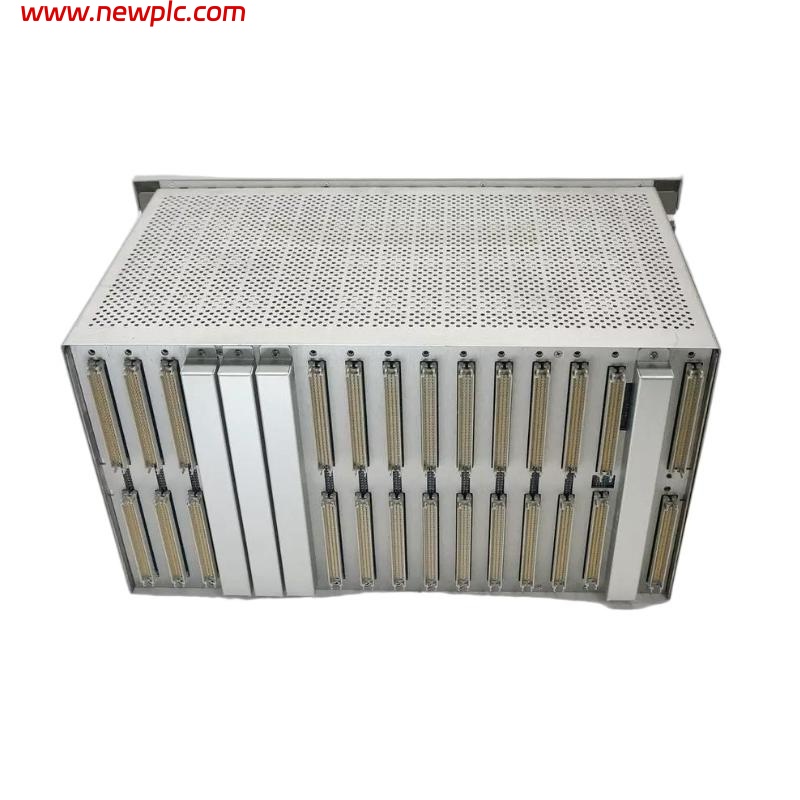

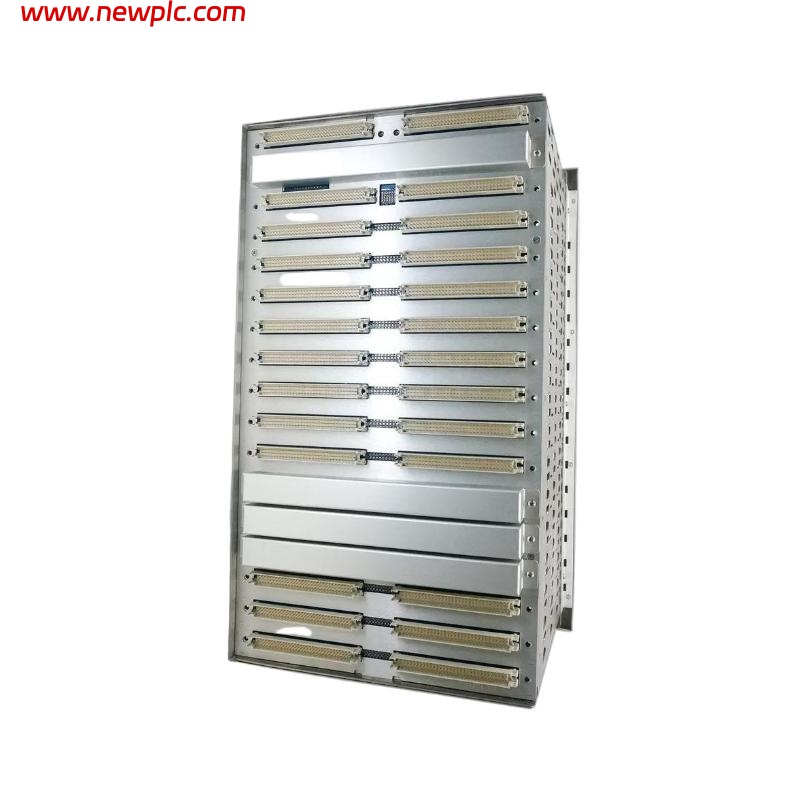

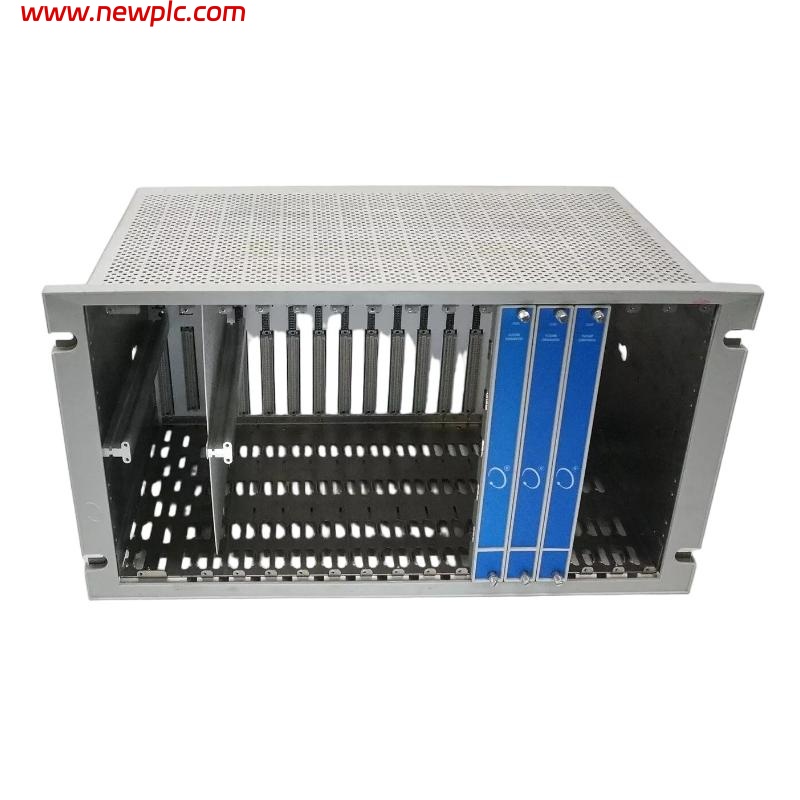

| Model | Bently Nevada 3500/05-01-01-02-00-01 |
| Type | 3500/05 System Rack |
| Function | Houses and interconnects Bently Nevada 3500 series monitoring, communication, and power supply modules |
| Rack Size | 19-inch EIA standard rack-mount chassis |
| Slot Capacity | Up to 14 module slots for monitoring, communication, and power supply modules |
| Power Supply Slots | 2 dedicated slots (supports redundant power supplies) |
| Communication Slot | 1 dedicated slot for rack interface or communication modules |
| Module Compatibility | Fully compatible with all 3500 series modules |
| Power Input Voltage | 24 VDC, 48 VDC, or 120/240 VAC (depending on power supply installed) |
| Cooling Method | Natural convection cooling |
| Backplane Type | Triple Modular Redundant (TMR) backplane for increased system reliability |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Vibration | 0.5 g, 10–2000 Hz |
| Shock | 10 g, 11 ms half-sine |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Mounting | Standard 19-inch rack-mount |
| Applications | Turbine monitoring, compressor protection, vibration analysis, and industrial rotating equipment health monitoring |
FAQ
FAQ
1. What is the purpose of the Bently Nevada 3500/05-01-01-02-00-01 System Rack?
It acts as the structural and electrical backbone for the 3500 system, housing all monitoring, communication, and power supply modules.
2. How many modules can be installed in the rack?
It supports up to 14 modules, including monitoring and interface components.
3. Does this model support redundant power supplies?
Yes, it features two power supply slots for redundancy.
4. What is special about the backplane in this configuration?
It includes a Triple Modular Redundant (TMR) backplane, enhancing fault tolerance.
5. Can this rack work with all 3500 series modules?
Yes, it is fully compatible with the entire Bently Nevada 3500 series.
6. What kind of cooling is required?
It uses natural convection cooling and does not require fans.
7. Is it suitable for use in extreme industrial environments?
Yes, it operates reliably across a wide temperature range, in high humidity, and under vibration.
8. Which industries commonly use this rack?
It is widely used in oil and gas, petrochemical, power generation, and heavy manufacturing industries.
