Technical Specifications
| Item | Specification |
|---|---|

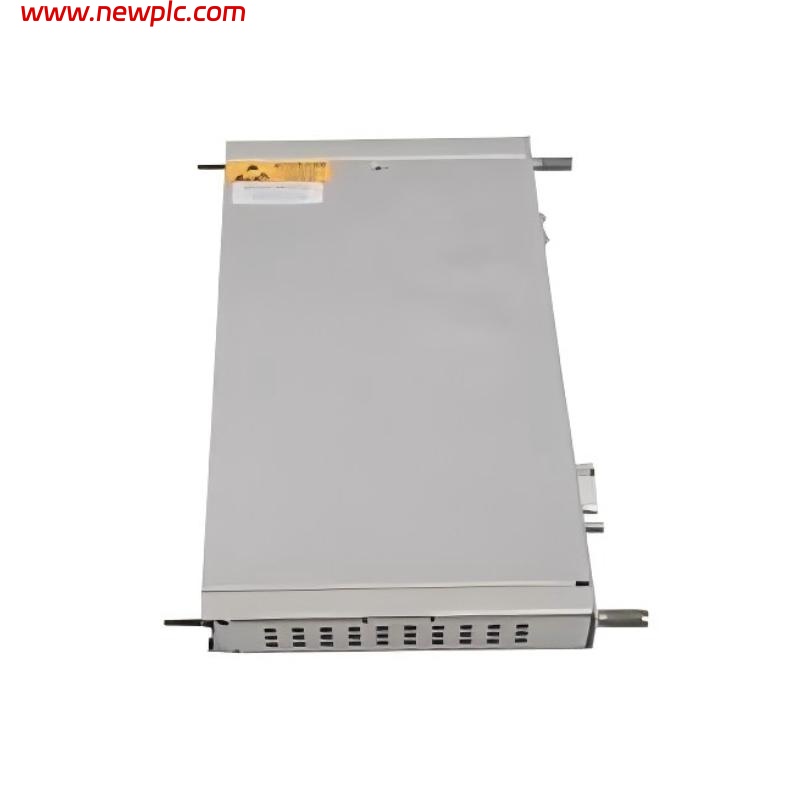

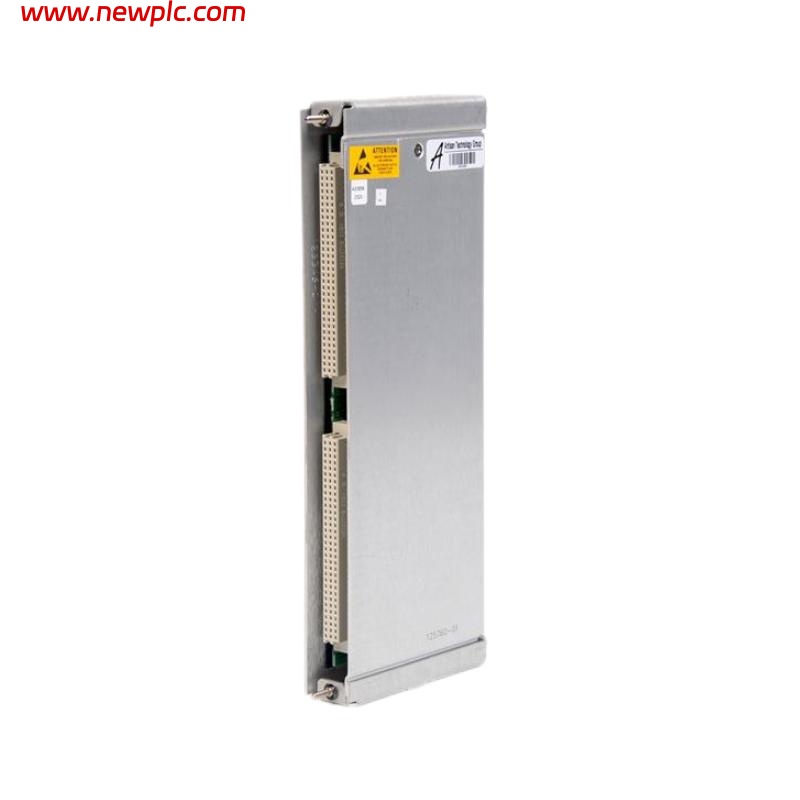

| Model | Bently Nevada 3500/20‑01‑01‑00 |
| Type | Digital Speed / Tachometer Input Module |
| Product Category | 3500 Series Machinery Protection System |
| Product Family | Bently Nevada 3500 |
| Function | Accepts and conditions digital speed/tachometer signals for monitoring and protection |
| Input Signal Compatibility | Keyphasors, digital tachometers, speed pickups |
| Signal Conditioning | Filtering and shaping for digital speed signals |
| Output Interface | Speed data, alarm/trip logic via 3500 rack backplane |
| Protection Support | Works with system logic for overspeed and speed‑related alarms/trips |
| Power Supply | From 3500 rack backplane |
| Isolation | Internal isolation between inputs and logic |
| Status Reporting | Health and status via system interface |
| Mounting Method | 3500 rack slot installation |
| Application Environment | Industrial rotating machinery monitoring and protection |
| Operating Temperature Range | 0 °C to +60 °C |
| Dimensions | 160 mm × 120 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/20‑01‑01‑00 module?
It processes digital speed and tachometer signals for machinery monitoring and protection in the 3500 system.
Q2: What types of speed inputs does this module accept?
It accepts keyphasor signals, digital tachometer outputs, and speed pickups.
Q3: How does this module support protection logic?
It conditions and communicates speed data to the system, where configured thresholds can generate alarms or trips.
Q4: Where are the outputs and statuses delivered?
Outputs and statuses are communicated via the 3500 rack backplane to the monitoring system.
Q5: How is the module powered?
It is powered by the 3500 rack backplane.
Q6: Does this module provide electrical isolation?
Yes, it provides internal isolation between input circuits and logic.
Q7: Where is this module installed?
It is installed in a 3500 monitoring rack slot.
Q8: What are the dimensions and weight of the module?
Dimensions are 160 mm × 120 mm and weight is 0.25 kg.
