Technical Specifications
| Parameter | Description |
|---|---|

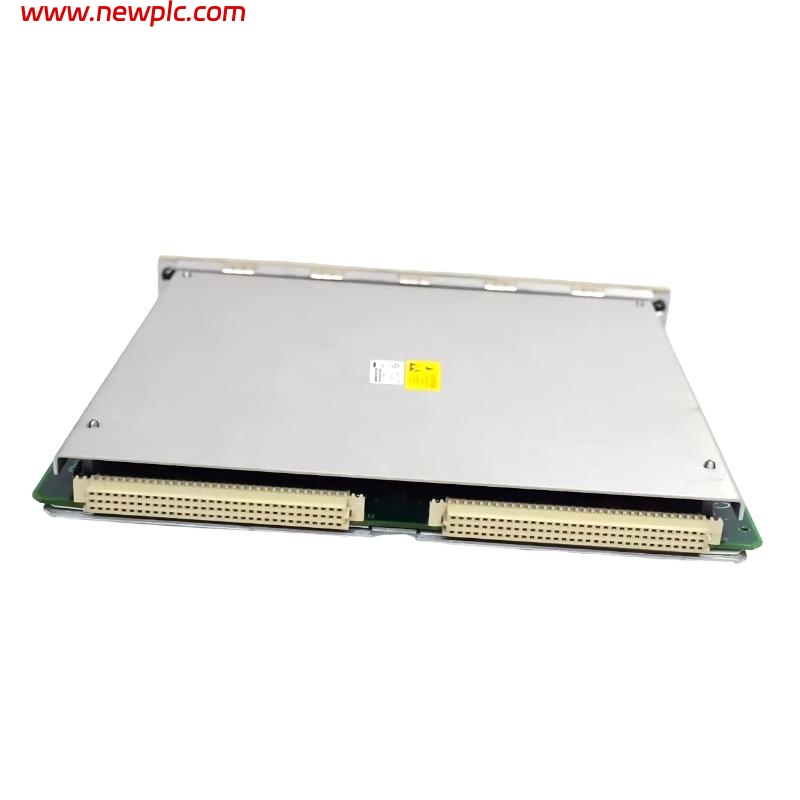

| Model | 3500/20 Rack Interface Module |
| Part Numbers | 125744-02 (Main Module) + 125768-01 (I/O Module) |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Installation Slot | Must be installed in Slot 1 of the rack, adjacent to the power supplies |
| Communication Protocol | Supports proprietary protocol for rack configuration and machinery data retrieval |
| Supported Communication Processors | Compatible with Bently Nevada external processors like TDXnet, TDIX, and DDIX |

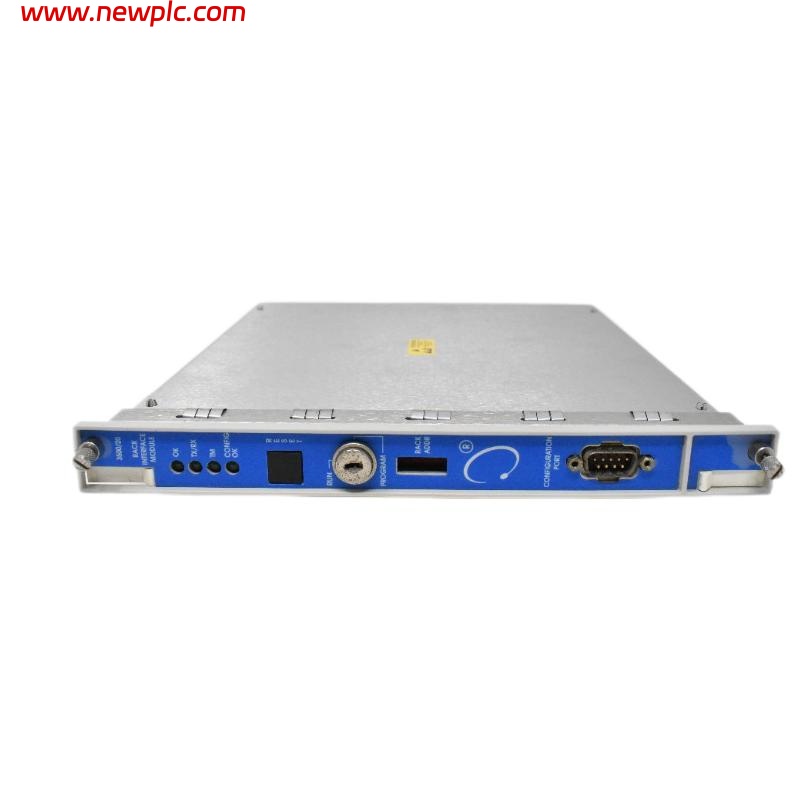

| Front Panel Ports | Configuration port |

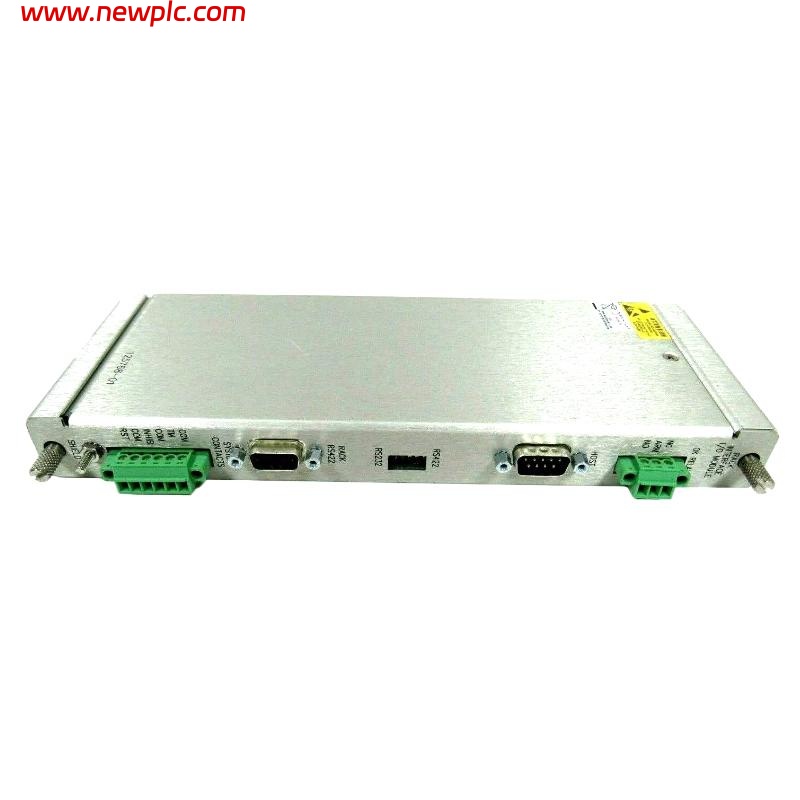

| Rear Panel Ports | Host port, Rack RS-422 port, Data Manager ports |
| Functional Features | Supports rack reset, Trip Multiply, Alarm Inhibit, OK relay, etc. |
| Security Features | Password protection and key switch functionality |
FAQ
FAQ
Q1: What is the primary function of the 3500/20 Rack Interface Module?
A1: The module serves as the central interface to the 3500 rack, facilitating rack configuration, machinery data retrieval, and communication with external processors.
Q2: What are the installation requirements for this module?
A2: The module must be installed in Slot 1 of the rack, adjacent to the power supplies, to ensure proper communication and functionality.
Q3: Which communication processors are supported?
A3: The module is compatible with Bently Nevada external communication processors such as TDXnet, TDIX, and DDIX, supporting various communication protocols.
Q4: What are the dimensions and weight of the module?
A4: The module measures 241.3 × 24.4 × 241.8 mm and weighs 0.91 kg.
Q5: Does the module support rack reset functionality?
A5: Yes, the module supports rack reset functionality, which can be initiated via the front panel.
Q6: Are alarm functions supported by the module?
A6: Yes, the module supports alarm inhibit functionality, allowing configuration as needed.
Q7: How is the security of the module ensured?
A7: The module is equipped with password protection and key switch functionality to ensure system security.
Q8: Can the module exchange data with other devices?
A8: Yes, the module supports data exchange with external communication processors, enabling integration with other devices.
