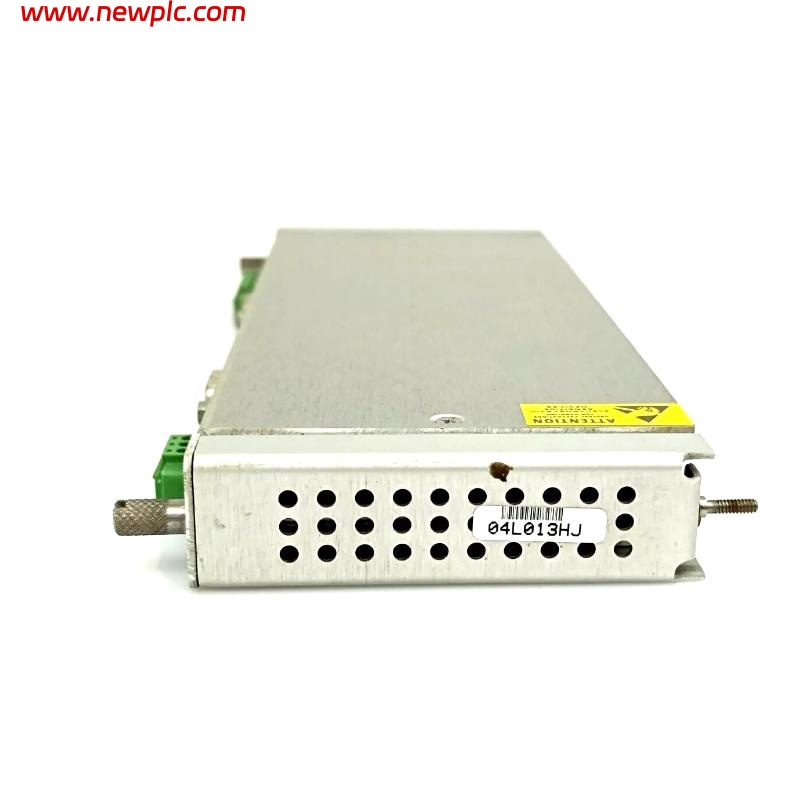

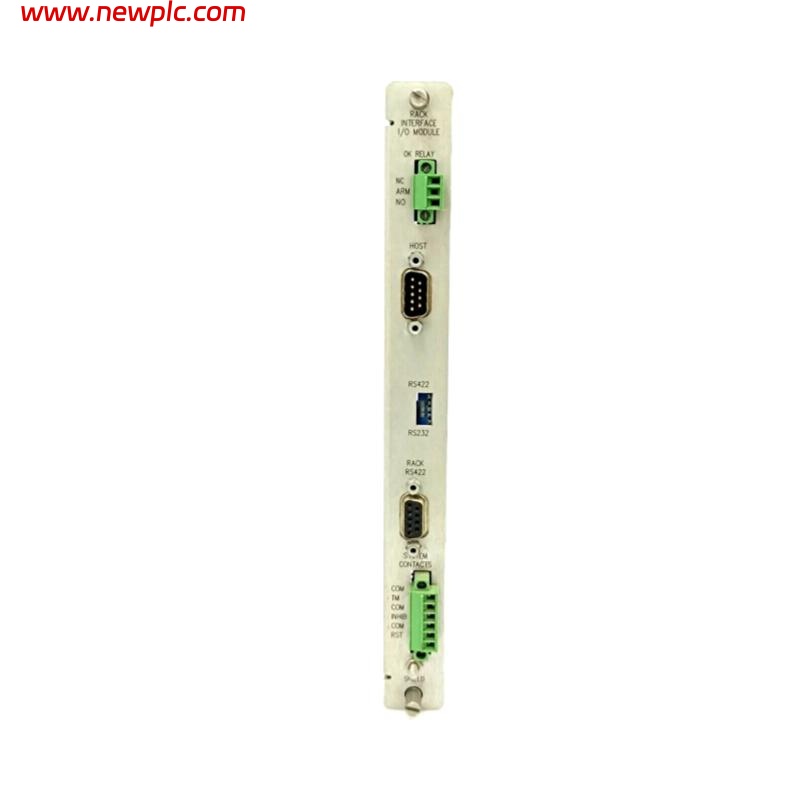

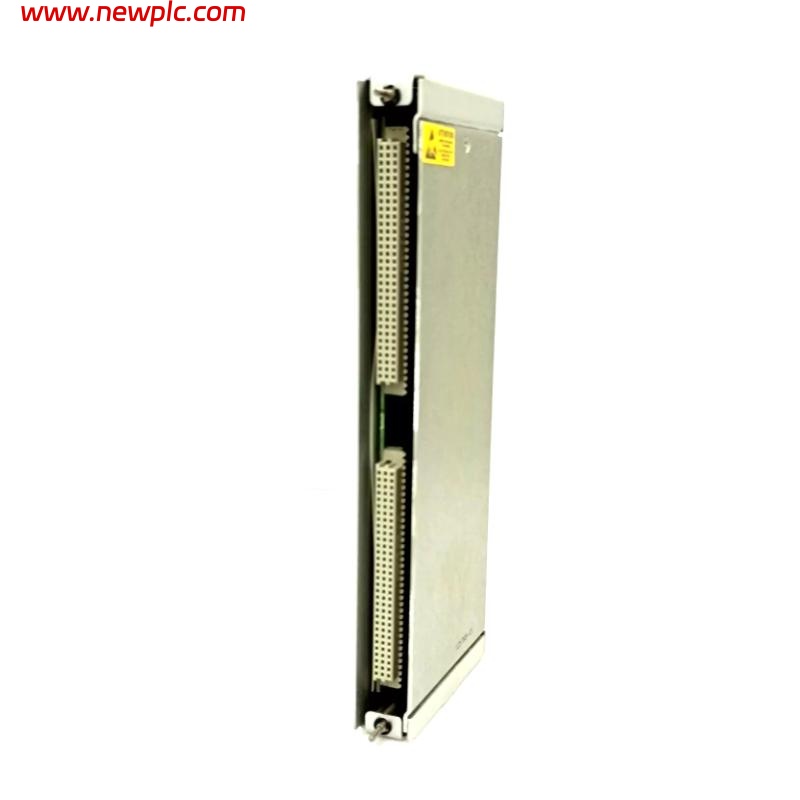

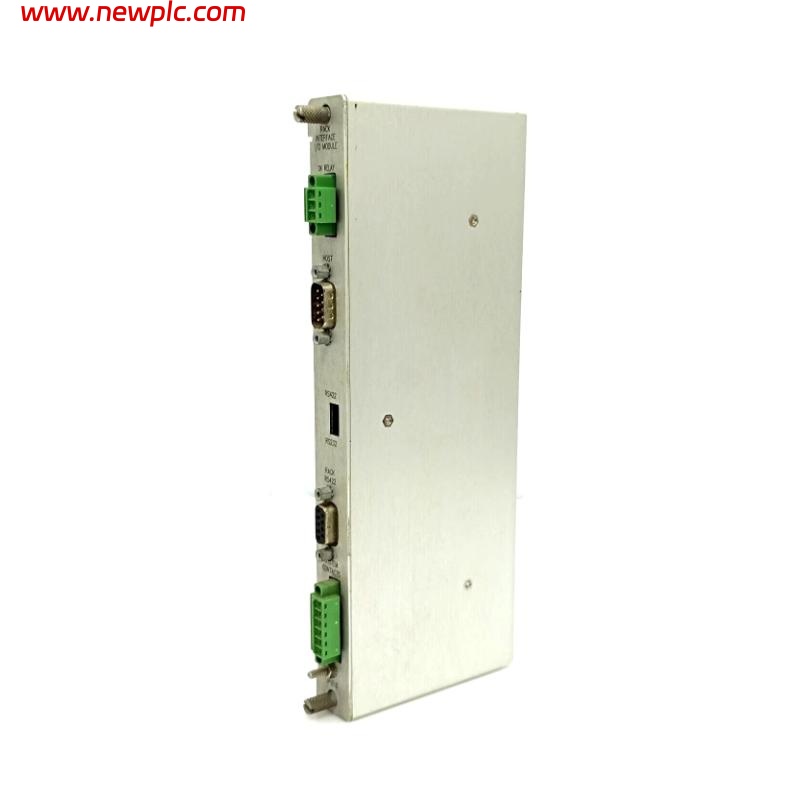

Bently Nevada 3500/20 125768-01 RIM I/O Module

FAQ

• Q1: What is the primary role of the 3500/20 RIM in a 3500 Series system?
  A1: It serves as the main interface to the 3500 rack, enabling data exchange and configuration between the rack and external communication processors.

• Q2: Which slot should the RIM module be installed in?
  A2: It must be installed in Slot 1 of the 3500 rack, next to the power supplies for proper operation.

• Q3: What types of communication interfaces does the module support?
  A3: The module supports RS-232 and RS-422 communication interfaces.

• Q4: What are the maximum cable lengths for RS-232 and RS-422 connections?
  A4: RS-232 supports up to 30 meters, while RS-422 supports up to 1200 meters.

• Q5: Does the RIM module have security features to prevent unauthorized access?
  A5: Yes, it includes password protection, a key switch, rack reset, and alarm inhibit functionalities.

• Q6: What is the maximum baud rate supported by the module?
  A6: The module supports a maximum baud rate of 38.4 kbaud.

• Q7: Can the RIM interface work with TDXnet, TDIX, and DDIX processors simultaneously?
  A7: Yes, it is fully compatible with all three external communication processors.

• Q8: What are the physical dimensions and weight of the module?
  A8: The dimensions are 241.3 x 24.4 x 99.1 mm, and the weight is 0.45 kg.

125768-01 3500/20 Bently Nevada RIM I/O Module
