Technical Specifications
| Item | Specification |
|---|---|

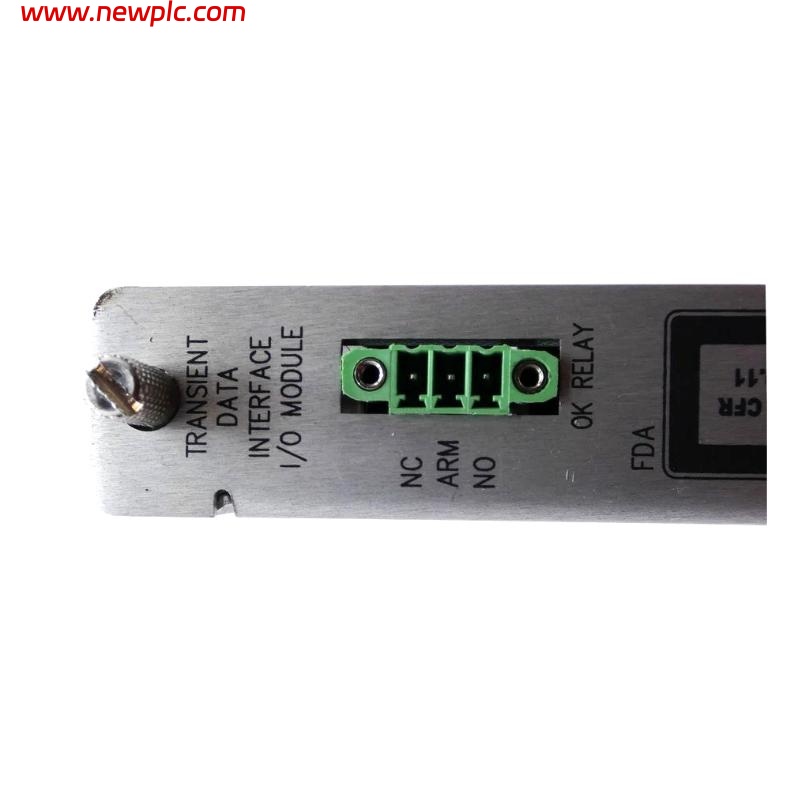

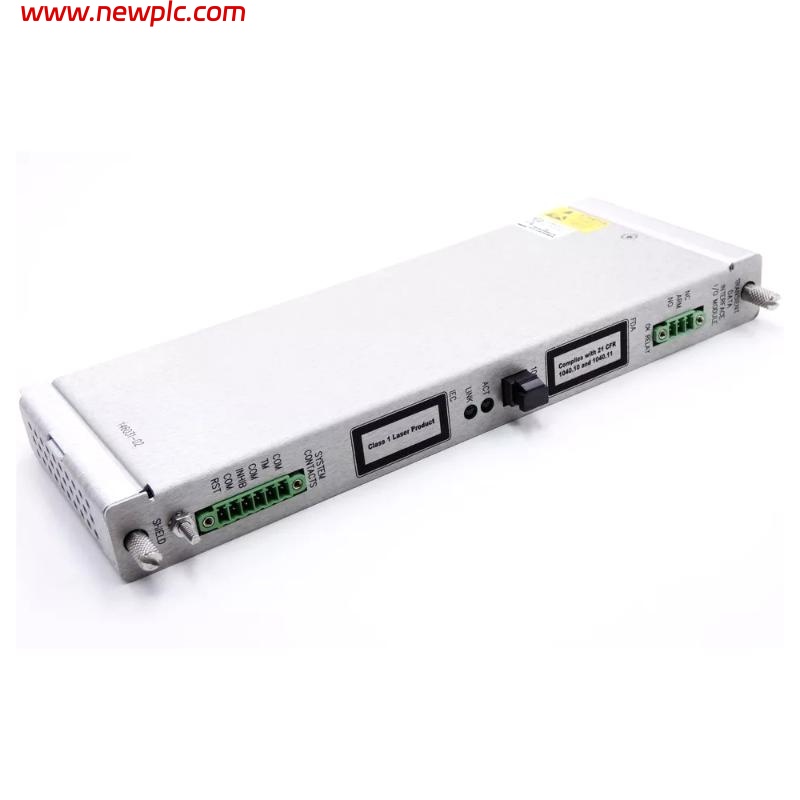

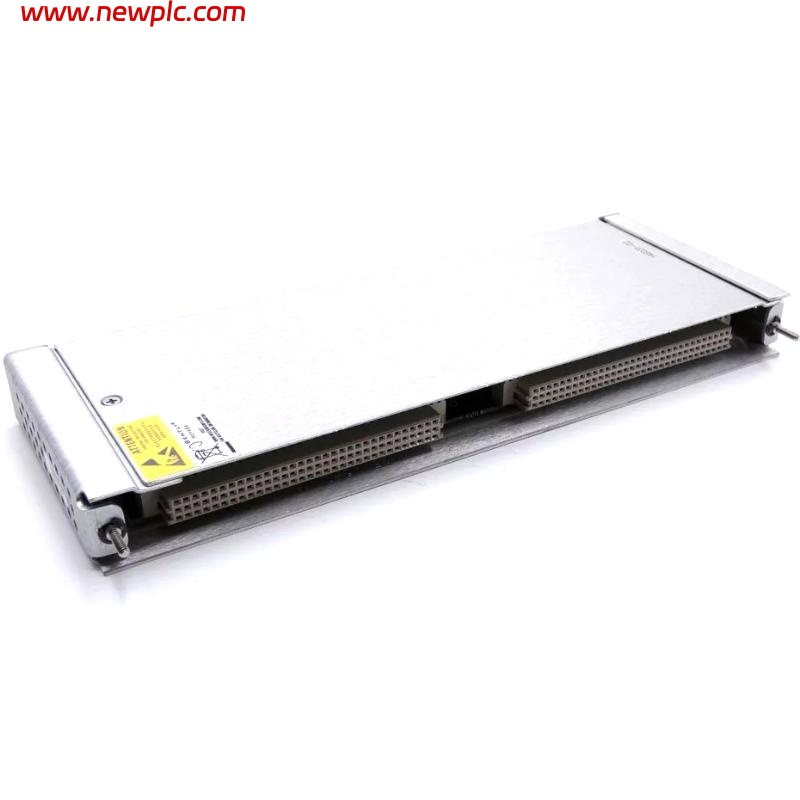

| Model | Bently Nevada 3500/22‑01‑02‑00 |
| Type | Machinery Protection & Condition Monitoring Module |
| Product Category | 3500 Series Monitoring System |
| Product Family | Bently Nevada 3500 |
| Function | Provides overspeed protection and speed signal processing |
| Input Signal Compatibility | Speed pickups, proximity sensors, keyphasors |
| Speed Detection Logic | Conditions and monitors speed pickup signals |
| Protection Outputs | Alarm and trip logic via 3500 rack backplane |
| Signal Conditioning | Filtering, shaping, and threshold detection |
| Power Supply | From 3500 rack backplane |
| Isolation | Internal isolation between inputs and logic |
| Status Reporting | Health and status via system interface |
| Mounting Method | Installed in 3500 rack slot |
| Application Environment | Industrial rotating machinery protection |
| Operating Temperature Range | 0 °C to +60 °C |
| Dimensions | 160 mm × 120 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/22‑01‑02‑00 module?
It conditions and monitors speed pickup signals and provides overspeed alarm/trip logic in the 3500 monitoring system.
Q2: Which types of sensors can be used with this module?
It accepts speed signals from speed pickups, proximity probes, and keyphasor sensors.
Q3: How does this module contribute to machinery protection?
It applies signal conditioning and threshold logic to speed signals and generates alarm or trip outputs when configured conditions are met.
Q4: How are protection signals communicated?
Protection alarm and trip logic are communicated via the 3500 rack backplane to the overall monitoring system.
Q5: How is the module powered?
It receives power from the 3500 rack backplane.
Q6: Does the module provide internal isolation?
Yes, it offers internal isolation between sensor inputs and module logic circuitry.
Q7: Where is this module installed?
It is installed in a designated slot within a Bently Nevada 3500 monitoring rack.
Q8: What are the physical dimensions and weight of the 3500/22‑01‑02‑00?
Dimensions are 160 mm × 120 mm and weight is 0.25 kg.
