Technical Specifications
| Parameter | Specification |
|---|---|

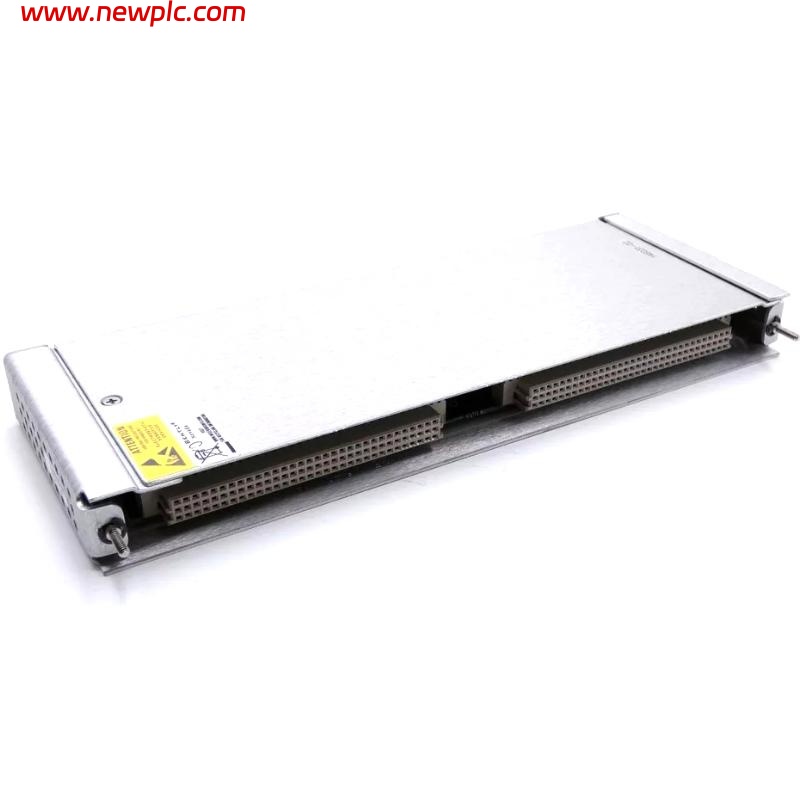

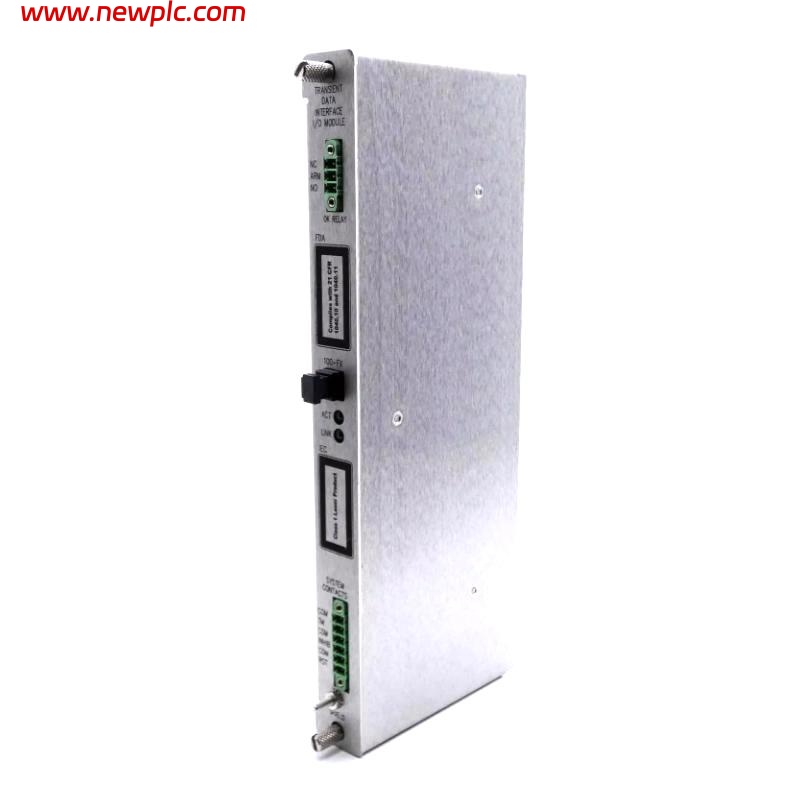

| Model | 3500/22 146031-02 |
| Type | 100Base-FX Fiber Optic I/O Module |
| Connectivity | 10Base-T / 100Base-TX / 100Base-FX |
| Connector Type | MT-RJ male for fiber optic cable |
| Maximum Fiber Cable Length | 2000 meters (6560 feet) |
| Data Collection | Steady-state and transient dynamic (waveform) data |
| Power Consumption | 10.5 W |
| Dimensions | 241.3 mm (L) × 24.4 mm (W) × 241.8 mm (H) |
| Weight | 0.91 kg |
| Compatibility | Bently Nevada 3500 Series M Monitors (e.g., 3500/40M, 3500/42M) |
FAQ
FAQ
-
Q1: What type of data can the 3500/22 module collect?
A1: It collects both steady-state vibration data and transient waveform data for comprehensive machinery monitoring. -
Q2: What is the maximum supported fiber optic cable length?
A2: The module supports a maximum multimode fiber optic cable length of 2000 meters (6560 feet). -
Q3: Which connector type is used for fiber optic connections?
A3: An MT-RJ male connector is used on the module; the fiber optic cable must have a compatible MT-RJ female connector. -
Q4: What is the power consumption of the 3500/22 module?
A4: The module consumes approximately 10.5 watts under normal operating conditions. -
Q5: Is the module compatible with other 3500 Series monitoring modules?
A5: Yes, it is compatible with Bently Nevada 3500 Series M Monitors such as 3500/40M and 3500/42M. -
Q6: Can the module support both 10Base-T and 100Base-FX communication simultaneously?
A6: It supports multiple Ethernet standards, but fiber optic 100Base-FX is used for transient data transfer, while 10/100Base-TX can be used for network connectivity. -
Q7: How is the 3500/22 module integrated into the 3500 rack system?
A7: It functions as a transient data interface (TDI), bridging the rack modules with monitoring software and enabling data collection. -
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 241.3 × 24.4 × 241.8 mm, and it weighs 0.91 kg.
