Technical Specifications
| Item | Specification |
|---|---|

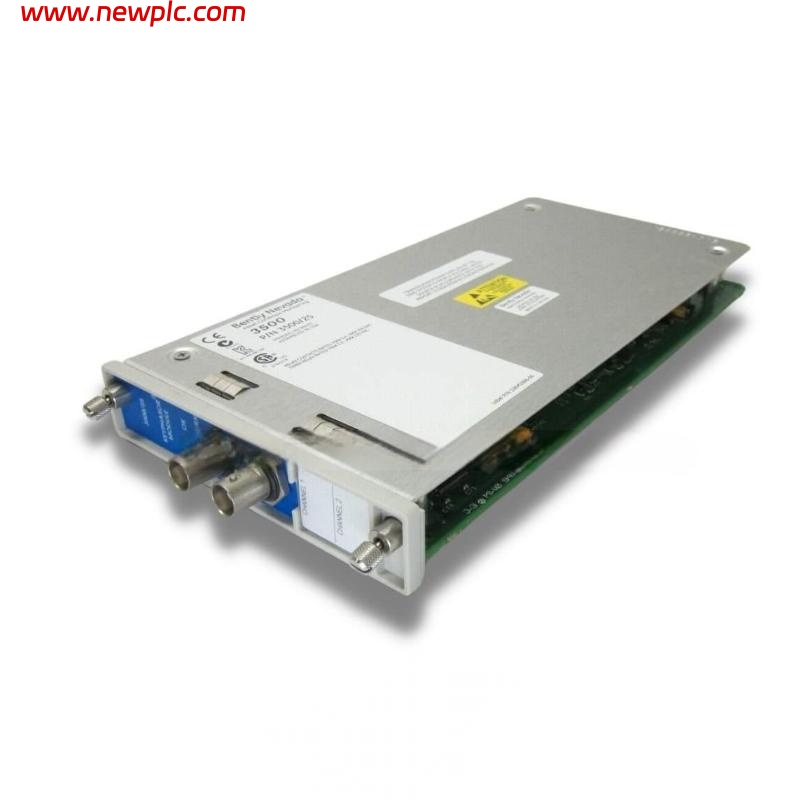

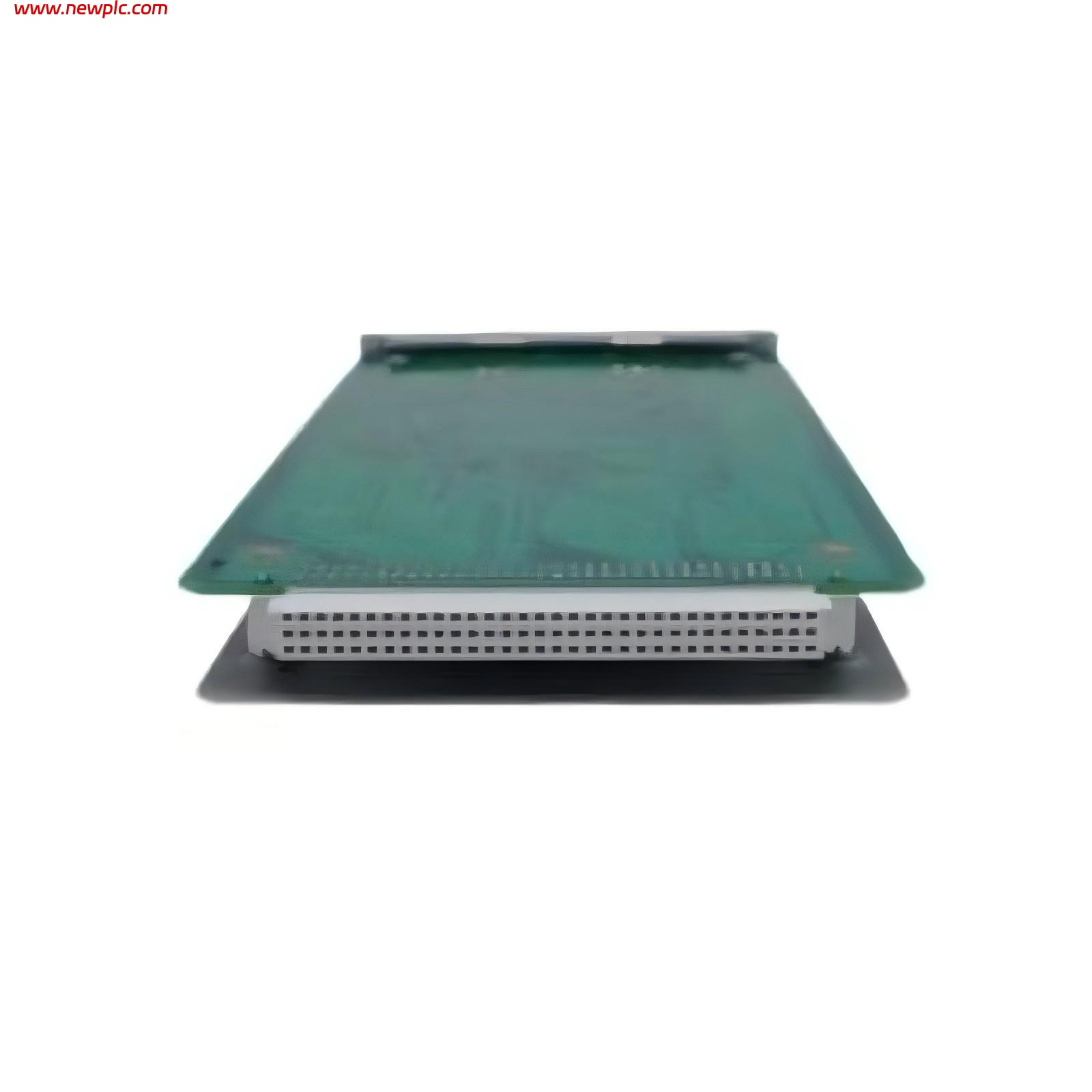

| Model | Bently Nevada 3500/25-01-04-00 |
| Type | Enhanced Key Phase Module |
| Series | 3500 Series Machinery Protection System |
| Manufacturer | Bently Nevada |
| Function | Provides keyphasor input and speed reference signals |
| Input Type | Proximity or magnetic pickup |
| Keyphasor Output | TTL compatible pulse |
| Speed Range | 0 to 25,000 RPM |
| Phase Accuracy | ±1° |
| Frequency Response | DC to 5 kHz |
| Operating Temperature | –40°C to +85°C (–40°F to +185°F) |
| Mounting | 19-inch rack or DIN rail compatible |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What is the primary use of this module?
It provides keyphasor input and speed reference signals for the 3500 Series system, used in rotor vibration monitoring and protection.
Q2: What types of sensor inputs are supported?
Supports proximity probes and magnetic pickups.
Q3: What is the speed measurement range?
Measures speeds from 0 to 25,000 RPM.
Q4: What is the phase output accuracy?
Phase accuracy is ±1°.
Q5: Can it be used in extreme temperatures?
Yes, it operates reliably from –40°C to +85°C (–40°F to +185°F).
Q6: What type of output signal does it provide?
Provides TTL-compatible pulse signals for keyphasor output.
Q7: How is the module mounted?
It can be mounted on a standard 19-inch rack or DIN rail.
Q8: What certifications does the module have?
It meets CE, UL, and CSA industrial certification standards.
