Technical Specifications
| Item | Description |
|---|---|

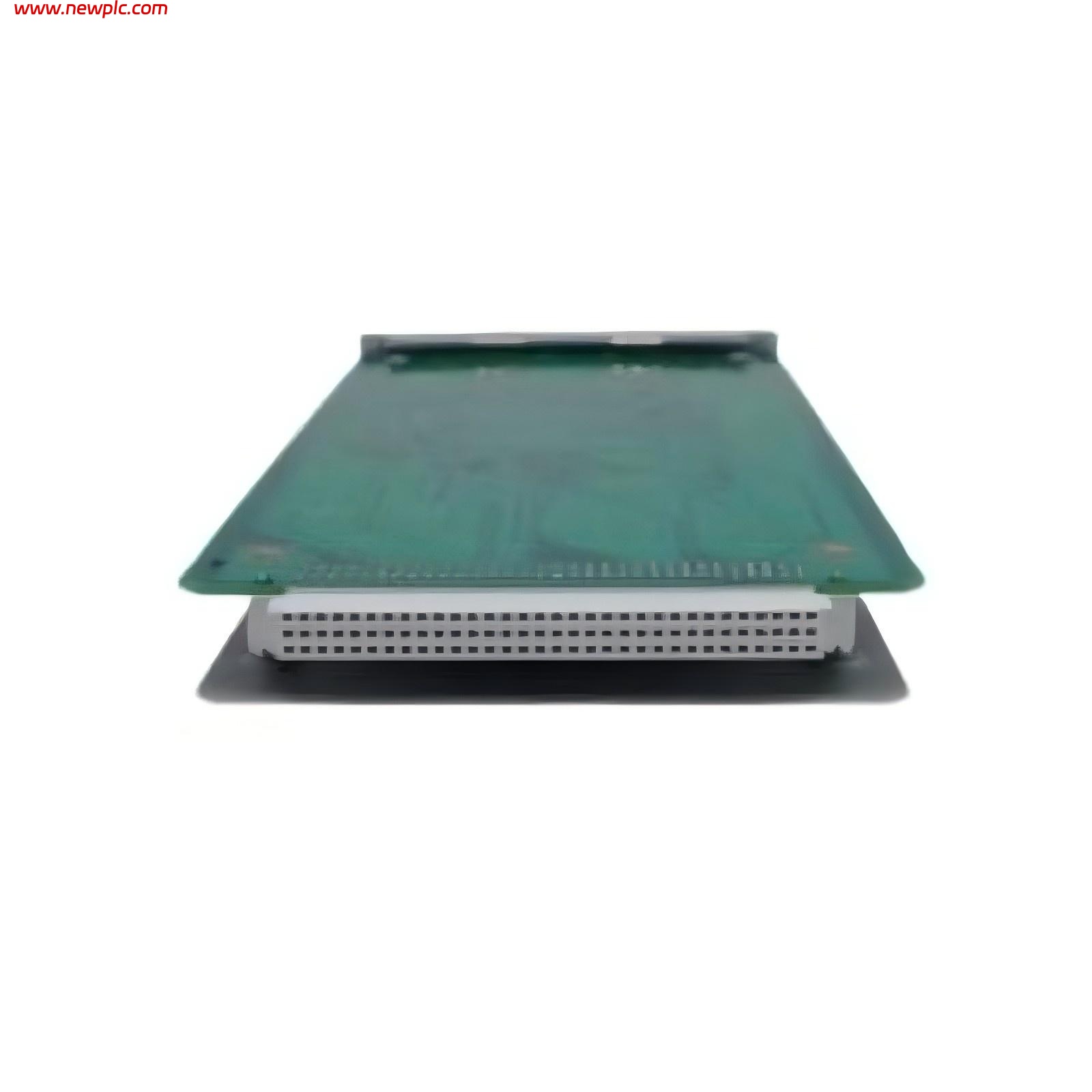

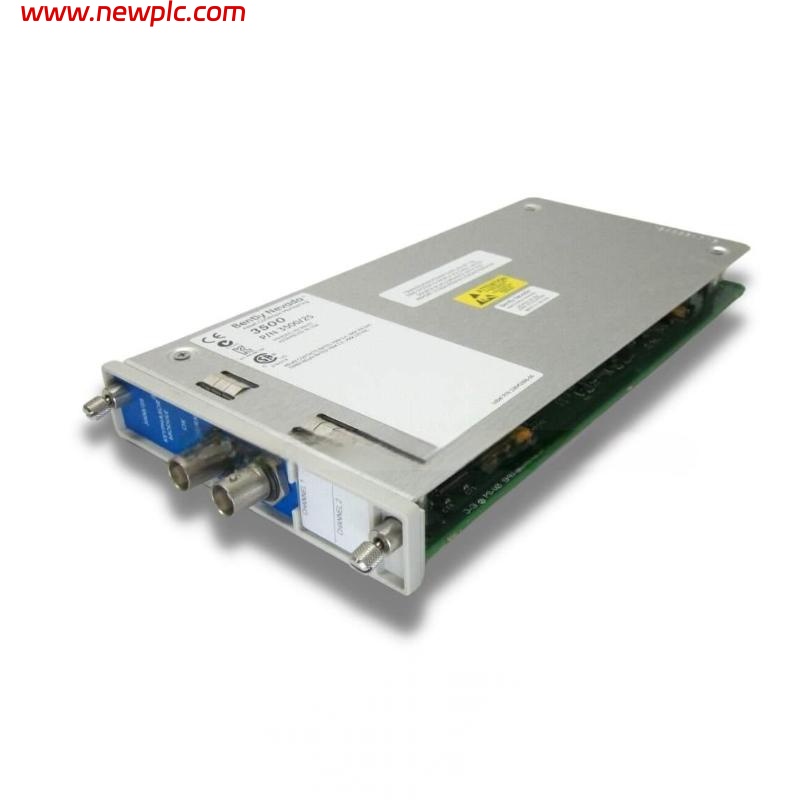

| Product Name | Bently Nevada 3500/25-02-01-01 Enhanced Bond Phase Module |
| Part Number | 149369-02 |
| Module Type | Enhanced Bond Phase Module |
| System Compatibility | Bently Nevada 3500 Monitoring System |
| Input Channels | Dual-channel (2 independent channels) |
| Signal Type | Shaft position and Keyphasor signals |
| Power Consumption | 5.8 W typical |
| Communication Interface | Internal 3500 rack communication bus |
| Alarm Modes | Configurable Alert and Danger thresholds |
| Operating Temperature | 0 to +65°C (32 to 149°F) |
| Storage Temperature | -40 to +85°C (-40 to 185°F) |
| Humidity | Up to 95% non-condensing |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What is the main function of the 3500/25-02-01-01 module?
A1: The module measures shaft position and Keyphasor signals in rotating machinery, providing precise phase analysis and speed synchronization.
Q2: What is the difference between the 3500/25-02 and 3500/25-01 versions?
A2: The 3500/25-02 version offers enhanced signal processing speed and synchronization accuracy, making it suitable for critical rotating machinery applications.
Q3: Does this module support dual-channel input?
A3: Yes, it features two independent input channels for simultaneous monitoring of multiple Keyphasor or shaft position signals.
Q4: How are alarm thresholds configured?
A4: Alert and Danger thresholds are configured via the system software to match specific operational requirements.
Q5: How is the module installed?
A5: It is installed within the 3500 rack and communicates through the backplane bus.
Q6: What is the operating temperature range?
A6: The module operates from 0 to +65°C, suitable for most industrial environments.
Q7: What are the module’s dimensions and weight?
A7: The dimensions are 119.9 x 24.4 x 256.5 mm, and the weight is 0.34 kg.
Q8: In which industries is this module commonly used?
A8: It is widely used in power generation, petrochemical, metallurgy, paper, and pharmaceutical industries for rotating machinery condition monitoring.
