Technical Specifications
| Item | Specification |
|---|---|

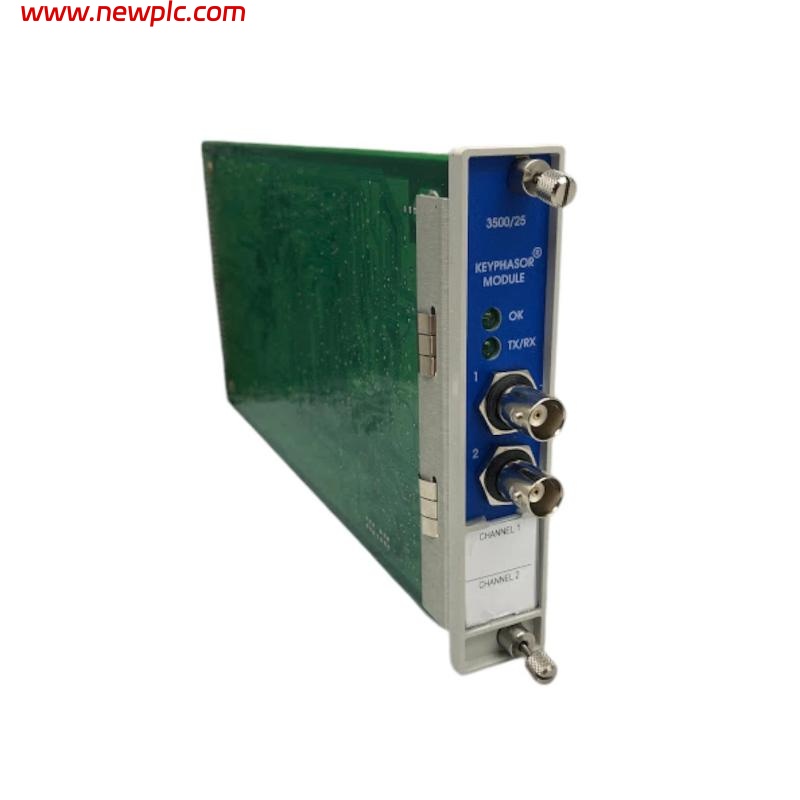

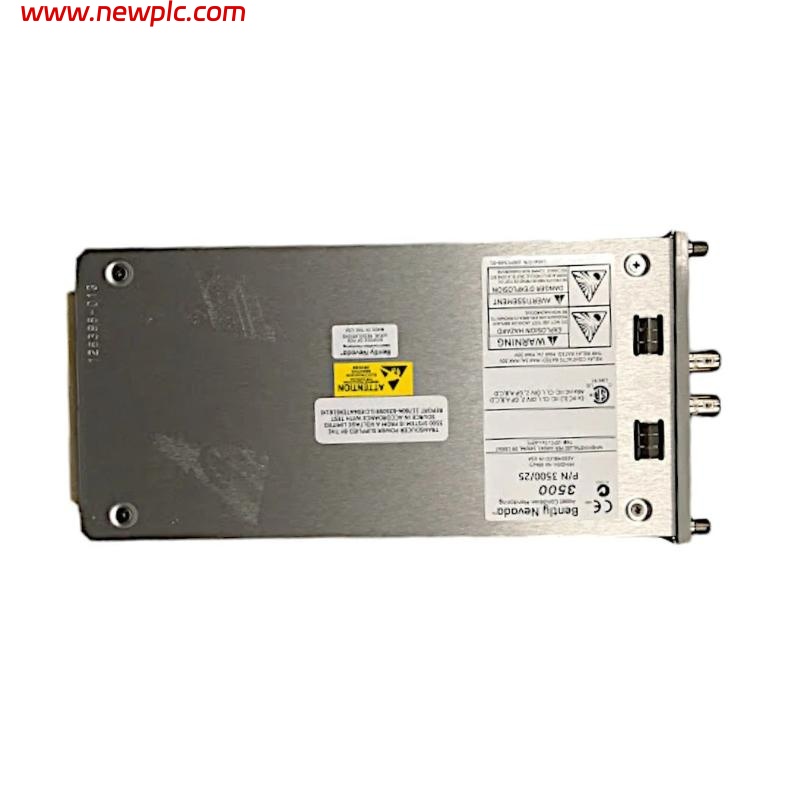

| Model | Bently Nevada 3500/25-02-01-CN |
| Product Type | Enhanced Bond Phase (Keyphasor / Phase Reference) Module |
| Channel Count | 2 channels (dual bond phasor) |
| Input Signal | Proximity probe / magnetic pickup / sensor for phasor mark detection |
| Output Signal | Digital keyphasor / phase reference pulses |
| Redundancy Capability | Can support redundant or TMR (Triple Modular Redundancy) configuration |
| Compatibility | Fits Bently Nevada 3500 series racks / monitoring systems |
| Operating Temperature | –40 °C to +90 °C (typical industrial range) |
| Storage Temperature | –50 °C to +100 °C |
| Power Supply | Supplied from module backplane (rack power bus) |
| Weight | 0.34 kg |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Mounting / Protection | Rack plug-in module, IP20 class |
FAQ
FAQ
Q1: What is the function of the Bently Nevada 3500/25-02-01-CN module?
A1: It provides accurate phase reference signals (Keyphasor) to monitor machine speed and vibration phase.
Q2: How many channels does this module have?
A2: It has two independent channels for phase reference input.
Q3: Can it be used with redundant systems?
A3: Yes, it supports redundant and TMR configurations for high reliability.
Q4: What types of sensors are compatible?
A4: It can accept inputs from proximity probes or magnetic pickups.
Q5: What is the operating temperature range?
A5: The module operates from –40 °C to +90 °C.
Q6: What are its dimensions and weight?
A6: Dimensions are 119.9 x 24.4 x 256.5 mm, and the weight is 0.34 kg.
Q7: How is the module powered?
A7: Power is supplied through the backplane of the Bently Nevada 3500 rack.
Q8: What is its protection rating?
A8: It has IP20 protection, suitable for installation inside control cabinets.
