Technical Specifications
| Item | Specification |
|---|---|
| Product Model | Bently Nevada 3500/25-03-01-01 |

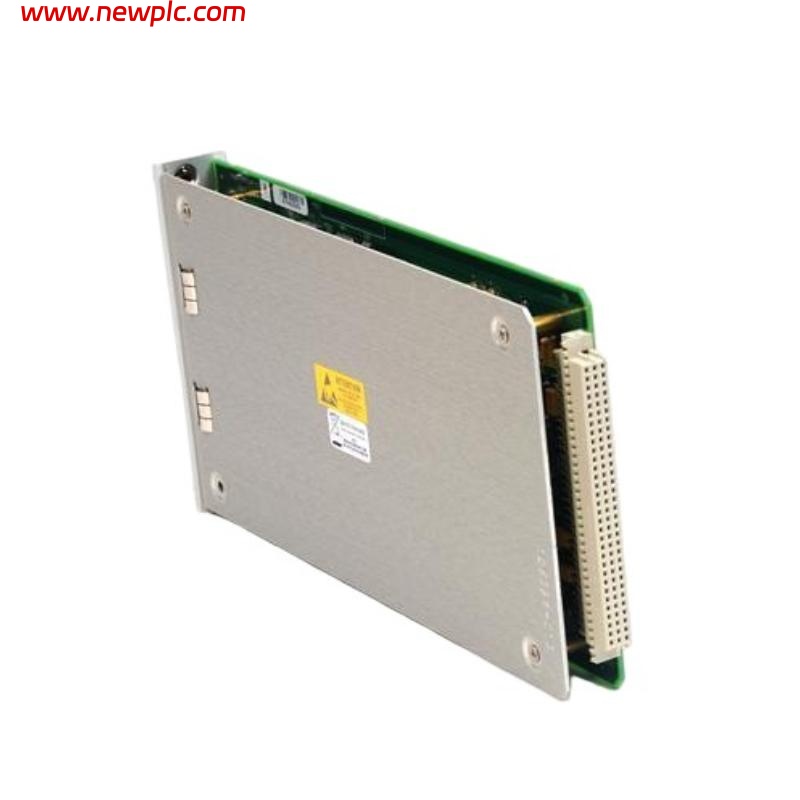

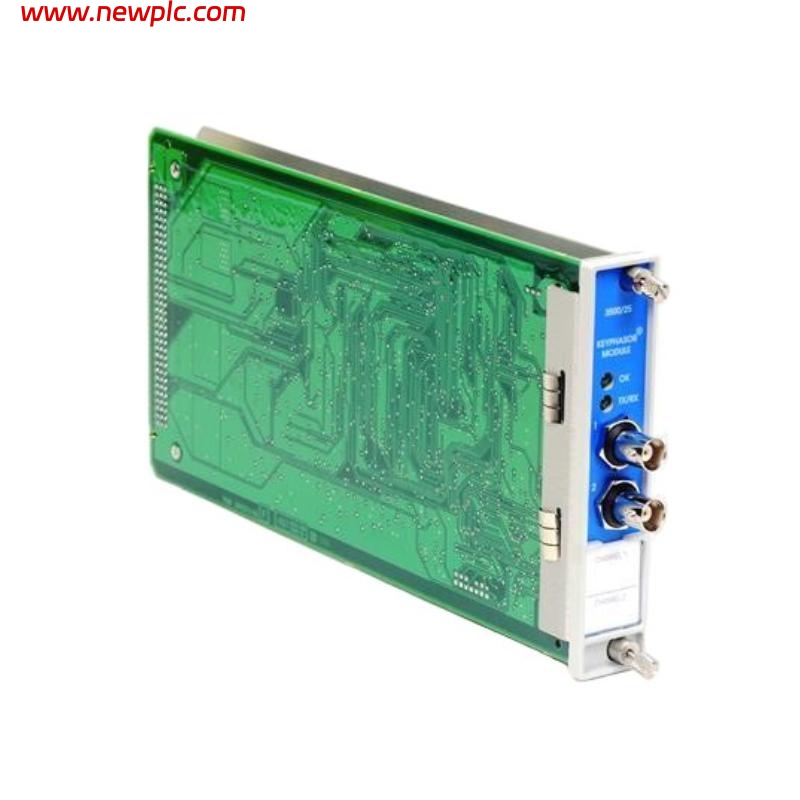

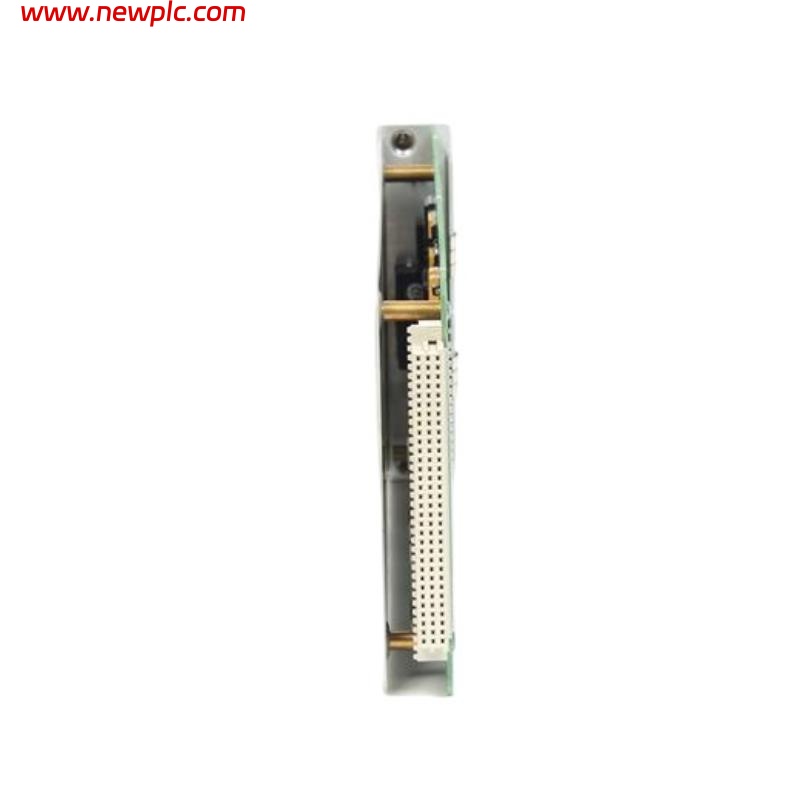

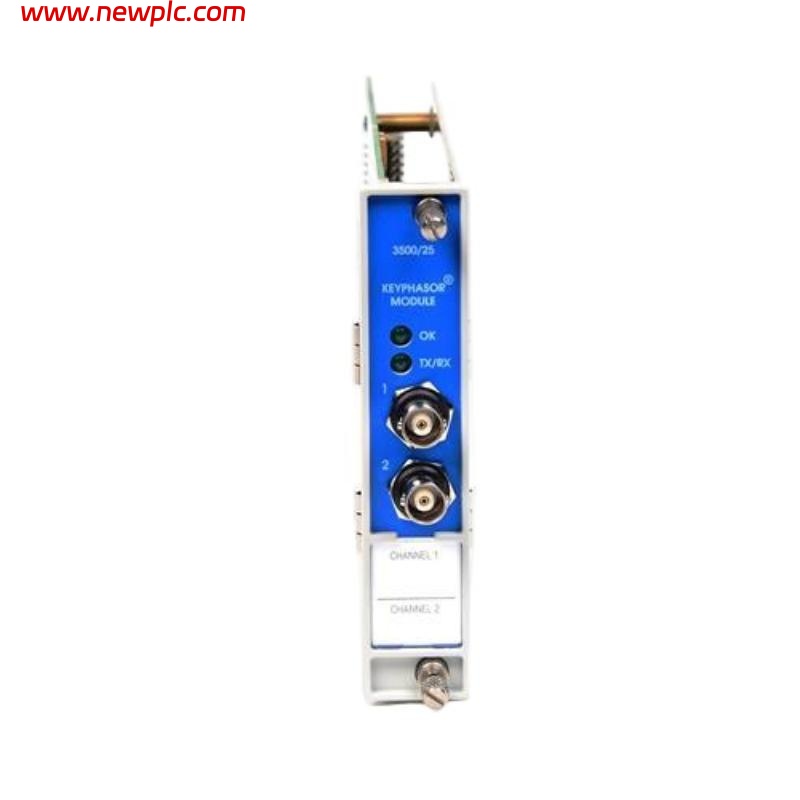

| Product Type | Enhanced Bond Phase Module |
| Channel Type | Dual-channel Keyphasor / Phase Reference |
| Input Signal | Proximity probe or magnetic pickup |
| Output Signal | Digital phase reference pulse |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Redundancy Support | Yes, supports redundant configuration |
| Power Supply | Supplied via 3500 rack backplane |
| Operating Temperature Range | –40 °C to +90 °C |
| Storage Temperature Range | –50 °C to +100 °C |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
| Mounting Type | Plug-in rack module |
| Protection Level | IP20 (for control cabinet use) |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 3500/25-03-01-01 module?
A1: It provides accurate phase reference (Keyphasor) signals for machinery vibration and speed monitoring.
Q2: How many channels are available on this module?
A2: It supports two independent phase reference input channels.
Q3: Can the module operate in redundant configurations?
A3: Yes, it is designed to support redundant and TMR (Triple Modular Redundancy) systems.
Q4: What types of sensors can be used with this module?
A4: It accepts inputs from proximity probes or magnetic pickups.
Q5: What is the module’s operating temperature range?
A5: It operates within a range of –40 °C to +90 °C.
Q6: What are the physical dimensions and weight?
A6: The module measures 119.9 x 24.4 x 256.5 mm and weighs is 0.34 kg.
Q7: How is power supplied to the module?
A7: Power is provided through the 3500 system rack backplane.
Q8: What is the protection rating of the module?
A8: The protection level is IP20, suitable for control cabinet installation.
