Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 3500/25 126398-01H |

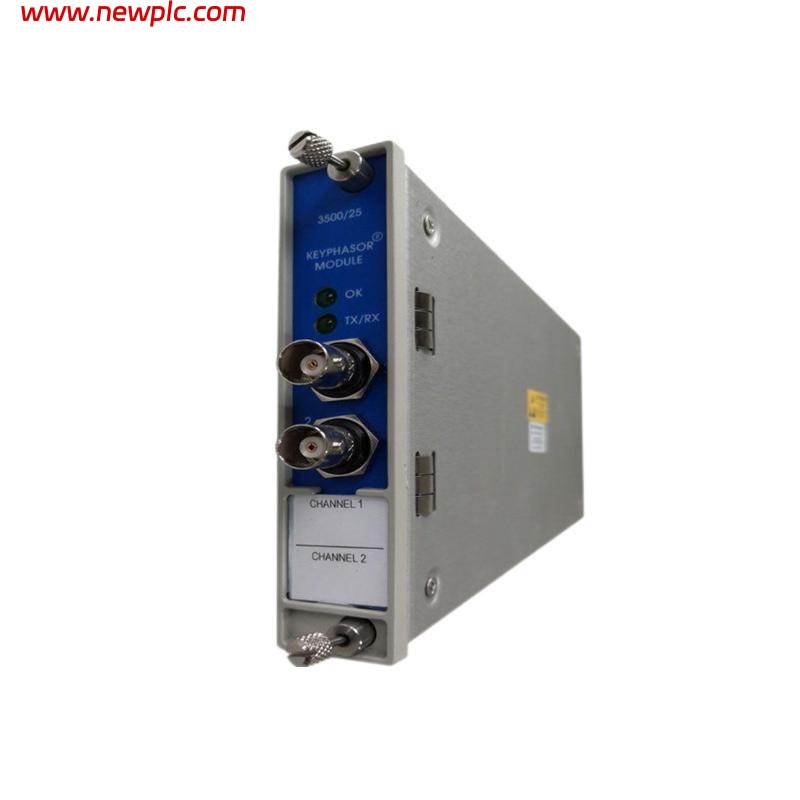

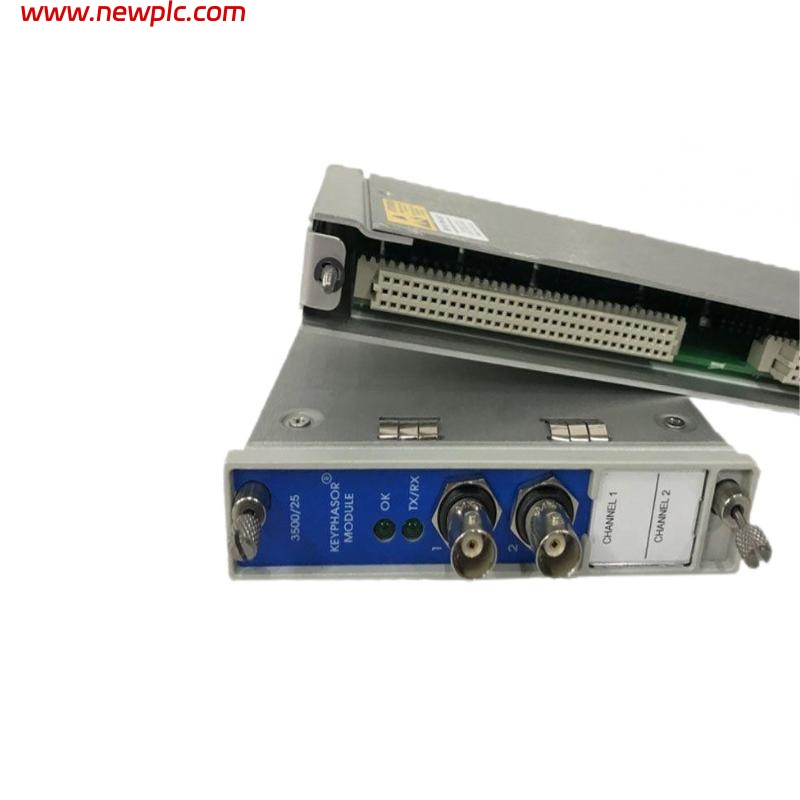

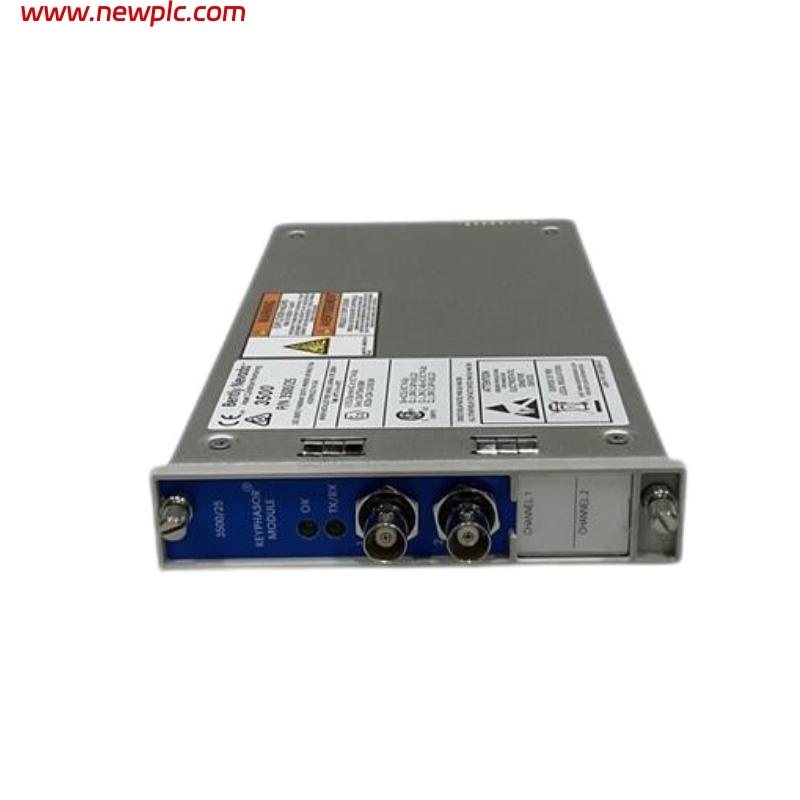

| Product Name | Enhanced Key Phase Module |
| System Compatibility | Bently Nevada 3500 Series |
| Function | Provides keyphasor signal input for phase and rotation reference |
| Channel Count | Dual-channel input |
| Input Type | TTL signal from proximity probes |
| Frequency Range | 1 Hz to 20 kHz |
| Output | Keyphasor reference signal to other modules |
| Slot Position | Occupies one slot in the rack |
| Redundancy | Supports redundant module configuration |
| Configuration | Via 3500 configuration software |
| LEDs | Channel OK, Alarm, Module OK indicators |
| Operating Temp. | 0°C to +65°C |
| Storage Temp. | -40°C to +85°C |
| Relative Humidity | 95% non-condensing |
| Mounting Method | Mounted in 3500 rack |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What is the primary purpose of the 3500/25 module?
A1: It captures keyphasor signals used as references for phase analysis and rotation direction.
Q2: Does the module support dual-channel input?
A2: Yes, it supports two independent keyphasor inputs.
Q3: What is the usual source of the input signal?
A3: Typically from proximity probes or sensors generating TTL keyphasor signals.
Q4: Is redundancy supported?
A4: Yes, it allows redundant installation with two 3500/25 modules.
Q5: Can the module function stand-alone?
A5: No, it works as part of the overall 3500 system.
Q6: What is the frequency range of the input?
A6: The supported frequency range is 1 Hz to 20 kHz.
Q7: Is configuration required during installation?
A7: Yes, configuration is done via the 3500 configuration software.
Q8: Is hot-swapping supported for this module?
A8: Yes, the module supports hot-swapping in the rack.
