Technical Specifications
| Parameter | Description |
|---|---|

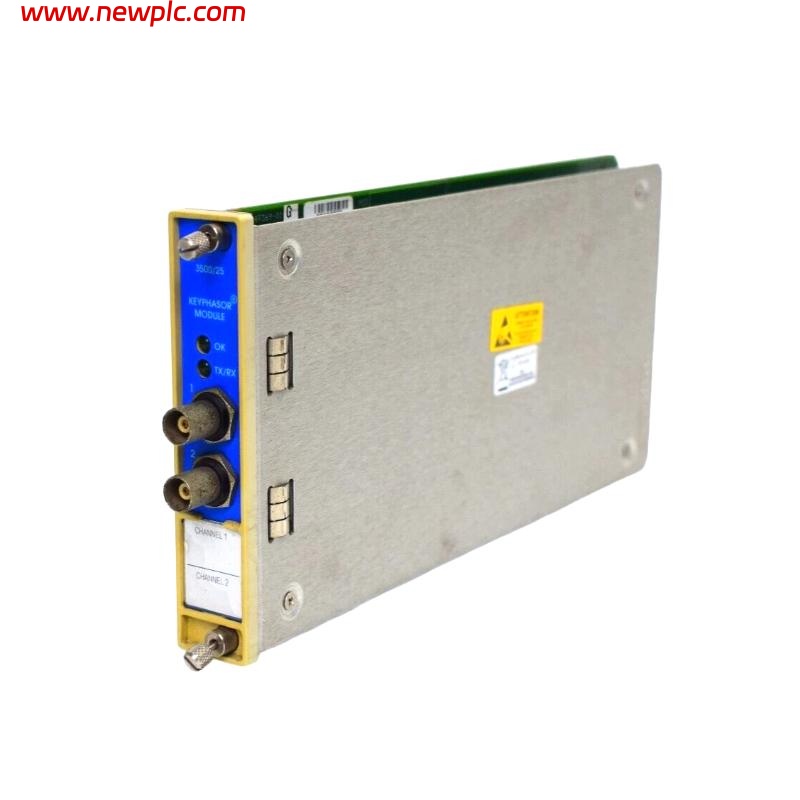

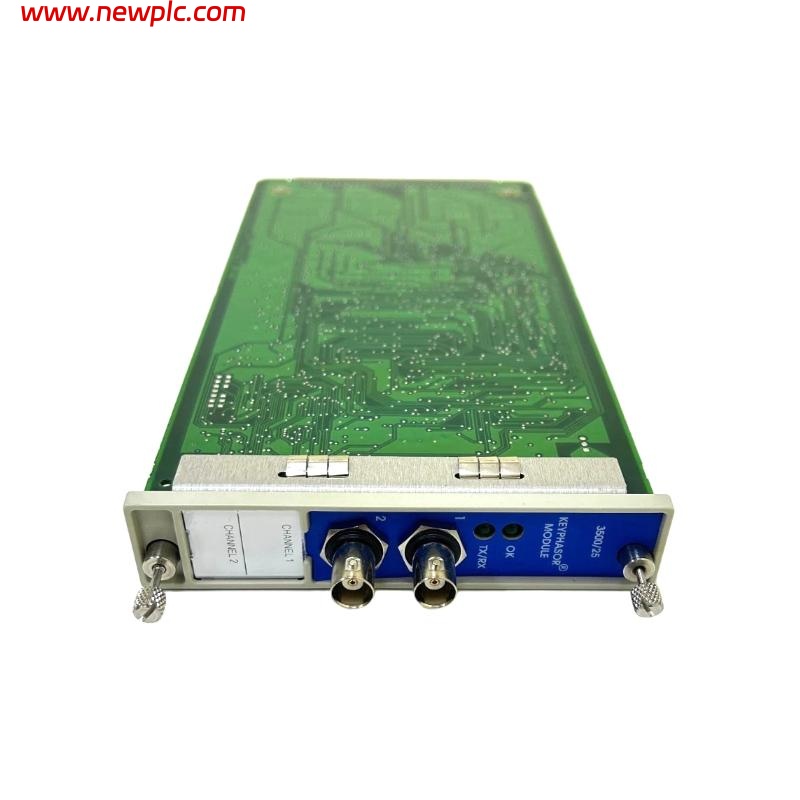

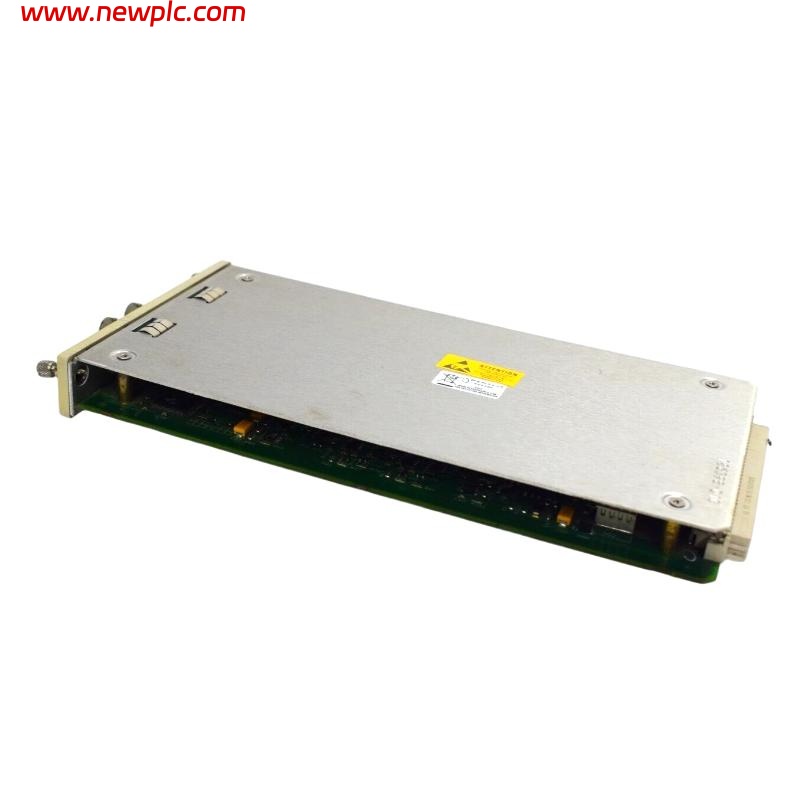

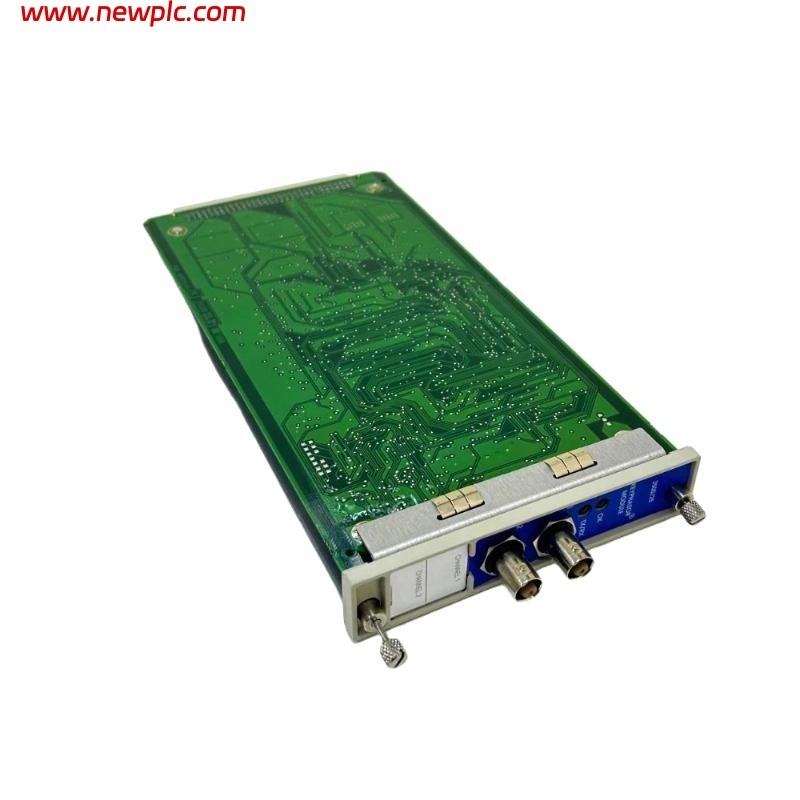

| Model | 3500/25 149369-01 + 125800-01 |
| Product Type | Enhanced Keyphasor Module |
| Input Signal Type | AC Current/Voltage Signal |
| Output Signal Type | 24V DC Logic Output |
| Operating Temperature Range | -40℃ to +85℃ |
| Operating Voltage | 24 V DC |
| Current Consumption | 50 mA max |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
| Response Time | 1 ms |
| Protection Class | IP67 |
| Connection Terminals | 5 Terminals |
| Max Input Voltage | 10 V RMS |
| Max Input Current | 5 A RMS |
| Compatible Devices | Compatible with Bently Nevada 3500 system |
FAQ
FAQ
Q1: What is the maximum input voltage of the enhanced keyphasor module?
A1: The maximum input voltage is 10 V RMS.
Q2: What is the maximum input current of this module?
A2: The maximum input current is 5 A RMS.
Q3: What is the operating temperature range of this module?
A3: The operating temperature range is -40℃ to +85℃.
Q4: What is the current consumption of this module?
A4: The current consumption is 50 mA max.
Q5: What is the response time of the module?
A5: The response time is 1 millisecond.
Q6: What is the protection class of this module?
A6: The protection class is IP67, suitable for harsh environments.
Q7: What devices is this module compatible with?
A7: This module is compatible with the Bently Nevada 3500 system.
Q8: What types of input signals does this module support?
A8: This module supports AC current and voltage signals.
