Technical Specifications
| Parameter | Specification |
|---|---|

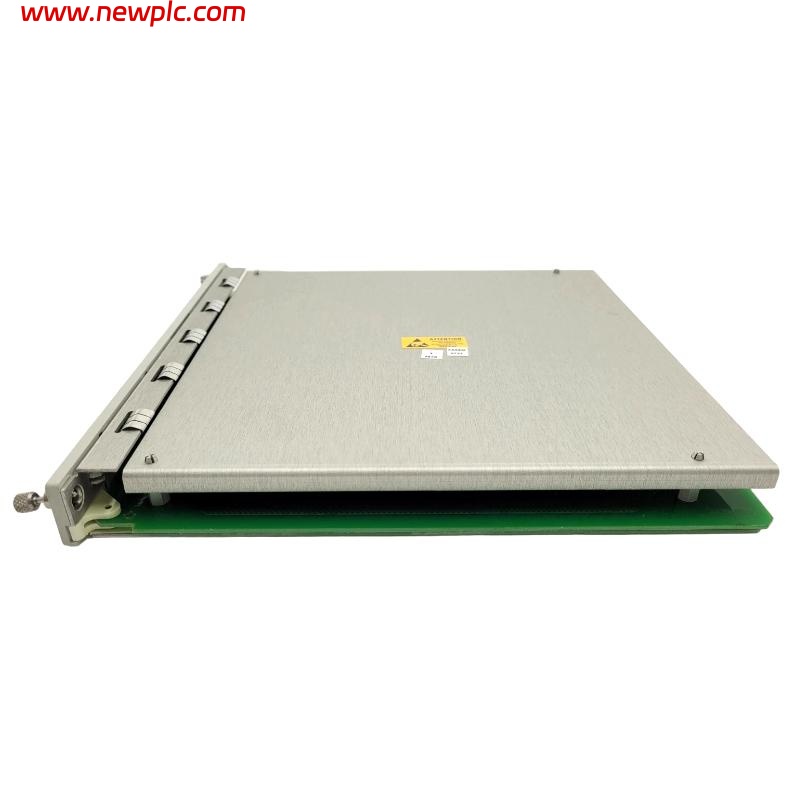

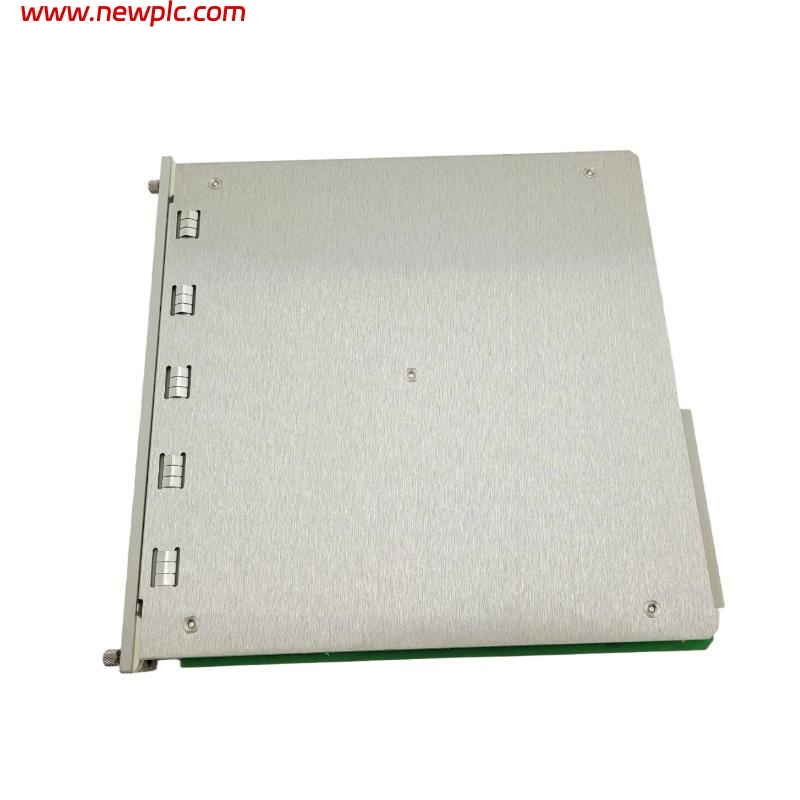

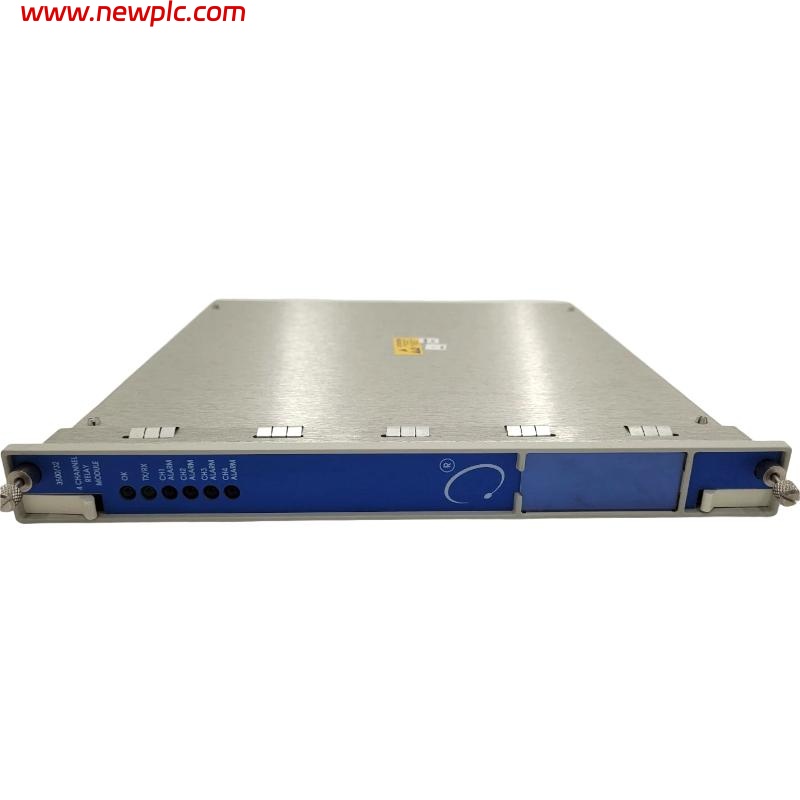

| Model | Bently Nevada 3500/32-01-CN |
| Type | 4-Channel Relay Module |
| Function | Provides four independent relay outputs for machinery monitoring and protection systems |
| Relay Type | Electromechanical relays |
| Channels | 4 |
| Contact Rating | 2 A at 30 VDC / 0.5 A at 120 VAC |
| Activation Time | <10 ms typical |
| Signal Input | Compatible with 3500 monitoring system outputs |
| Diagnostic Features | Self-test and status indication |
| Protection Features | Overvoltage and short-circuit protection |
| Communication Interface | Internal 3500 system bus |
| Power Consumption | <5 W typical |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack or panel mount |
| Cooling Method | Natural convection |
| Compliance | CE and UL certified |
| Dimensions (HxWxD) | 241 × 24.4 × 242 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 3500/32-01-CN module?
A1: This module provides four isolated relay outputs to interface monitoring system alarms and control functions for machinery protection.
Q2: What types of signals can trigger the relays?
A2: The relays respond to outputs from the 3500 monitoring system, including digital and analog alarm signals.
Q3: How quickly do the relays operate after receiving a signal?
A3: The relays have a typical activation time of less than 10 milliseconds, ensuring rapid response to abnormal conditions.
Q4: Does the module include diagnostic capabilities?
A4: Yes, it has built-in self-test and status indicators to verify proper relay operation and system integrity.
Q5: What protection features are implemented in this module?
A5: The module includes overvoltage and short-circuit protection to maintain safe and reliable operation.
Q6: How is this module integrated into the 3500 monitoring system?
A6: It connects via the internal 3500 system bus, allowing coordinated relay operation with other modules in the system.
Q7: In which applications is this module typically used?
A7: It is commonly applied in turbine, generator, and other rotating machinery protection systems that require multiple relay outputs for alarms and control.
Q8: How does the 4-channel relay module enhance system reliability?
A8: By providing isolated, fast-acting relay outputs with built-in diagnostics, it ensures timely response to faults and increases overall system safety and reliability.
