Technical Specifications
| Item | Specification |
|---|---|

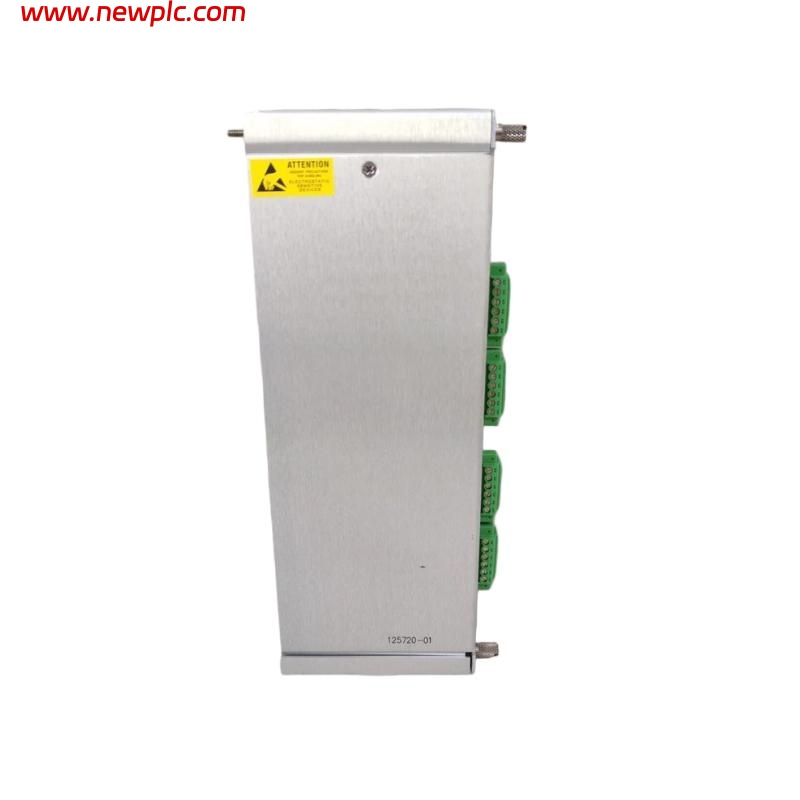

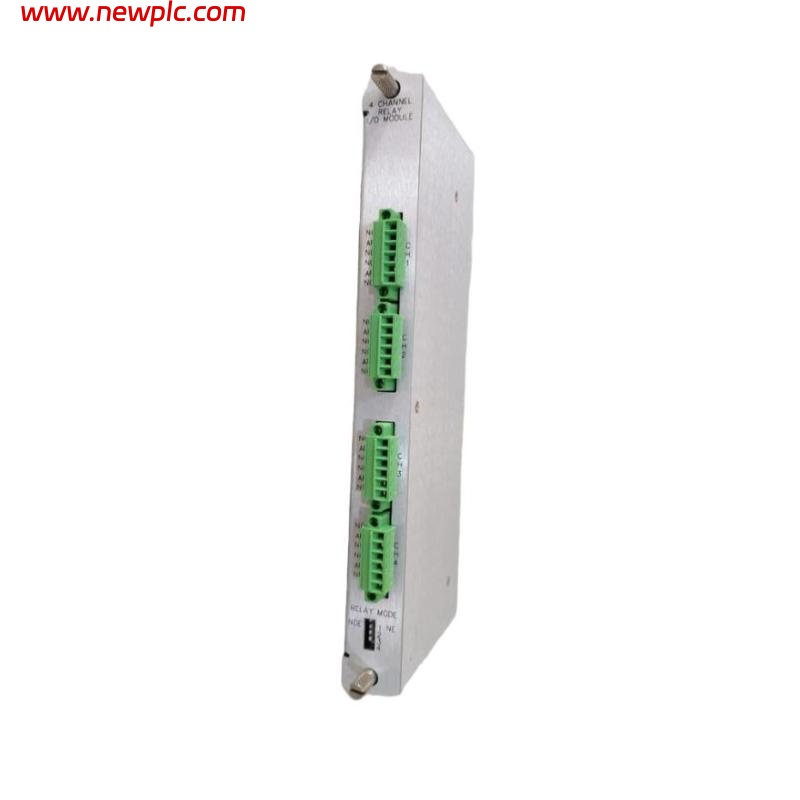

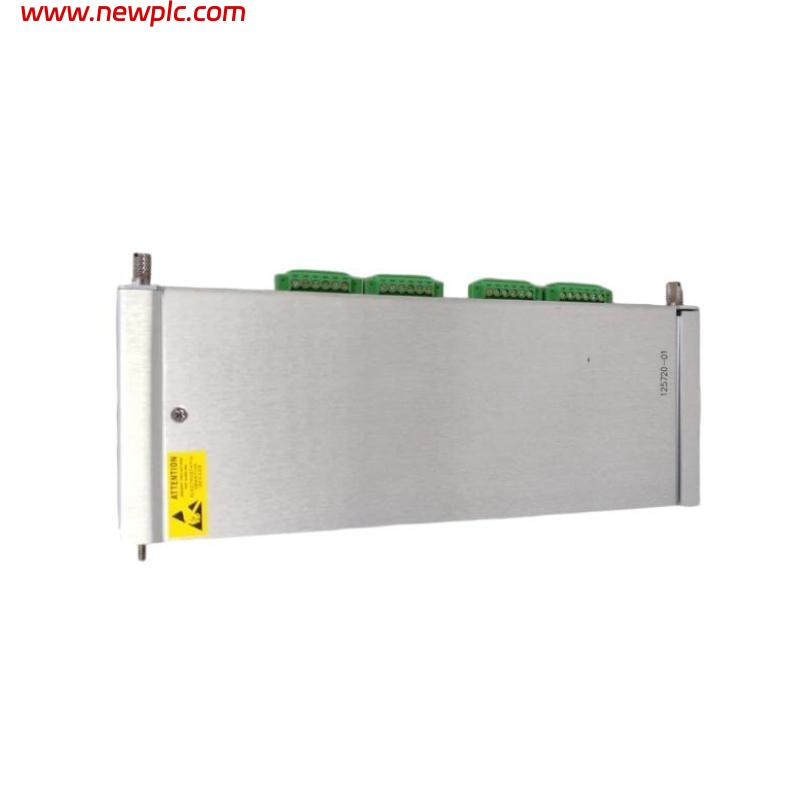

| Product Name | Bently Nevada 3500/32 125720-01 4-Channel Relay Module |
| Type | 4-Channel Relay Module |
| Number of Channels | 4 independent relay output channels |
| Relay Type | Configurable as alarm, danger, or system trip |
| Contact Rating | 5 A @ 24 VDC / 5 A @ 120 VAC |
| Response Time | < 5 ms |
| Output Mode | Normally Open / Normally Closed (configurable) |
| Electrical Isolation | Channel-to-channel isolation |
| Mounting | Rack-mounted |
| Compatibility | Designed for Bently Nevada 3500 Monitoring System |
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
| Operating Temperature | 0 to +65 ℃ |
| Storage Temperature | -40 to +85 ℃ |
| Relative Humidity | 95% non-condensing |
FAQ
FAQ
Q1: What is the main function of the 3500/32 125720-01 module?
A1: It provides four relay outputs for alarm and trip signal control in the monitoring system.
Q2: How many relay output channels does the module have?
A2: It has 4 independent relay output channels.
Q3: Can the relay outputs be configured?
A3: Yes, they can be configured as alarm, danger, or system trip signals.
Q4: What is the contact rating of the relays?
A4: Each relay contact is rated at 5 A @ 24 VDC or 5 A @ 120 VAC.
Q5: What is the response time of the module?
A5: The response time is less than 5 milliseconds for fast action.
Q6: What are the dimensions and weight of the module?
A6: The dimensions are 241 x 24.4 x 242 mm, and the weight is 0.7 kg.
Q7: How is the module installed?
A7: It is rack-mounted and inserted into the Bently Nevada 3500 monitoring system rack.
Q8: Does the module provide electrical isolation?
A8: Yes, each channel is electrically isolated to enhance safety and reliability.
