Technical Specifications
| Parameter | Specification |
|---|---|

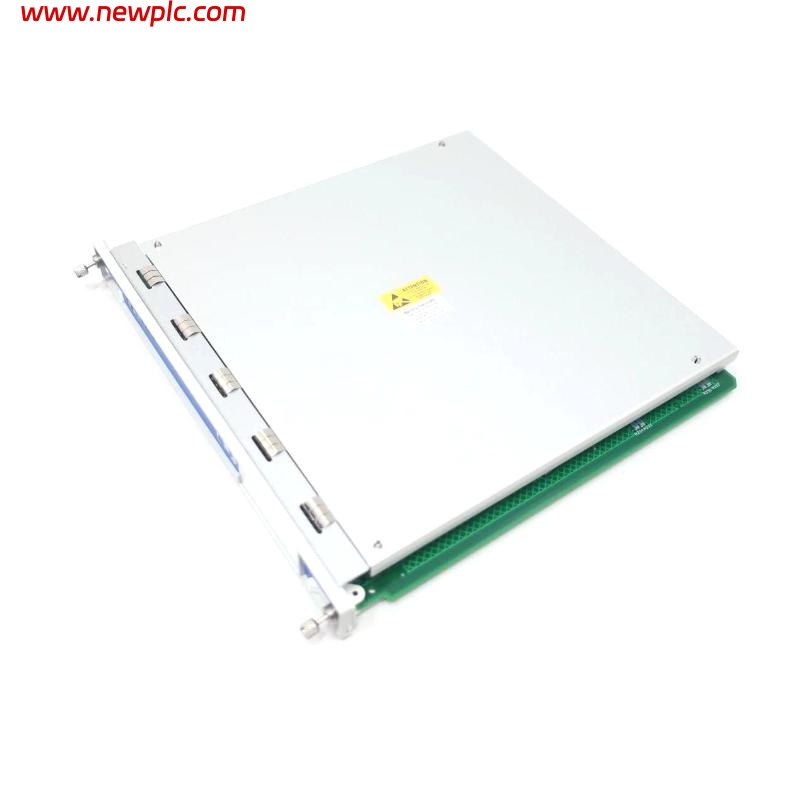

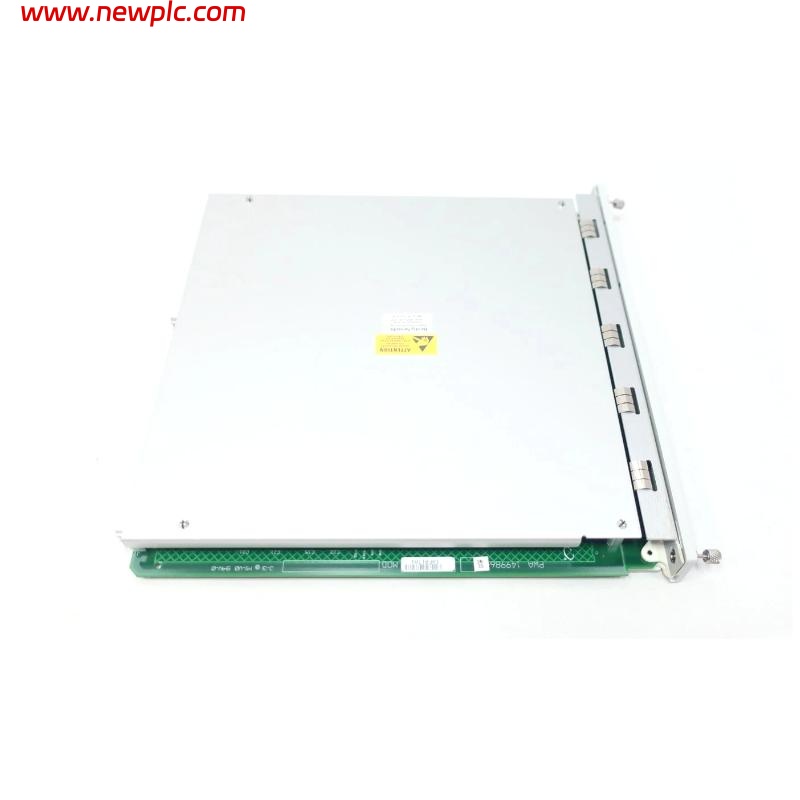

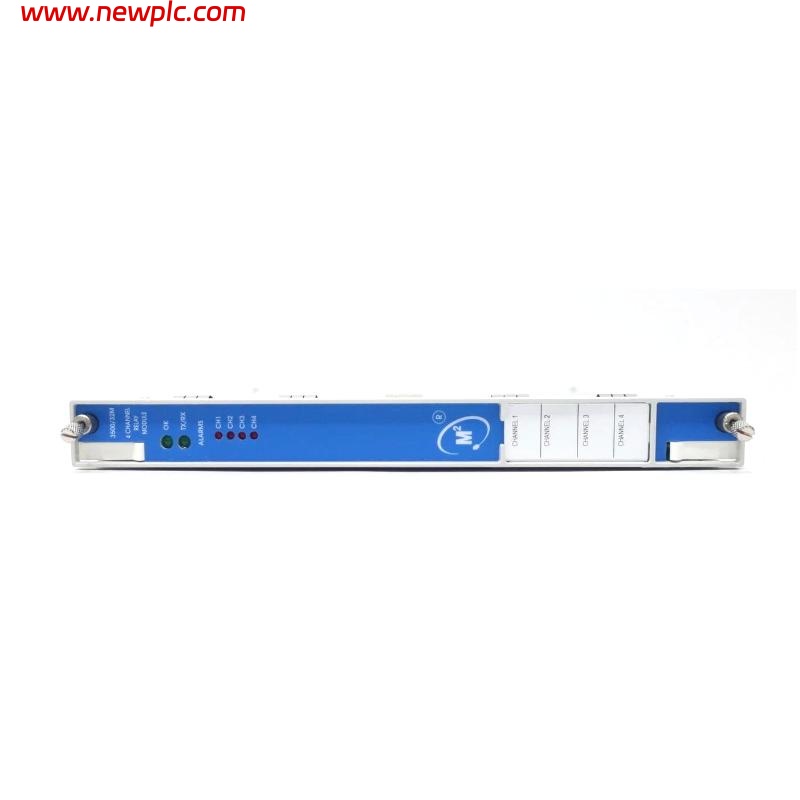

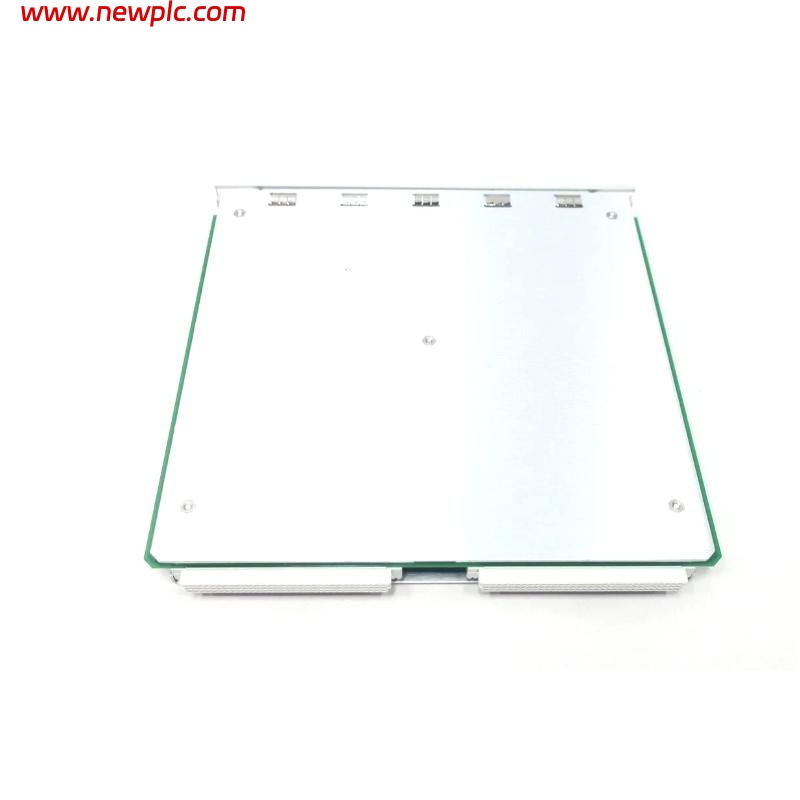

| Model | 3500/32M 149986-02 |
| Type | 4-Channel Relay Control Module |
| Channels | 4 |
| Power Consumption | 5.8 W typical |
| Dimensions | 241 mm (H) x 24.4 mm (W) x 242 mm (D) |
| Weight | 0.7 kg |
| Programming | Configurable using 3500 Rack Configuration Software |
| Relay Logic | Alarm Drive Logic with configurable AND/OR logic |
| Compatibility | Fits any slot to the right of the Transient Data Interface Module in 3500 rack systems |
FAQ
FAQ
-
Q1: What types of alarms can the 3500/32M relay module handle?
A1: It can handle Alert, Danger, Not-OK statuses, and individual PPL outputs from any monitor channel. -
Q2: Can each relay channel be configured independently?
A2: Yes, each of the four relay channels can be independently programmed with different alarm logic. -
Q3: What logic types are supported for relay activation?
A3: Both AND and OR logic are supported for flexible alarm configuration. -
Q4: How is the module integrated into the 3500 rack system?
A4: It can be installed in any slot to the right of the Transient Data Interface Module. -
Q5: What is the typical power consumption of the module?
A5: The typical power consumption is 5.8 watts. -
Q6: How can I program the relay logic?
A6: Relay logic is programmed using the 3500 Rack Configuration Software. -
Q7: What are the physical dimensions and weight of the module?
A7: Dimensions are 241 x 24.4 x 242 mm and it weighs 0.7 kg. -
Q8: Is the module compatible with all 3500 Series monitors?
A8: Yes, it is compatible with all standard 3500 Series monitoring modules when installed in the proper rack slot.
